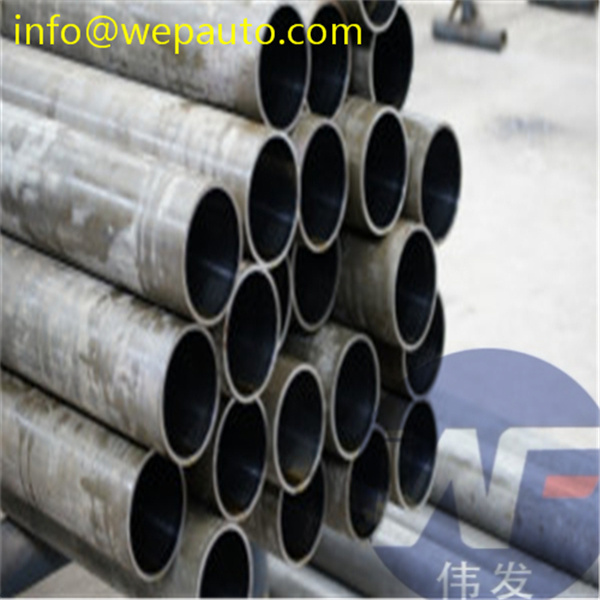

St52 Test Tube Cylinder for Construction Machinery Hydraulic Cylinder

Name: St52 Test Tube Cylinder for Construction Machinery Hydraulic Cylinder
Brand: tool-buy.com
SKU: 809111615
Availability: InStock
Rating: 4.6 (77 reviews)

Price:	US $ 1-1.5KG
Min Order:	100KG
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Suzhou Weipeng Precision Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	HT100*121
Model Number:	DIN2391h8 Honed Tube
Steel Grade:	St52.3, 1020, Ck45, 4140 , E355,4130, Stainless St
ID:	30mm-320mm
Length:	7m
Straightness:	0.5/1000mm
Roughness(Ra):	0.2-0.4um

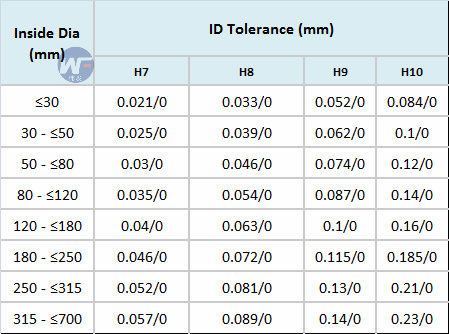

Tolerance Int:	ISO H8
Type:	Cold Drawn, Cold Rolling, Honed
Conservation:	Anti Rust Oiled Inside, Plastic Caps in Both Ends
Delivery Detail:	20-40days
Structure:	Piston Cylinder
Power:	Hydraulic
Standard:	Standard
Pressure Direction:	Double-acting Cylinder
Material:	Carbon Steel
Usage:	Cylinder

Product Description

Quick Details

Type: Hydraulic Accumulators
Model Number: din2391H8 honed tube
Brand Name: Weifa
Place of Origin: Jiangsu, China (Mainland)
Product Name: Honing Seamless Steel Pipe
Steel grade:: ST52.3, 1020, CK45, 4140 , E355,4130, Stainless Steel 304/316
ID:: 30mm-320mm
Length:: 7m
Straightness:: 0.5/1000mm
Roughness(Ra):: 0.2-0.4um
Tolerance INT:: ISO H8
Type:: cold drawn, cold rolling, honed
Conservation:: anti rust oiled inside and outside surface, plastic caps in both ends
Package:: bundle with steel strip and knitting strip, or wooden case.
Quality is Life of Enterprise. Your Satisfaction is Our Goal.
Company Capability

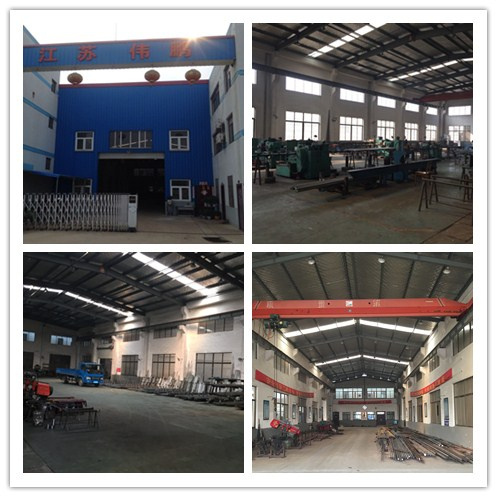

FACTORY SHOW
Established in the year 2009, we company owns modern and standard factory building, including three big workshop. Besides, we have a professional foreign trade team with the aim to export broad range of our products in the international market.

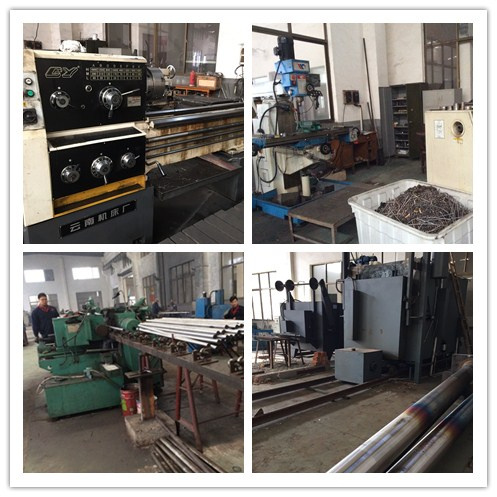

EQUIPMENT SHOW
We adopt advanced production technology and first-class processing equipments, such as heat treatment furnace, straightening machine, centerless grinding machine, polishing machine, as well as lathing and milling machine etc.


Main equipments:
a. Cold Drawing Machine          b. Honing Machine
c. Skving & Roller Burnishing Machine
d. Straightening Machine          e. Polishing Machine
f. Heat Treatment Furnace

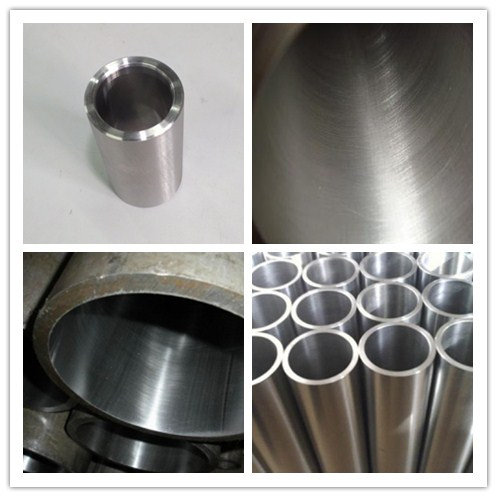

PRODUCT SHOW
Backed ourselves with the talented personnel, we have emerged as one of the leading firms indulged in offering superior quality piston rods. The vital parameters of piston rod such as the diameter tolerance, straightness, surface hardness, chrome layer thickness, as well as surface roughness all meet the industry standards.

PACKAGE
After rigorous inspection, the last important thing is safe packing. Anti rust oiled inside and outside surface, plastic caps in both ends.Then bundle with steel strip and knitting strip, or wooden case.

CONTACTS
Naturally,  the catalogue could only show the general styles of products, it is quite possible that you could not find the one you are interested in.
If you are interested in our company, please feel free to contact us:
SUZHOU WEIPENG PRECISION MACHINERY CO., LTD
ADD: No.98 Changjiang Road, National Hi-Tech District, 215010, Suzhou, P.R.C
Tel: 0086-512-68387269
Fax: 0086-512-68387269
http://www.wepauto.com
http://www.chromedbar.com

Suzhou Weipeng Precision Machinery Co., Ltd. is located in Suzhou, which is a foreign trade oriented economic developed city, adjacent to international port city Shanghai. Established in 2009, we're a manufacturing company specialized in the production of piston rod and linear shaft in various specifications, which is widely used in automation and cylinder. We also produce stainless steel grinding bar in the material SUS304 and SUS303.

We have rich experience in manufacturing process such as hardening, grinding, surface coating and polishing, include the lathing and milling of chrome plated bar. Each component produced in this production division meets the highest standards for exact manufacturing tolerance and surface quality.

Quality is the life of enterprise. We are committed to improving the quality of our products and services. Advanced equipment, skilled technical workers, scientific testing instrument and strict quality control, all of these factors is the key to our development and growth in the intense market competition.

Contact us now to realize the benefits of sourcing from our company. We insist to return new and old customers with best quality, fastest delivery time and most perfect after service. Your satisfaction is our goal.
