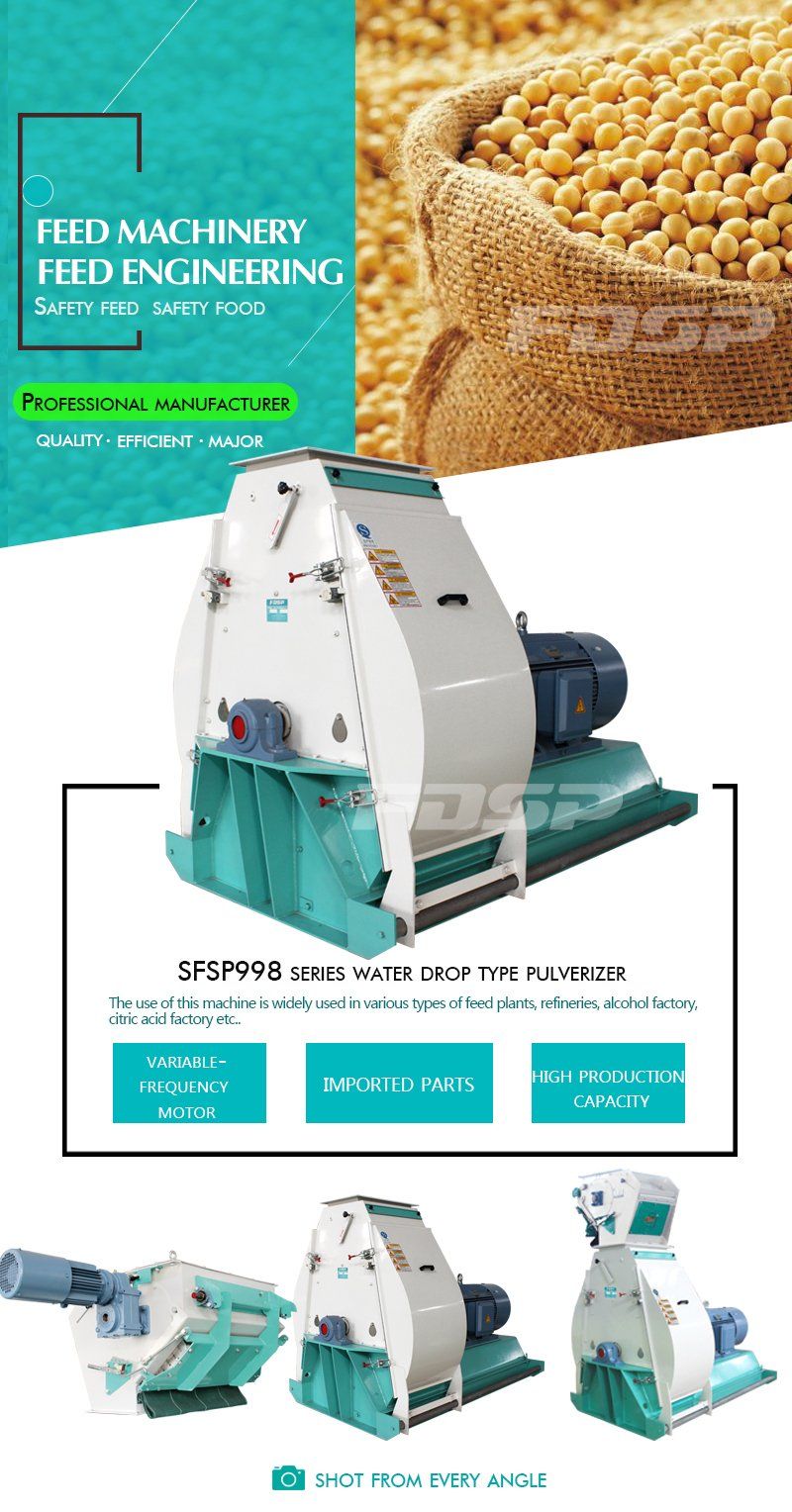

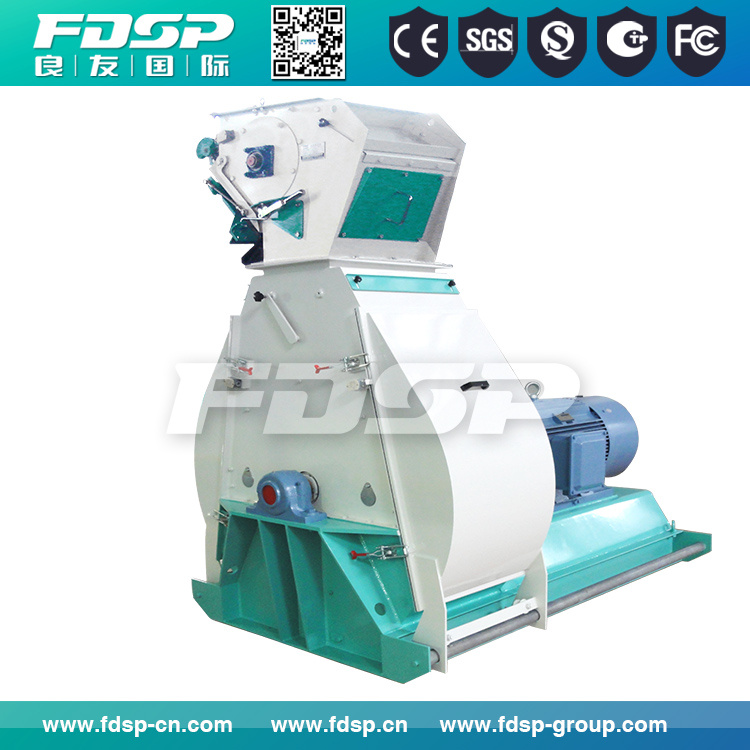

Stable Animal Feed Hammer Mi for Feed Pellet Making Plant
| Price: |
US $ 5000-30000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SFSP998 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bearing: |
SKF/NSK |
| Voltage: |
380V |
| Power: |
55-200kw |
| Motor Brand: |
Siemens |
| Type: |
Hammer Crusher |
| Drive: |
Electric |
| Crushing Degree: |
Fine Grinding Machine |
| Crushing Style: |
Grinding and Impact |
| Cutter Material: |
Hard Alloy |
| Compressive Strength (',For Crushing): |
100-250MPA |
| Object: |
Grain |
Product Description
Specifications
1.imported NSK bearing from Japan
2. secondary grinding structure
3.thickening and enlarging base
We are manufacturing grain hammer mill,corn hammer mill,maize hammer mill,whest hammer mill for exportation.
Features:
1.It is equipped with Siemens motor and SKF bearing.
2.Hammers are vacuum-welded by special alloy steel,which make it more durable.
3.Rotor is undertaken accurate dynamic balancing test, resulting in low noise, smooth running.
4.New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
5.Movable slide access door for easy operation and maintenance;
6.Specially design tear-circle grinding chamber and bottom U-shape second grinding
structure ensure high efficiency;
7.It is suitable for coarse-grinding and fine-grinding of various granular grain materials,
such as corn, sorghum, rice, wheat, soybean meal, cottonseed meal, rapeseed meal.
8.The fine grinding can realize 60mesh.
Technical parameters of feed grinding mill:
Parameters |
998-1 |
998-2 |
998-3 |
998-4 |
Speed Of Rotor (rpm) |
1480 |
1480 |
1480 |
1480 |
No. Of Beater (pc) |
54 |
72 |
108 |
144 |
Power (kw) |
55/75 |
90/110 |
110/132/160 |
180/200 |
Output (t/h) |
10-15 |
12-20 |
25-35 |
38-50
|
Re: The above indices are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter3mm, hole-opening rate not less than 33%.
Our Service
1.Customized design is available.
2. 24 hours online.We will reply your questions on time.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.
4.Our professional service includes: Free training, Guidance Installation and Debugging.
FAQ:
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Shanghai Airport. We will go to pick up.
3. Q: How long is your warranty time?
A: One year.After this period we will support you when needed. You will be welcome to contact us.
4. Q: Will you send engineers to install the plant?
A: Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the
commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: Yes, we have.our company has established business relationships with customers in Korea,
South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria,
Ethiopia, India, Bangladesh, Pakistan, Iran etc.
