| Prod Model: |
MJ250 |
| Name: |
Multi Rip Saw |
| Key Word: |
Rip Saw |
| Application: |
Cutting Wood |
| Warranty: |
1 Year |
| Voltage: |
380V, 3phase, 50Hz |
| Package: |
Plywood Box |
| Dimension: |
3076*1250*1600mm |
| Model: |
Mj250 |
| Brand: |
Hicas |
| Power: |
25.32kw |
| Type: |
Rip Saw |
| Layout: |
Vertical |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

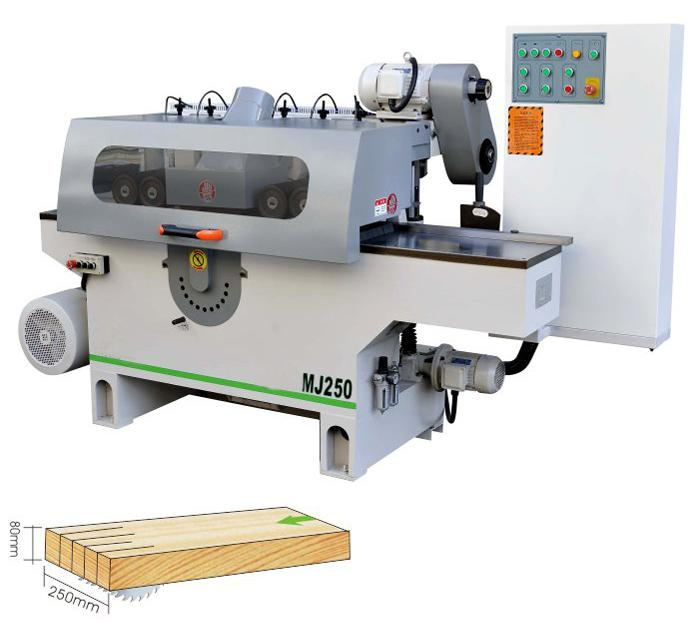

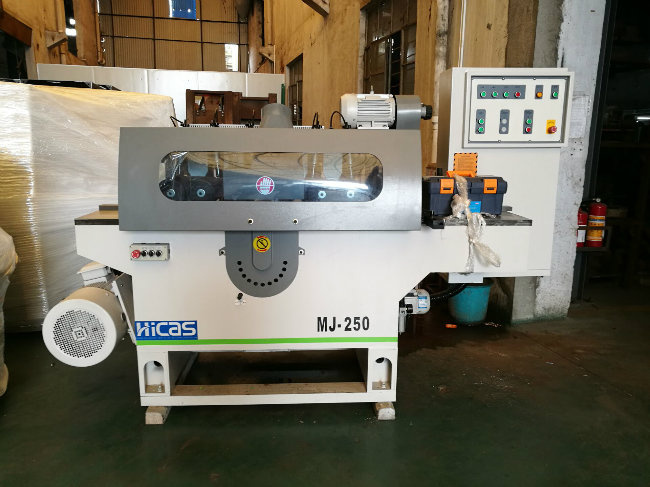

Woodworking Multi Rip Saw MJ250
Main Feature:
1) This saw blades with narrow rip make output efficient and profitable.
2) This machine planes wood at two surfaces to reach a certain thickness, and then divide with multiple rip saw blades into specified pieces
3) Using saw as planer, it has high machining quality.
4) Ideal equipment for molding laminated veneer, high precision and small panels.
| Specification | MJ250 |
| Max working width | 250mm |
| Max working thickness | 80mm |
| Feeding speed | 5-18m |
| Saw blade diameter | 300mm |
| Saw spindle motor | 22kw |
| Lifting motor | 0.37kw |
| Transportation system motor | 0.75kw |
| Total power | 25.32kw |
| Voltage | 380V, 3phase, 50Hz (standard) |
| Saw spindle speed | 4000r/min |
| Vapor pressure steam source | 0.5MPa |
| Saw spindle diameter | 50mm |
| Overall dimensions | 3076*1250*1600mm |
Quality Control:
1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.
Warranty:
1.one years warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; we will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.Customer has to pay the International Express cost and accommodation etc.
4.Warranty time starts after goods arrival in customer's site.
After-sales Service:
1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, etc.
3. Offer free training for operation & maintenance of equipment in our factory.
4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 100USD per day.
5. We will make return visit non-scheduled, in order to make assessment for after-sales service technician, make sure our service better and better.
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.
Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.
We have our own trade services company, currently has online service department, network development department and purchasing department.
We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
