| Prod Model: |
Q11F |
| Locking: |
with or Without |
| Color For The Handle Sleeve: |
Blue, Yellow, Red, Green, Black, etc |
| Place Of Origin: |
Wenzhou China |
| Investment: |
Casting Body and Cap |
| Casting: |
Precision Casting |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |

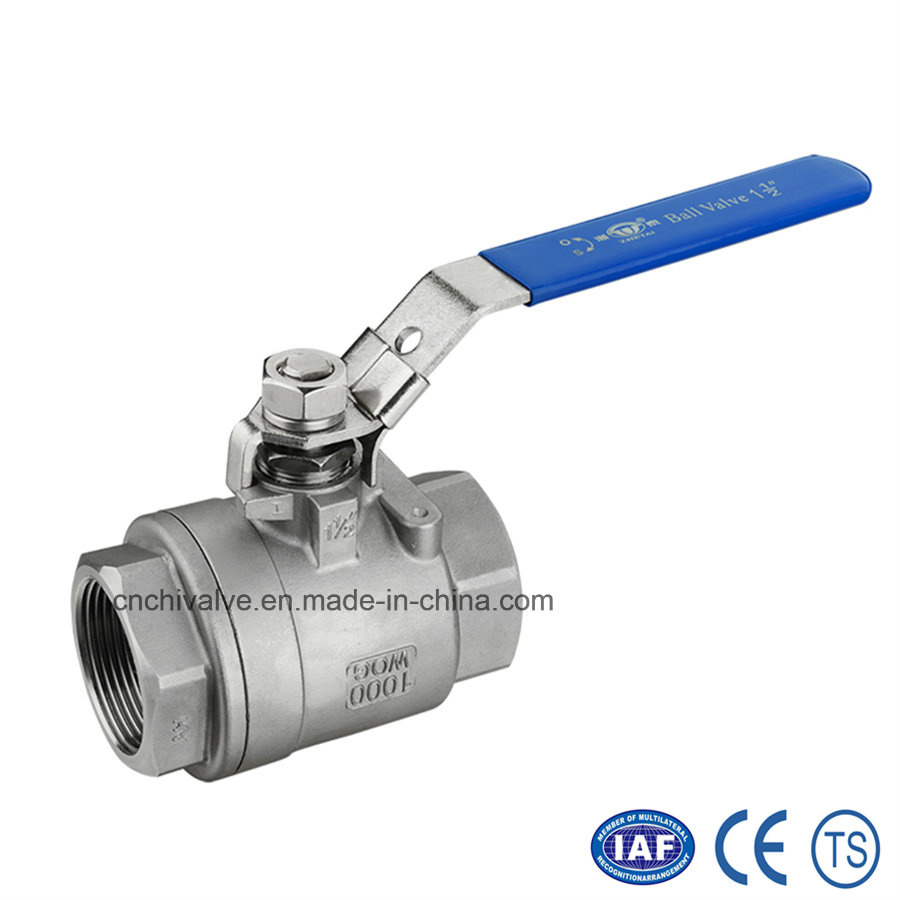

Product Description
The product description:Size: 1/4"--- 4"
Connection type:thread
Temperature Range:-29ºC~150ºC~300ºC ETC
Working pressure:1.6Mpa~6.4Mpa
Type of thread:NPT, BSPT, BSP, PT, DIN2999 ETC
Applicable medium:Water,oil,gas
Main Material| Part name | Materials |
| 1.Body | SS201 SS304 SS316 SS316L WCB |
| 2.Bonnet | SS201 SS304 SS316 SS316L WCB |
| 3.Valve seat | PTFE, RPTFE, PPL |
| 4.Ball | SS201 SS304 SS316 SS316L |
| 5.Seal ring | PTFE, RPTFE, PPL |
| 6.Stem | SS201 SS304 SS316 SS316L |
| 7.Packing | PTFE, RPTFE, PPL |
| 8.Gland | SS201 SS304 |
| 9.Handle | SS201 SS304 |
| 10.Nut | SS201 SS304 |
Feature:Full port or reduced port design, floating ball,blow-out proof stem.
Terms of payment:30% TT deposit, the balance is paid before shipping the goods
We can also manufacture similar products according to your special requirements
Our advantage: 1.Survival by quality and development by credibility.
2.Quality first, customer upmost !
3.We can do OEM products.
4.Professional manufacturer with many years' experiencE in this area.
5.Best price with superior quality.
6.3-5 hours fast reply.
7.Meet delievery date in time.
Looking forward to our cooperation!
FAQ 1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves.
2 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
3 Can you print our Logo on the valves?
Yes, we can totally produce products according to your this kind special request, even manufacture it based on your drawing.
