| Prod Model: |
M3-1D~M30-3D |
| Usage: |
Auto |
Product Description

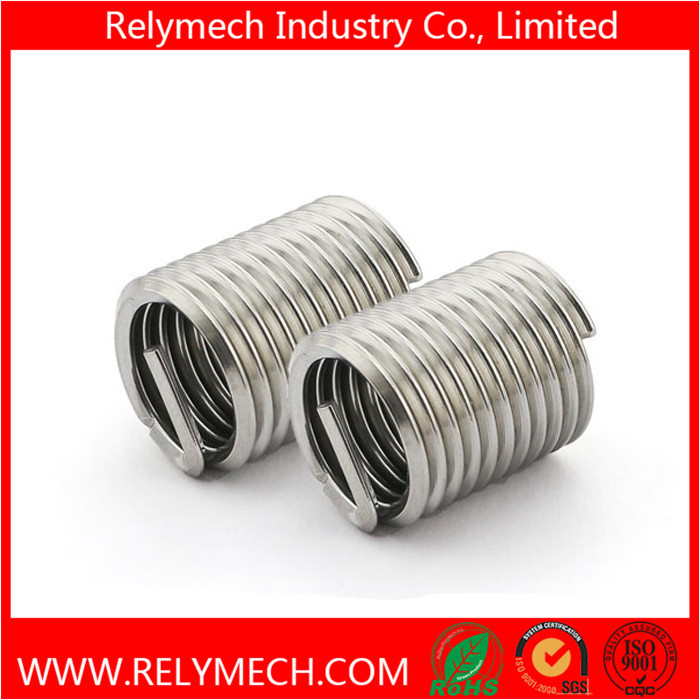

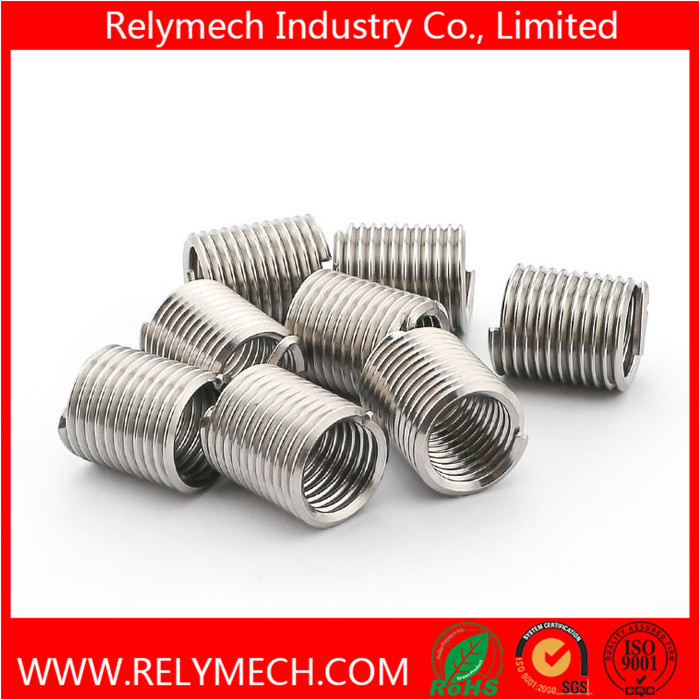

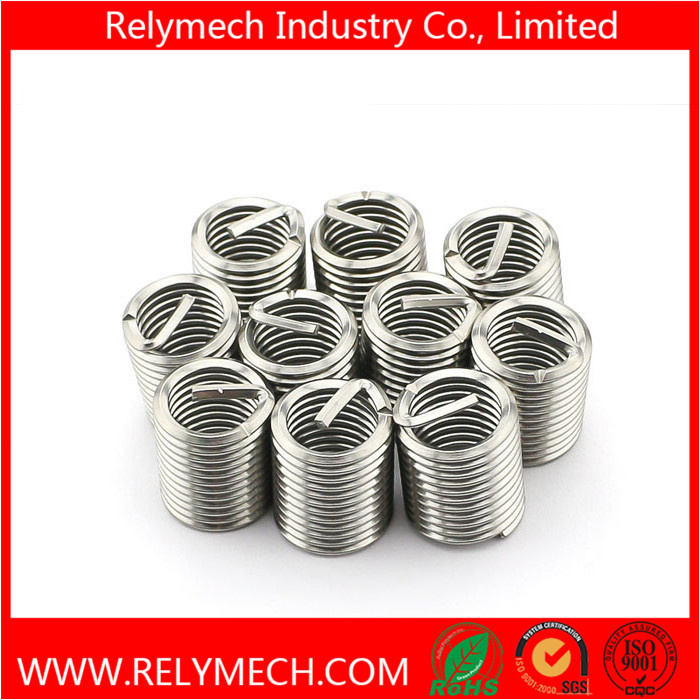

Stainless steel 304 wire thread insert/ screw insertProduct name:
wire thread insert/ screw insertMaterial: stainless steel 304
Spec.: M3-1D/1.5D/2D/2.5D/3D~M30-1D/1.5D/2D/2.5D/3D
| d | p | L*d | mm | W | DZ | d0 | Mass
Kg/1000pcs |
| 2 | 0.4 | 1d | 2 | 2.9 | 2.62-2.76 | 2 | 0.02 |
| 1.5d | 3 | 4.7 | 0.03 |
| 2d | 4 | 6.5 | 0.05 |
| 2.5 | 0.45 | 1d | 2.5 | 3.6 | 3.3-3.5 | 2.6 | 0.04 |
| 1.5d | 3.8 | 5.9 | 0.06 |
| 2d | 5 | 8.2 | 0.09 |
| 2.5d | 6.3 | 10.5 | 0.11 |
| 3d | 7.5 | 12.8 | 0.13 |
| 3 | 0.5 | 1d | 3 | 4.2 | 3.8-4 | 3.1 | 0.07 |
| 1.5d | 4.5 | 6.8 | 0.1 |
| 2d | 6 | 9.4 | 0.14 |
| 2.5d | 7.5 | 12 | 0.17 |
| 3d | 9 | 14.6 | 0.21 |
| 3.5 | 0.6 | 1d | 3.5 | 4 | 4.55-4.75 | 3.7 | 0.11 |
| 1.5d | 5.3 | 6.4 | 0.17 |
| 2d | 7 | 8.9 | 0.22 |
| 2.5d | 8.8 | 11.4 | 0.28 |
| 3d | 10.5 | 13.9 | 0.34 |
| 4 | 0.7 | 1d | 4 | 4 | 5.05-5.25 | 4.2 | 0.17 |
| 1.5d | 6 | 6.6 | 0.26 |
| 2d | 8 | 9.1 | 0.34 |
| 2.5d | 10 | 11.7 | 0.43 |
| 3d | 12 | 14.2 | 0.51 |
| 5 | 0.8 | 1d | 5 | 4.4 | 6.35-6.6 | 5.2 | 0.31 |
| 1.5d | 7.5 | 7.1 | 0.46 |
| 2d | 10 | 9.9 | 0.61 |
| 2.5d | 12.5 | 12.6 | 0.76 |
| 3d | 15 | 15.3 | 0.92 |
| 6 | 1 | 1d | 6 | 4.3 | 7.6-7.85 | 6.3 | 0.55 |
| 1.5d | 9 | 6.9 | 0.83 |
| 2d | 12 | 9.6 | 1.1 |
| 2.5d | 15 | 12.2 | 1.38 |
| 3d | 18 | 14.9 | 1.65 |
| 8 | 1.25 | 1d | 8 | 4.8 | 9.85-10.1 | 8.3 | 1.22 |
| 1.5d | 12 | 7.7 | 1.83 |
| 2d | 16 | 10.6 | 2.45 |
| 2.5d | 20 | 13.5 | 3.06 |
| 3d | 24 | 16.5 | 3.67 |
| 10 | 1.5 | 1d | 10 | 5 | 12.1-12.5 | 10.4 | 2.29 |
| 1.5d | 15 | 8.1 | 3.44 |
| 2d | 20 | 11.2 | 4.59 |
| 2.5d | 25 | 14.2 | 5.73 |
| 3d | 30 | 17.3 | 6.88 |
| 12 | 1.75 | 1d | 12 | 5.3 | 14.4-14.8 | 12.4 | 3.85 |
| 1.5d | 18 | 8.4 | 5.78 |
| 2d | 24 | 11.6 | 7.71 |
| 2.5d | 30 | 14.8 | 9.63 |
| 3d | 36 | 18 | 11.56 |
| 14 | 2 | 1d | 14 | 5.4 | 16.8-17.2 | 14.5 | 5.99 |
| 1.5d | 21 | 8.7 | 8.99 |
| 2d | 28 | 11.9 | 11.99 |
| 2.5d | 35 | 15.2 | 14.98 |
| 3d | 42 | 18.4 | 17.98 |
| 16 | 2 | 1d | 16 | 6.3 | 19-19.4 | 16.5 | 7.83 |
| 1.5d | 24 | 10 | 11.74 |
| 2d | 32 | 13.7 | 15.66 |
| 2.5d | 40 | 17.5 | 19.57 |
| 3d | 48 | 21.2 | 23.49 |
| 18 | 2.5 | 1d | 18 | 5.6 | 21.5-22 | 18.6 | 12.39 |
| 1.5d | 27 | 9 | 18.58 |
| 2d | 36 | 12.3 | 24.77 |
| 2.5d | 45 | 15.7 | 30.96 |
| 3d | 54 | 19 | 37.16 |
| 20 | 2.5 | 1d | 20 | 6.5 | 23.7-24.2 | 20.6 | 15.29 |
| 1.5d | 30 | 10 | 22.94 |
| 2d | 40 | 13.8 | 30.58 |
| 2.5d | 50 | 17.5 | 38.23 |
| 3d | 60 | 21.2 | 45.87 |
| 22 | 2.5 | 1d | 22 | 6.9 | 26.3-26.8 | 22.6 | 18.5 |
| 1.5d | 33 | 11 | 27.75 |
| 2d | 44 | 15 | 37 |
| 2.5d | 55 | 19 | 46.25 |
| 3d | 66 | 23 | 55.5 |
| 24 | 3 | 1d | 24 | 6.3 | 28.6-29.1 | 24.8 | 26.42 |
| 1.5d | 36 | 10 | 39.63 |
| 2d | 48 | 13.7 | 52.84 |
| 2.5d | 60 | 17.5 | 66.05 |
| 3d | 72 | 21.2 | 79.26 |
| 27 | 3 | 1d | 27 | 7.2 | 32.2-32.7 | 27.8 | 33.44 |
| 1.5d | 40.5 | 11.3 | 50.16 |
| 2d | 54 | 15.4 | 66.88 |
| 2.5d | 67.5 | 19.5 | 83.6 |
| 30 | 3.5 | 1d | 30 | 6.9 | 35.2-35.7 | 30.9 | 48.16 |
| 1.5d | 45 | 11 | 72.25 |
| 2d | 60 | 15 | 96.33 |
| 2.5d | 75 | 19 | 120.41 |
| 3d | 90 | 23 | 144.49 |
We supply the products:Fastener---screw, bolt, nut, washer, rivet, pin, key;Pneumatic components---fittings, cylinders;Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc. Why Choose us?Over 10 years export experience;
Less MOQ;
Competitive Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.
Relymech Industry Co., Limited, a rapid-developing industrial product distributer located in China, is focusing on equipment components systematic solution for manufacturer & maintenance business in mechanism transmission parts, fasteners and pneumatic components etc.
Our team has more than 10 years' experience in design, process and sales in this industry. We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer!
Relymech Industry Co., Limited is dedicated to industrial parts service as fasteners, pneumatic components, mechanism transmission parts etc. Our team have more than 10 years' expereience in the design, process and sales in this industry. Our products are widely used in machinery, automatic industries to domestic and oversea markets.
We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer.
Relymech, your reliable partner!
