Stainless Steel Bow Shackle for Lifting
| Price: |
US $ 0.2-80/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
bow shackle |
| Material: |
Stainless Steel |
| Shape: |
Bow Shape |
| Color: |
Ss Color |
Product Description

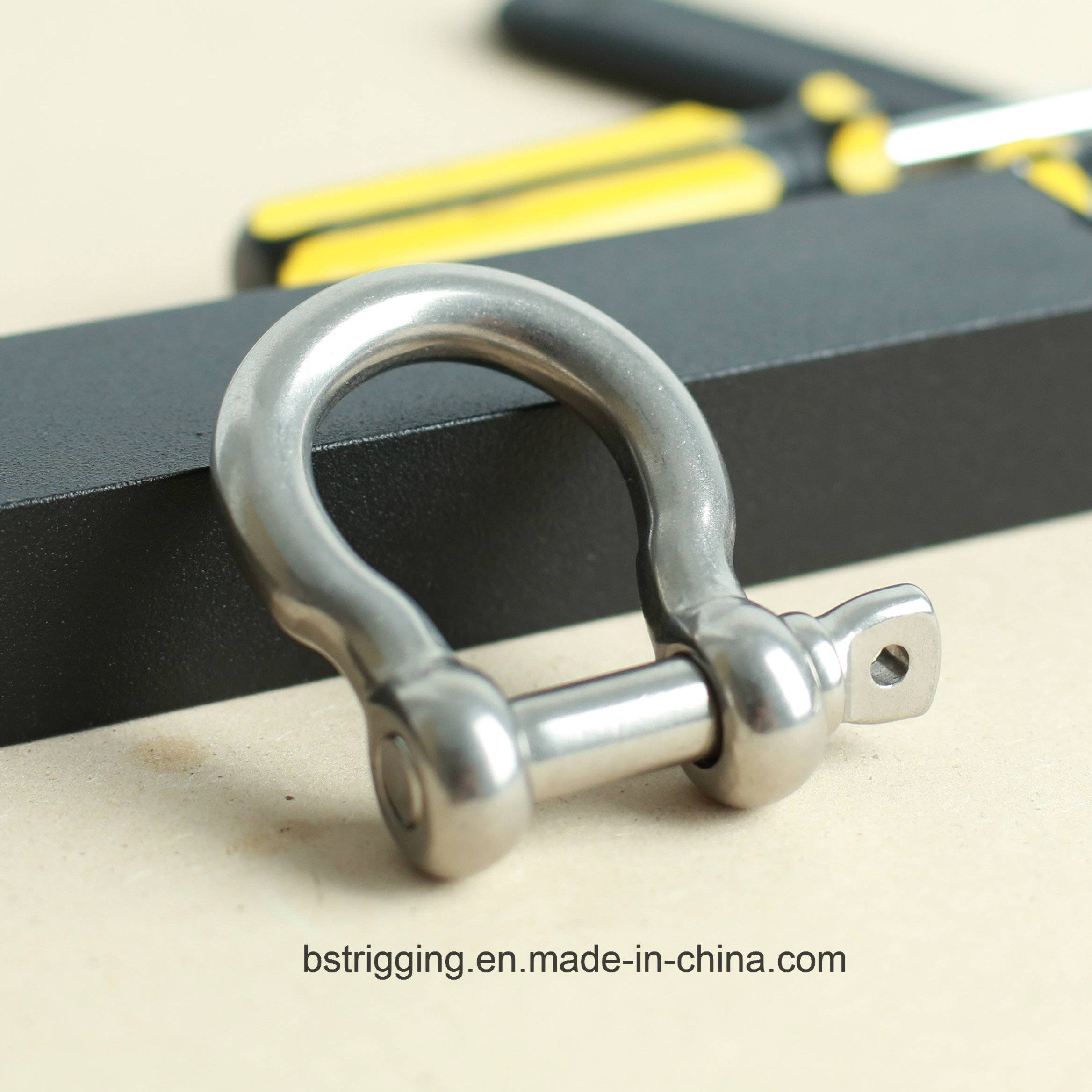

Stainless Steel Bow Shackle European Type AISI304/316
Usage:Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
Main standard: US type G210, G2130, G2150, Europe Dee & Bow type, JIS Dee & Bow type, Plate shackle
Material: Stainless steel 304/316
Finish: High polished
Size:Different size available(as below)
Delivery time:10-20days according to your order quantity

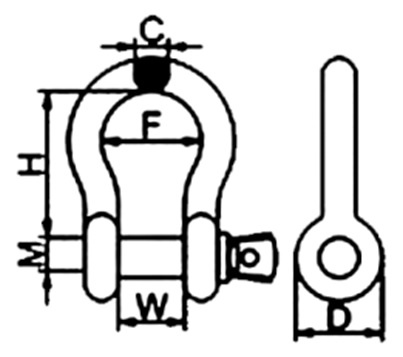

| SIZE | M(mm) | H(mm) | W(mm) | C(mm) | F(mm) | weight(G) |
| 4 | 4 | 16 | 8 | 4 | 14 | 7.5 |
| 5 | 5 | 20 | 10 | 5 | 18 | 14.5 |
| 6 | 6 | 24 | 12 | 6 | 21 | 25 |
| 8 | 8 | 32 | 16 | 8 | 28 | 61 |
| 10 | 10 | 40 | 20 | 10 | 35 | 120 |
| 12 | 12 | 48 | 24 | 12 | 42 | 208 |
| 14 | 14 | 56 | 28 | 14 | 49 | 324 |
| 16 | 16 | 64 | 32 | 16 | 56 | 485 |
| 18 | 18 | 72 | 36 | 18 | 63 | 700 |
| 20 | 20 | 80 | 40 | 20 | 70 | 971 |
| 22 | 22 | 88 | 44 | 22 | 77 | 1270 |
| 25 | 24 | 100 | 50 | 25 | 88 | 1705 |
| 28 | 28 | 112 | 56 | 28 | 98 | 2660 |
| 32 | 32 | 128 | 64 | 32 | 112 | 3800 |
| 38 | 38 | 152 | 76 | 38 | 133 | 6737 |
Packing:
FAQ
1. What products do you supply?
Our Products range : Shackles, Turnbuckles, Snap hooks ,Wire rope clips,Swivel, Rigging screw, Lifting eye bolt, Lifting eye nut , Wing nut , Spring snap hook , Quick link , Pad eye, Round ring, D ring and Marine hardware, also any kinds of drill chuck for power drill .
2. Does a trial order acceptable?
Yes, we accepte any trial order.
3. What is your MOQ?
Normally MOQ is 100pcs/item, but different items with different requirement, please contact with us .
4. What is your payment terms?
T/T will be better , L/C also OK , please contact with us for further communication.
5. How long is your delivery time?
Around 10-30days, according to your order quantity.
6. Do you offer samples?
For normal products, we can provide 1-2 pieces free samples. But the express cost would be on your account.
7. Can you help customer to design their own products?
Yes, if you need , we can help you to design the products as your requirement .
8. How do you control the quality?
We will do the strict inspect for the material and the finished products , to make sure to supply the best quanlity products for you .
