| Prod Model: |
S-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nozzle Tip Material: |
Ss/Brass |
| Spray Pattern: |
Flat Fan |
| Spray Angle: |
0 to 110 Degree |
| Flow Rate: |
0.12-540L/Min. |
| Shape: |
Flat Fan |
| Material: |
Ss/Brass |
Product Description
Design feature:

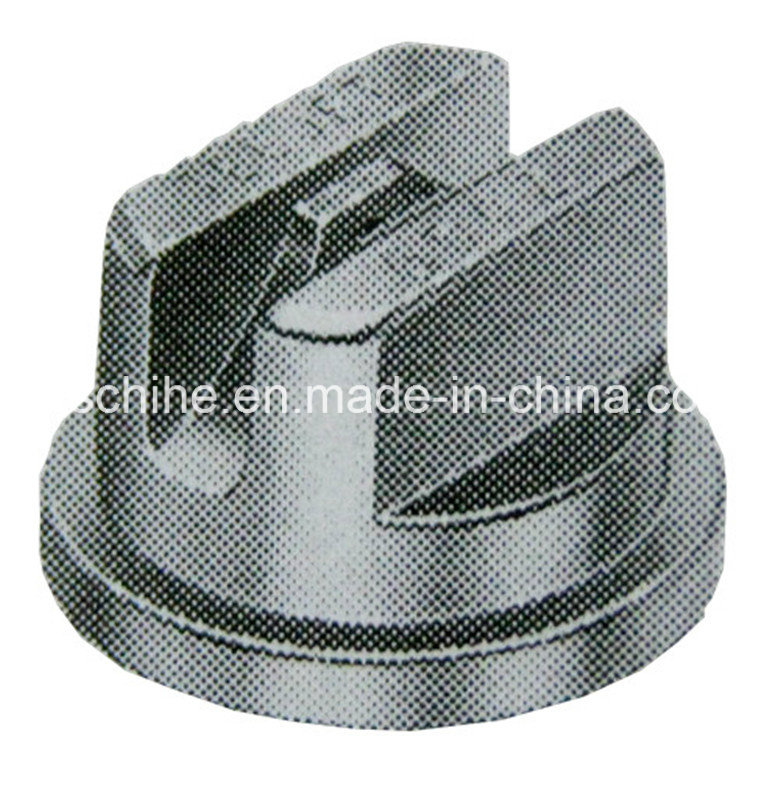

S-01 stainless steel spray nozzle tip can produce high impact flat fan spray pattern.One-piece construction.
Spray characteristics:Coarse atomization
Spray pattern:Flat fan
Spray angles:110°, 95°, 80°, 65°, 50°, 40°, 25°, 15° standard
Flow rates:0.12-540l/min.
Material available:304SS, 316SS, brass
110° Standard Flow Rates Table for Reference:
Spray
angle
(3bar) | Flow
code
order
NO. | Flow Rates(liters/min.) | Spray angle |
0.3
bar | 1
bar | 2
bar | 3
bar | 4
bar | 5
bar | 6
bar | 7
bar | 10
bar | 20
bar | 35
bar | 1.5
bar | 3
bar | 6
bar | 14
bar |
| 110° | 11001 | 0.12 | 0.23 | 0.32 | 0.39 | 0.46 | 0.51 | 0.56 | 0.6 | 0.72 | 1 | 1.3 | 94° | 110° | 121° | 124° |
| 110015 | 0.19 | 0.34 | 0.48 | 0.59 | 0.68 | 0.76 | 0.84 | 0.9 | 1.1 | 1.5 | 2 | 97° | 110° | 121° | 124° |
| 11002 | 0.25 | 0.46 | 0.64 | 0.79 | 0.91 | 1 | 1.1 | 1.2 | 1.4 | 2 | 2.7 | 98° | 110° | 120° | 123° |
| 11003 | 0.37 | 0.68 | 0.97 | 1.2 | 1.4 | 1.5 | 1.7 | 1.8 | 2.2 | 3.1 | 4 | 99° | 110° | 120° | 123° |
| 11004 | 0.5 | 0.91 | 1.3 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.9 | 4.1 | 5.4 | 100° | 110° | 119° | 122° |
| 11005 | 0.62 | 1.1 | 1.6 | 2 | 2.3 | 2.5 | 2.8 | 3 | 3.6 | 5.1 | 6.7 | 100° | 110° | 118° | 122° |
| 11006 | 0.75 | 1.4 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 | 6.1 | 8.1 | 101° | 110° | 117° | 122° |
| 11008 | 1 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 8.2 | 10.8 | 102° | 110° | 117° | 121° |
| 11010 | 1.2 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6 | 7.2 | 10.2 | 13.5 | 103° | 110° | 117° | 119° |
| 11015 | 1.9 | 3.4 | 4.8 | 5.9 | 6.8 | 7.6 | 8.4 | 9 | 10.8 | 15.3 | 20 | 104° | 110° | 117° | 118° |
| 11020 | 2.5 | 4.6 | 6.5 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 | 20 | 27 | 105° | 110° | 117° | 118° |
Common applications:
1.Metal cleaning;
2.Spray and coating;
3.Oil stain removal and washing;
4.Machinery washing
5.Spray and cooling;
6.Clean coal and stones.
