Prod Model: |
Z11W |
Place Of Origin: |
Zhejiang Pr,China |
Connection: |
Thread |
Certification: |
Ce,ISO |
Size: |
1/2"--4" |
Material: |
Stainless Steel |
Connection Form: |
Thread |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Household Usage |
Pressure: |
200psi |
Product Description
cf8m gate valve ss |

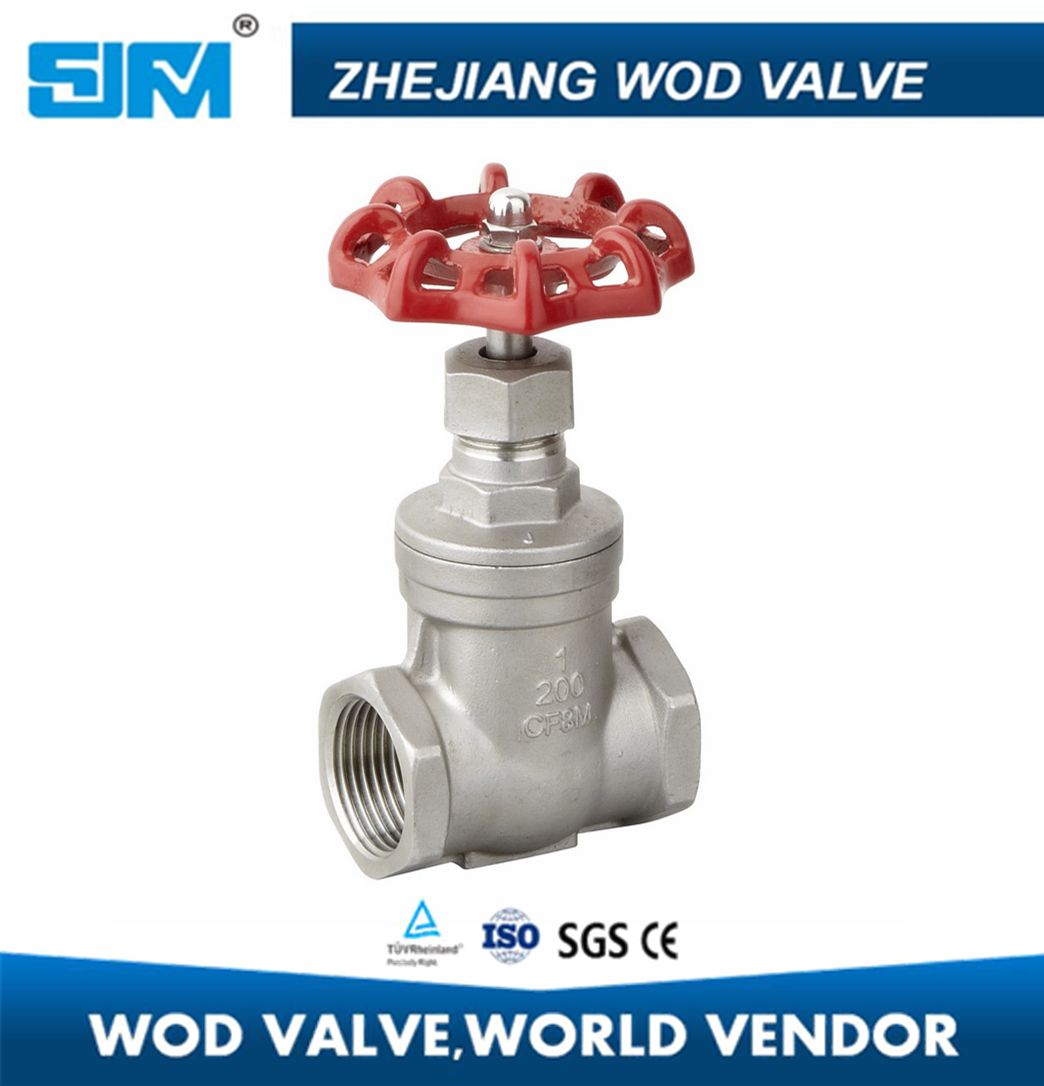

Name | stainless steel gate valve with threaded end |
Design | full port |
Material of construction | investment casting |
Material | SS304/SS316/SS201/WCB |
Working pressure | 200PSI |
Size range | 1/2"--4" |
End Connection | BSP/BSPT/NPT/DIN2999/DIN259 Threaded |
Mode of operation | Manual |
|
Specification |
Normal pressure | PN1.6,2.5,4.0,6.4M.pa |
Strength testing pressure | PT:2.4,3.8,6.0,9.6M.pa |
Seat testing pressure(hight pressure) | 1.8,2.8,4.4,7.1Mpa |
Applicable media | Z15w-2C water oil gas /Z15w-2P Nitric acid /Z15w-2R Acetic acid |
Applicable temperature | -20ºCto200ºC |
Product standard | ASME B16.34 |
Wall thickness standard | ASME B16.34 GB12224 |
Thread standard | ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT |
Inspection standard | API598 EN12266 |
Product certification | PED 97/23/EC(CE2138) ISO900 |
Material of product's parts |
NO | DESCRIPTION | MATERIAL |
1 | BODY | CF8M | CF8 | WCB |
2 | BONNET | CF8M | CF8 | WCB |
3 | DISC | CF8M | CF8 | WCB |
4 | STEM | CF8M | CF8 |
5 | SEALRING | PTFE/RPTFE |
6 | PACKING | PTFE/RPTFE |

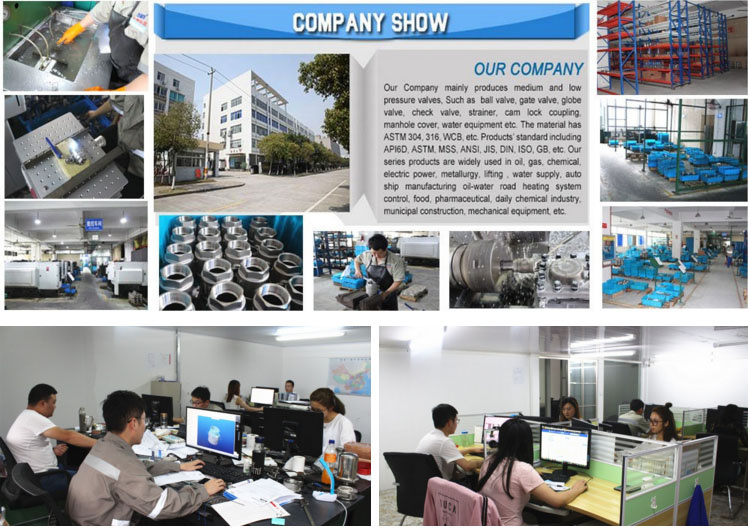

Company Show Zhejiang WOD Valve Co.,Ltd. Was founded in 2008. WOD company is a diversified manufacturer of valves. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance
It is located in China Valve City---Wenzhou Economic and Technological Development Zone,Zhejiang Province, it is about 5 minutes away from Wenzhou International Airport, and half an hour from Wenzhou Train Station . Ningbo Port and Shanghai Port are also very close to our factory.
WOD Company mainly produces medium and low pressure valves, Such as 1pc ball valve,2pc ball valve,3pc ball valve,flange ball valve, gate valve, globe valve, check valve, Y strainer.etc. The material has ASTM 304, 316, WCB,etc. Valves' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series valves are widely used in oil, gas, chemical, electric power, metallurgy, lifting , water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.

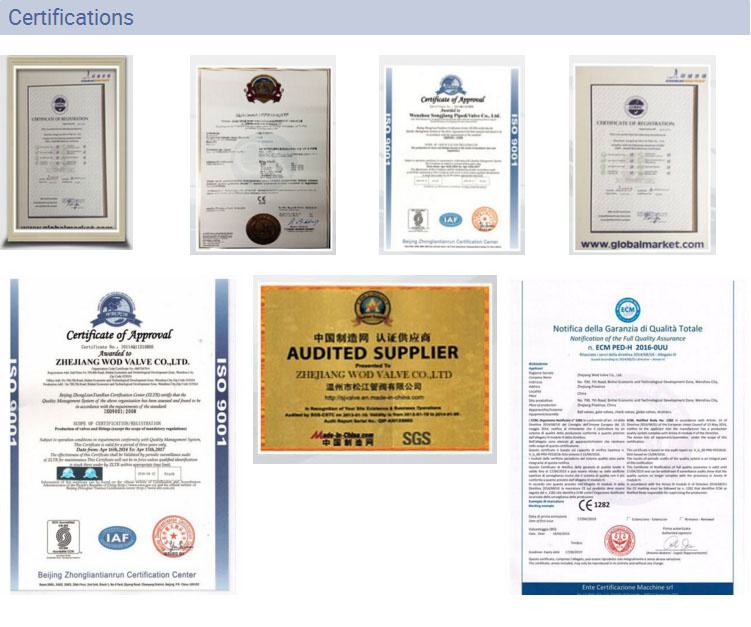

WOD company has obtained C E, I S O 9 0 0 1 certifications, also been inspected and approved by S G S,T U V
As "Pursuing Survival with Quality,Winning Market with Price" .WOD valves have been exported to all over the world,especially in North American,South American ,Europe,Middle East and so on.
Advantage:
1. Timely delivery time: We can delivery fast. It is usually 30-45 days after received the deposit.
2. Profession factory: We can produce kinds of products according to your sample.
3. Rapid response to your need within 24 hours.
4. That assure the quality and long life time.
5. We offer the non-standard valves, according to customer requirements
6. If you want, you can have your own logo on the products
7. Exported to more than 10 countries in America and Asia
8. We can promise the quality, passed the CE certification
Zhejiang WOD Valve Co., Ltd. Was founded in 2008. WOD company is a diversified manufacturer. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance
It is located in China Valve City---Wenzhou Economic and Technological Development Zone, Zhejiang Province, it is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
WOD Company mainly produces medium and low pressure valves, Such as ball valve, gate valve, globe valve, check valve, strainer, cam lock coupling, manhole cover, water equipment etc. The material has ASTM 304, 316, WCB, etc. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series products are widely used in oil, gas, chemical, electric power, metallurgy, lifting, water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.
WOD company has obtained CE, ISO9001 certifications, also been inspected and approved by SGS, TUV
Our production spirit and service concept is "Innovation, Serves attentively ". Welcoming customers from all over the world come to visit WOD company and attend technical exchange
