Stainless Steel Glass Clamp for Glass Railing and Balustrade
| Price: |
US $ 2.5-3/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GC |
| Size: |
45X63mm, Fit for 6-12.76mm Glasses |
| Fit For Tubes: |
Flat,33.7mm,42.4mm,48.3mm,etc. |
| Material: |
AISI 304, 316 or Duplex Stainless Steel |
| Surface Treatment: |
Satin Finish or Mirror Finish |
| Stair Railing / Handrail: |
Stainless Steel |
| Baluster: |
Stainless Steel |
| Stair Tread: |
Stainless Steel |
Product Description

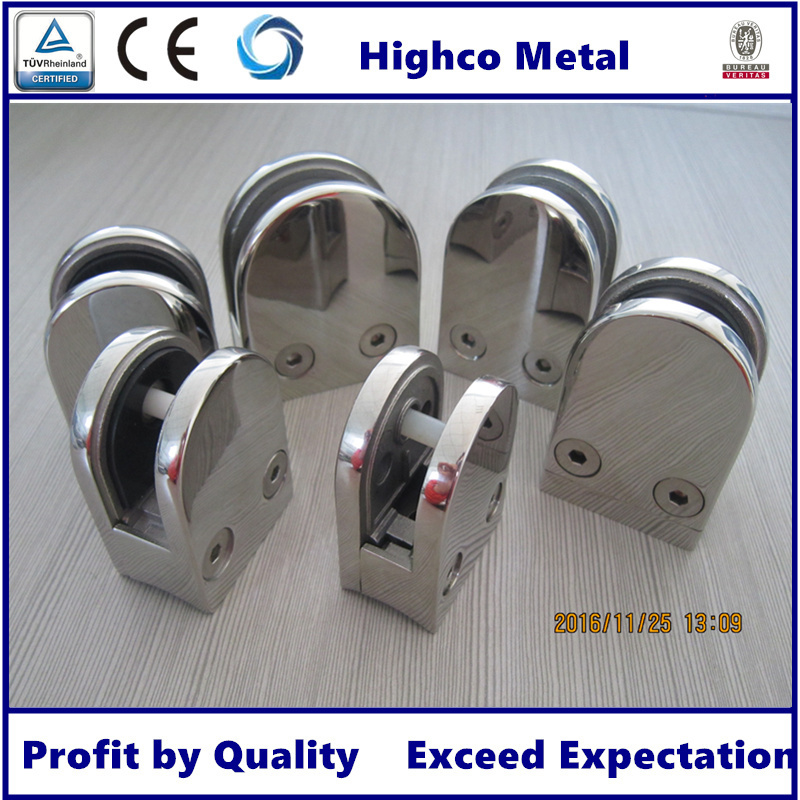

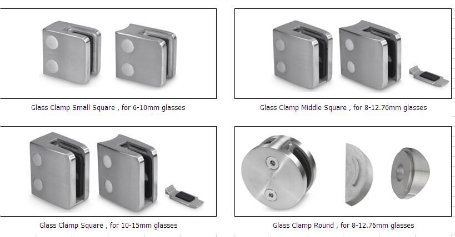

Glass Clamp / Stainless Steel Balustrade
1. Specifications| Part NO. | Finish | Main Dimension (mm) | Ø | Glass mm |
| A | B | C |
| GC001.00-S | Satin | 50 | 40 | 23 | Flat | 6.0mm - 8.0mm |
| GC001.00-M | Mirror | 50 | 40 | 23 | Flat | 6.0mm - 8.0mm |
| GC001.33-S | Satin | 50 | 40 | 23 | 33.7 | 6.0mm - 8.0mm |
| GC001.33-M | Mirror | 50 | 40 | 23 | 33.7 | 6.0mm - 8.0mm |
| GC001.42-S | Satin | 50 | 40 | 23 | 42.4 | 6.0mm - 8.0mm |
| GC001.42-M | Mirror | 50 | 40 | 23 | 42.4 | 6.0mm - 8.0mm |
| Part NO. | Finish | Main Dimension | Ø | Glass mm |
| A | B | C |
| GC002.00-S | Satin | 63 | 45 | 26 | Flat | 8.0mm - 10.0mm |
| GC002.00-M | Mirror | 63 | 45 | 26 | Flat | 8.0mm - 10.0mm |
| GC002.38-S | Satin | 63 | 45 | 26 | 42.4 | 8.0mm - 10.0mm |
| GC002.38-M | Mirror | 63 | 45 | 26 | 42.4 | 8.0mm - 10.0mm |
| GC002.50-S | Satin | 63 | 45 | 26 | 48.3 | 8.0mm - 10.0mm |
| GC002.50-M | Mirror | 63 | 45 | 26 | 48.3 | 8.0mm - 10.0mm |
| Part NO. | Finish | Main Dimension | Ø | Glass mm |
| A | B | C |
| GC003.00-S | Satin | 63 | 45 | 31 | Flat | 10.76mm - 12.76mm |
| GC003.00-M | Mirror | 63 | 45 | 31 | Flat | 10.76mm - 12.76mm |
| GC003.38-S | Satin | 63 | 45 | 31 | 42.4 | 10.76mm - 12.76mm |
| GC003.38-M | Mirror | 63 | 45 | 31 | 42.4 | 10.76mm - 12.76mm |
| GC003.50-S | Satin | 63 | 45 | 31 | 48.3 | 10.76mm - 12.76mm |
| GC003.50-M | Mirror | 63 | 45 | 31 | 48.3 | 10.76mm - 12.76mm |
| Part NO. | Finish | Main Dimension | Ø | Glass mm |
| A | B | C |
| GC004.00-S | Satin | 45 | 45 | 23 | Flat | 6.0mm - 8.0mm |
| GC004.00-M | Mirror | 45 | 45 | 23 | Flat | 6.0mm - 8.0mm |
| GC004.38-S | Satin | 45 | 45 | 23 | 33.7 | 6.0mm - 8.0mm |
| GC004.38-M | Mirror | 45 | 45 | 23 | 33.7 | 6.0mm - 8.0mm |
| GC004.50-S | Satin | 45 | 45 | 23 | 42.4 | 6.0mm - 8.0mm |
| GC004.50-M | Mirror | 45 | 45 | 23 | 42.4 | 6.0mm - 8.0mm |
| Part NO. | Finish | Main Dimension | Ø | Glass mm |
| A | B | C |
| GC005.00-S | Satin | 55 | 55 | 26 | Flat | 8.0mm - 10.0mm |
| GC005.00-M | Mirror | 55 | 55 | 26 | Flat | 8.0mm - 10.0mm |
| GC005.38-S | Satin | 55 | 55 | 26 | 42.4 | 8.0mm - 10.0mm |
| GC005.38-M | Mirror | 55 | 55 | 26 | 42.4 | 8.0mm - 10.0mm |
| GC005.50-S | Satin | 55 | 55 | 26 | 48.3 | 8.0mm - 10.0mm |
| GC005.50-M | Mirror | 55 | 55 | 26 | 48.3 | 8.0mm - 10.0mm |
| Part NO. | Finish | Main Dimension | Ø | Glass mm |
| A | B | C |
| GC006.00-S | Satin | 55 | 55 | 30 | Flat | 10.76mm - 12.76mm |
| GC006.00-M | Mirror | 55 | 55 | 30 | Flat | 10.76mm - 12.76mm |
| GC006.38-S | Satin | 55 | 55 | 30 | 42.4 | 10.76mm - 12.76mm |
| GC006.38-M | Mirror | 55 | 55 | 30 | 42.4 | 10.76mm - 12.76mm |
| GC006.50-S | Satin | 55 | 55 | 30 | 48.3 | 10.76mm - 12.76mm |
| GC006.50-M | Mirror | 55 | 55 | 30 | 48.3 | 10.76mm - 12.76mm |
2. Characteristics
1) Superior Corrosion Resistance
2) Excellent Polishing Work3) Simple Design and Easy Installation
4) Safty and Practicallity
3. How to choose material? 304 316 or 2205?Although not visible to the naked eye the variance between different grades of stainless steel lies in its composition. As steel is naturally corrosive, different elements are added to make it stainless. The industry standard for inerior use is a 304 grade stainless steel. In comparision 316 stainless steel contains 2% molybdenum to make the material more resistant to corrosion caused cracks, tension and pitting.
For outdoor use we normally recommend 316 grade stainless steel as the tougher composition gives better resistance in these harsh environments.
For swimming pools, coastal areas, Highco Metal can provide a wide range of components in stainless steel 2205 grade.4. Company infoOur company, Highco Metal Products Co., Ltd. specializes in producing Stainless Steel handrail system and balustrade fittings for over nearly 10 years. We are carrying a wide range for stainless steel handrail fittings, glass clamps, end caps, flush joiners, handrail brackets, sheet holders, cross bar holders, base flanges, etc. For different tube diameters, materials can be selected in stainless steel 304, 316, Duplex 2205, etc. Surfaces could be Mirror polished or Satin polished. And we have better advantages than other companies which are also in this field.Welcome to Highco Metal

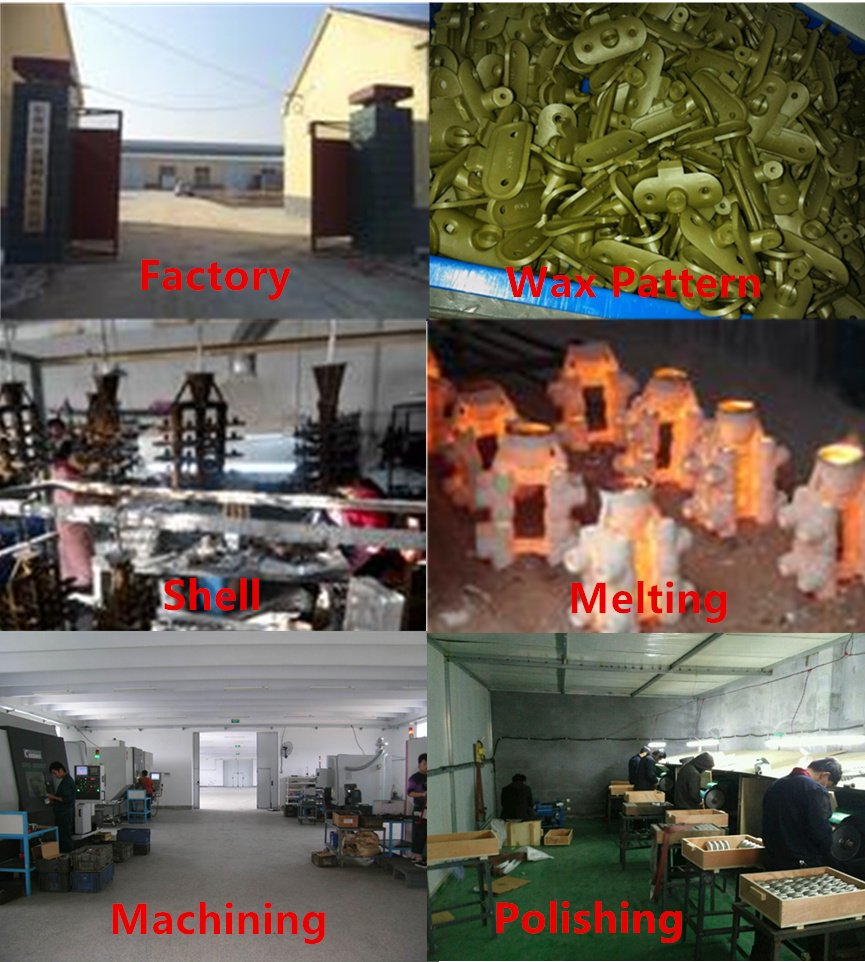

5. Why choose Highco MetalHigh QualityWe control each step of production from casting procedures to package very strictly to ensure the quality. With years of experience in manufacturing handrail fittings, we know that quality is the most important fact in this field, so each parts will be checked by our QC staffs before package and delivery.
Competitive Price We knew the customers and supplier do not only the trade parties but also partners for long time cooperation. Therefore we always offer you our best prices to help you to reducing purchasing costs, win more shares in your market.
Fast Delivery
We monitor the process of each order and to know which step it is now and when the order will be completed, then we will report to customers in time. If there is something wrong from the manufacturing processes, customers will know the information and details at the first time.
If you want to have a supplier and partner from China that you can trust, make the purchasing easier, reduce your costs, then Highco is one of your best choices. We welcome you contact or come to visit us at any time. 6. Business FAQ
1) What is the Minimum Order Quantity?100 pcs. And we also accept sample orders.
2) Delivery Time for ordinary order?
Usually 30-40 days. Please ask us for urgent orders.
3) Are samples available?
Yes. Free samples are available.
4) Can you manufacture according to customer's samples?
Yes, of course. According to samples, we can make drawing, tooling and sample.5) How long will it take to make new samples according to customer's drawing or sample?Totally 20 days. 10 days for tooling and another 10 days for sample.
Dongying Highco Metal Products Co., Ltd. Focuses on supplying various metal components for customers worldwide.
With a group of team whom were all worked in the field for over 10 years, based on better experience and professional knowledge, we could offer not only the products themselves. Excellent technical supports, better quality assurance, exact production scheduling, easier communication, you can be benefit from us to minimize your risk and reduce your procurement costs.
At this moment, We are able to handle include castings (investment castings, sand castings, etc. ), forgings, machining parts, stamping parts, etc. Made from iron, carbon steel, stainless steel, alloy steel, Aluminum, zinc, brass, bronze, etc.
We can offer to customers semi-finished parts, CNC machining finished parts, assembly parts. And also hand polished, electric polished, vibration, black oxide, carburization, etc. Different surfaces treatment.
We sincerely welcome you come to visit us, establish long term cooperation, create win-win future
