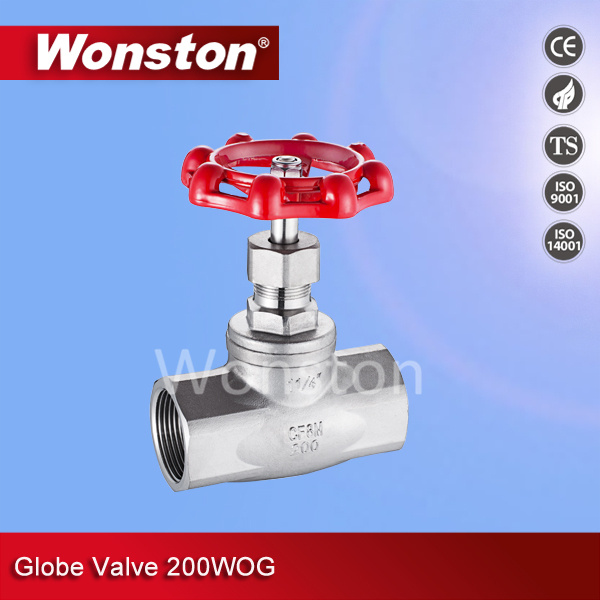

Stainless Steel Globe Valve 200wog
| Price: |
US $ 7.48/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WJ-01T |
| Port: |
Full Port |
| Function: |
Oil,Gas,Water |
| Certificate: |
ISO9001,Ce |
| Handle Color: |
Blue,Red,Yellow,Grey |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
Product Description
Globe Valve 200WOGProduct Description
1. Model: WJ-01T
2. Name: Gate Valve
3. Size: 1/2"~2"
4. Material: CF8M/CF8,SS316/SS304,1.4408/1.4301
5. Design Standard: ASME B16.34
6. Pressure: 200WOG
7.Temperature: -29°C~180°C
8. Application: water,oil,gas
9. Thread: NPT,BSPT,BSP,DIN,MPT
10. Advantage: Fluid resistance small, Structure is simple, Small volume, lightweight , Easy to operate, Opening and closing rapidly, Convenient maintence.
11.Product Drawing
Features and Benefits:
| Size | 1/4"--- 4"(DN6-DN100) |
| Connection type | Inside thread |
| Temperature Range | -29ºC~150ºC~300ºC ETC |
| Working pressure | 1.6Mpa~6.4Mpa |
| Type of thread | NPT, BSPT, BSP, PT, DIN2999 ETC |
| Applicable medium | Water,oil,gas |
| Feature | Full port design, floating ball,blow-out proof stem |
| Part name | Materials |
| 1.Body | SS201 SS304 SS316 SS316L WCB |
| 2.Bonnet | SS201 SS304 SS316 SS316L WCB |
| 3.Valve seat | PTFE, RPTFE, PPL |
| 4.Ball | SS201 SS304 SS316 SS316L |
| 5.Seal ring | PTFE, RPTFE, PPL |
| 6.Stem | SS201 SS304 SS316 SS316L |
| 7.Packing | PTFE, RPTFE, PPL |
| 8.Gland | SS201 SS304 |
| 9.Handle | SS201 SS304 |
| 10.Nut | SS201 SS304 |
FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 100pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 12 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, L/C are applicable for us. Payment Term: 30% in advance, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture ANSI,DIN, JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions. Jelly
Sales Manager
-----------------------------------------------------
ZHEJIANG WONSTON VALVE CO.,LTD
Wonston provides the right solutions
Wonston is a leading manufacturer of ball valves. Founded in the early 1996's, the company expanded into the design and production of 1, 2, 3- piece ball valves, gate valve, globe valve, check valve etc, which are widely used in the following industries: Chemical, petrochemical, oil refinery, energy, offshore drilling, marine, pulp and paper, pharmaceutical, biotech, food and beverage and others.

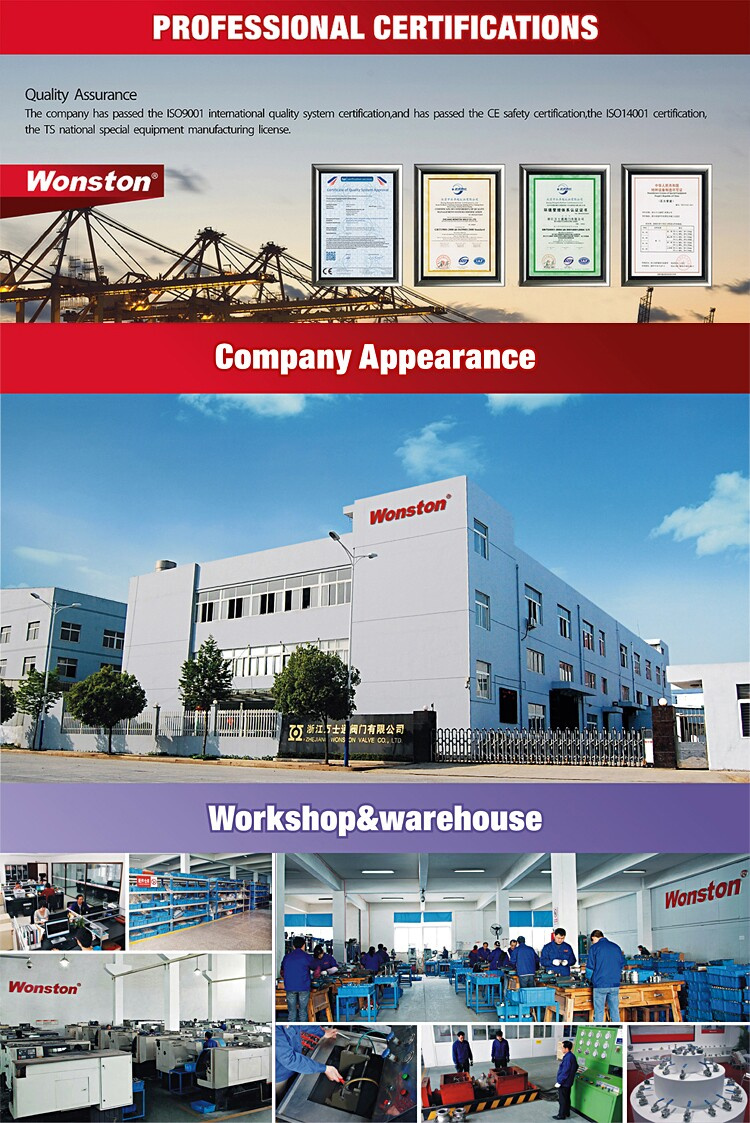

The company occupies a land area of 18, 000 square meters, has 100 staff, with nc lathe, milling machine, radial drilling machine, laser marking machine etc, and testing equipments such as spectrometers, chemistry analyzers, plug gauge, pressure test machine etc to ensure quality. The company has acquired ISO14001, ISO9001 and ce authentication.
Wonston products have been exported to America, Europe, Russia, Middle East, Asia, Africa etc.
Advanced design and flexibility
Research, development and continuous technological advances ensure that wonston stays in the forefront of the industry. Wonston's expertise in valve design means that the company can supply not only standard valves, but also complex, custom-designed valve packages for many applications. As a result of its on-going modification and upgrading of current valve designs, together with the development of new valve products, wonston offers the highest degree of sophisticated products that meet customers' requirements.
Our mission
Wonston complies to the management idea: "combine the talents, improve whole system, ensure the safety, achieve competitive product, service sincerely, strive for a first-rate" be market-oriented. We believe that under the help and support from the customers and friends, wonston can make a huge achievement and create bigger refulgence.
Performance and reliability
In industries where performance, quality and reliability are essential, wonston ball valves and other products are a secure choice. Each valve is manufactured to strict technical specifications, guaranteeing customer satisfaction, more than 5 times quality from beginning to the end ensure each valve was 100% eligibility.
