| Prod Model: |
Slotted |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ASTM A554: |
Polished 320 G, 400 G, 600 G; Hairline; Descaled. |
| Type: |
Welded |
| Technique: |
ERW |
| Usage: |
Pipeline Transport |
| Surface Treatment: |
Polished, Hairline |
Product Description

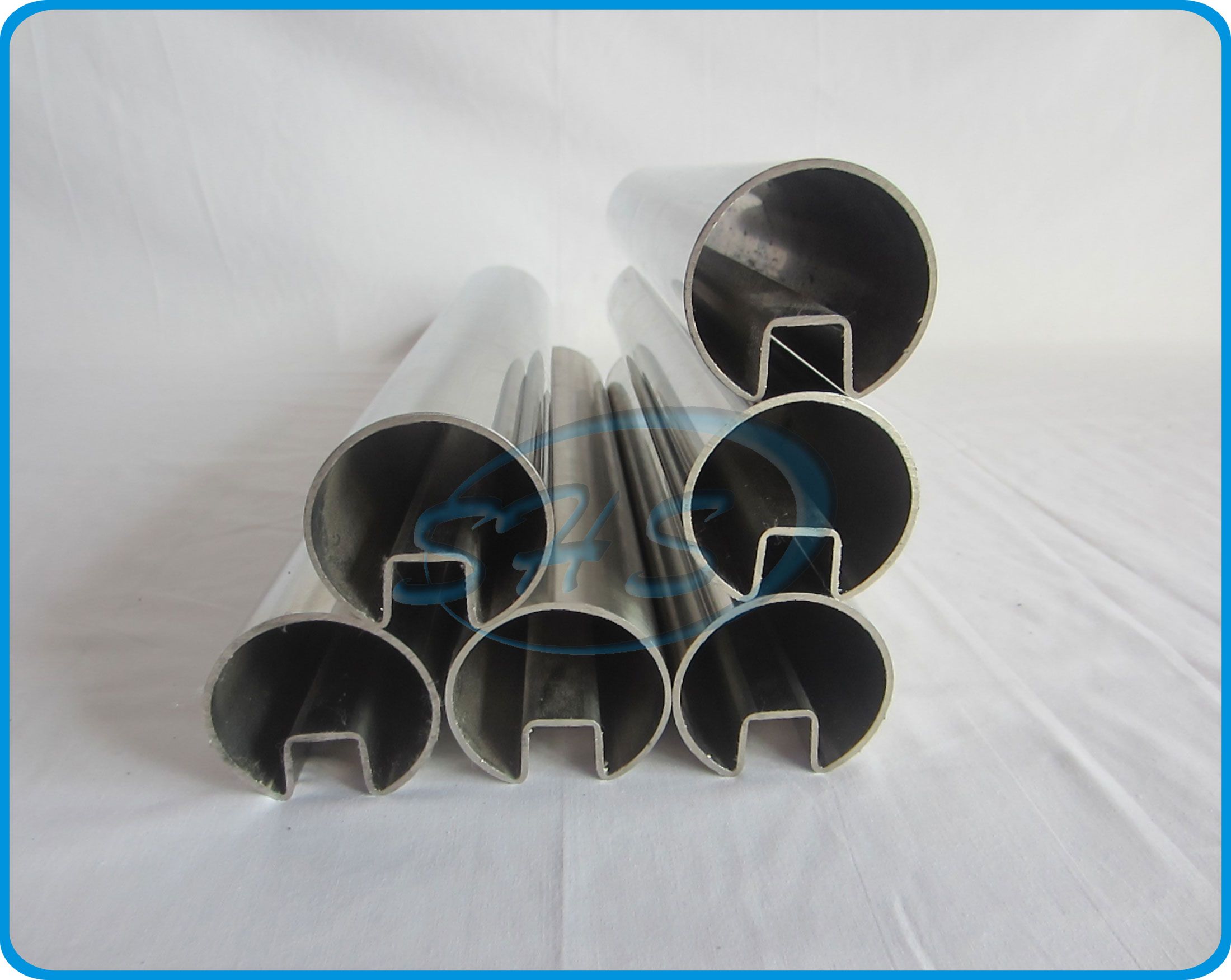

| Item Name: | Stainless Steel Welded Slotted Tubes |
| Standard: | ASTM A554 |
| Grade of Material: | AISI 201, 202, 304, 304L, 316, 316L, etc. |
| Certificate: | ISO 9001: 2008 |
| Dimension: | See Range Below |
| Surface: | Polished 320 G, 400 G, 600 G; Hairline; Descaled. |
| Length: | 10 mm - 10000 mm |
| Packing: | Each or several tubes (pipes) would be sleeved in plastic bag individually, and then a bundle of them would be packed by a weaving bag which is seaworthy. |
| Application: | Decoration, construction & building, such as handrail, railing, window, furniture, etc. |
Chemical
Composition: | Grade of Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI 201 | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.060 | ≤0.03 | 1.00 ~1.50 | 13.50~15.00 | \ |
| AISI 202 | ≤0.15 | ≤1.00 | 7.50~10.00 | ≤0.060 | ≤0.03 | 4.00~6.00 | 17.00~19.00 | \ |
| AISI 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~11.00 | 18.00~20.00 | \ |
| AISI 304L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~13.00 | 18.00~20.00 | \ |
| AISI 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| AISI 316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
Mechanical
Property: | Grade of Material | Elongation (%) | Tensile Strengh (Rm) N/m m³ | Yield Strength (Rp) 0.2%N/m m³ | Hardness (HV) |
| AISI 201 | ≥35 | ≥520 | ≥210 | ≤253 |
| AISI 202 | ≥35 | ≥590 | ≥210 | ≤218 |
| AISI 304 | ≥35 | ≥520 | ≥210 | ≤200 |
| AISI 304L | ≥35 | ≥480 | ≥180 | ≤200 |
| AISI 316 | ≥35 | ≥520 | ≥210 | ≤200 |
| AISI 316L | ≥35 | ≥480 | ≥180 | ≤200 |
Our Advantages:
1. High-quality products as per certificate ISO 9001: 2008.
2. Good services to satisfy you.
3. Timely delivery for your orders.
4. Samples are available as per your request.
Founded in 2005, SHS Stainless Steel Co., Limited is a leading manufacturer of stainless steel products in China. We have formed professional teams for the management of our factory and the sales of the manufacture. For years, more and more companies around the world have worked with us in stainless steel area for long terms and even some have been our agents.
Our Products:

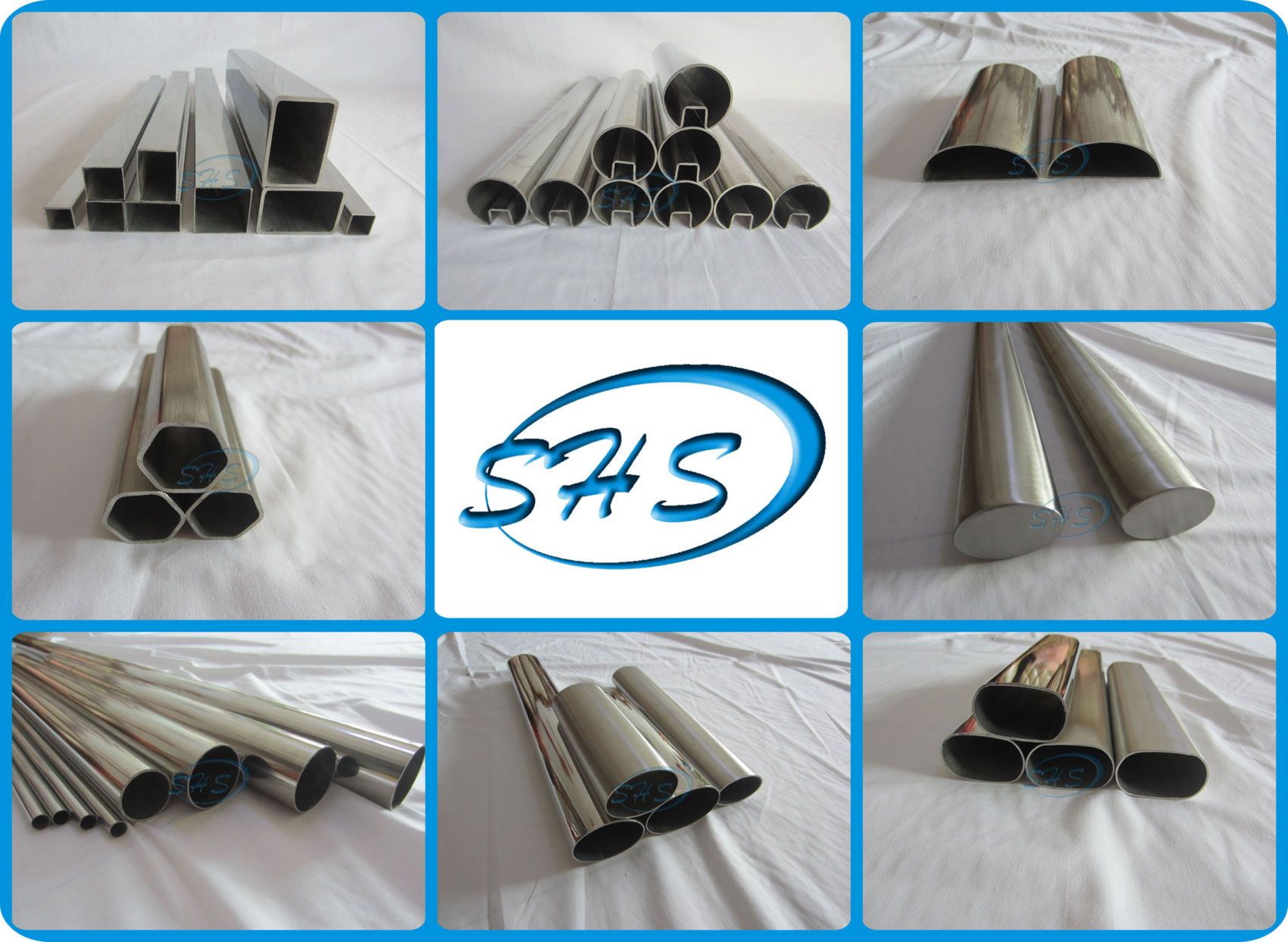

We are an expert specializing in stainless steel products including pipes, sheets, coils, fittings, etc. That meet international standards and are applied in many industries, e. g., building industry, mechanical facilities, sanitary equipment and other related range.
Our Factory:
Our factory, occupying about 40, 000 square meters, is located in Foshan City which is next to Guangzhou City of Guangdong province. It is easy to reach for visit. Our factory is equipped with advanced facilities for production and testing.
Our Advantages:
1. High-quality products as per certificate ISO 9001: 2008.
2. Good services to satisfy you.
3. Timely delivery for your orders.
4. Samples are available as per your request.
Our Objective:
We satisfy our customers' requirements with high-quality products, good services and timely delivery. We believe that SHS products will be always your best choice.
