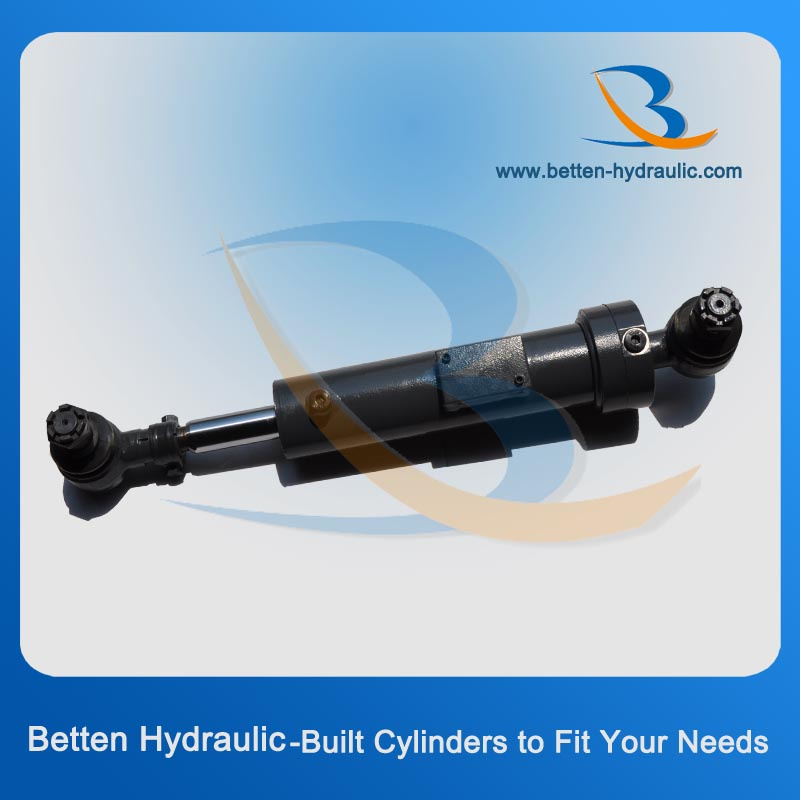

Stainless Steel Heading Machine Hydraulic Cylinder Supplier
| Price: |
US $ 50-100000/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BMTHY-1126 |
| Cylinder Case/Tube Material: |
Carbon Steel, Alloy Steel, Stainless Steel |
| Honed Tube: |
20-2000mm, Heat Treatment, Honing, Rolling |
| Piston Rod: |
10-1500mm, Tempering, Plated Nickel, Chrome or Cer |
| Working Pressure: |
5-300MPa |
| Seals: |
Parker, Merkel, Hallite |
| Surface Coating: |
Sandblasting, Primer Paint, Middle Paint, Finish |
| Available Temperature: |
-40ºC to +300ºC |
| Working Medium: |
Hydraulic Oil |
| Material: |
Stainless Steel |
| Structure: |
Piston Cylinder |
| Power: |
Hydraulic |
| Standard: |
Nonstandard |
| Pressure Direction: |
Double-acting Cylinder |
Product Description
Customer build is the first principle for Betten Hydraulic.
We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:
1,Bore Diameter;
2,Piston Diameter;
3,Stroke;
4,Working pressure;
5;Installation Distance
Our company Betten Hydraulic-Built Hydraulic Products to Fit Your Needs
As an experienced Hydraulic Cylinder Manufacturer and distributer, Betten Machinery is built to develop the overseas business of Boli Hydraulic & Pneumatic Technology Co., Ltd which is known as a professional manufacturer of Oil Cylinder,Pneumatic Cylinder, Hydraulic System and Related Spare Parts in East of China.

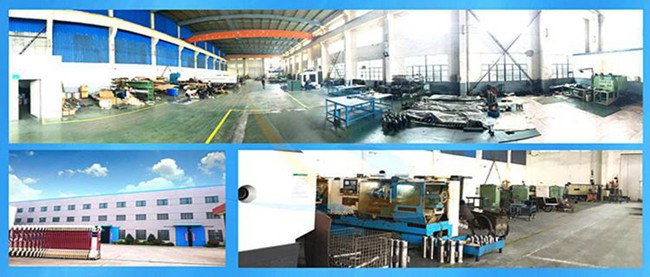

Our factory cover an area of over 5000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.
With the fast development in the past 20 years, we have gained much experience and technology in making various types of long hydraulic cylinder with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.Spare PartsPiston Rod, seal kits, spherical plain bearing, tubes/pipes, etc.
Our service 80% quality of REXROTH with 30% Price
Custom hydraulic cylinders to fit your need.Since 1990s, Betten Hydraulic Manufacturer team are becoming more and more skilled to provide small hydraulic ram solutions by satisfying the most strict customers and their requirements.
Each Betten Hydraulic Ram has suffered rigorous process and inspection to promise the good quality for our customer. 1.Design ServicesOur design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.
5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
6.Certification
Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.
Main Features
1. Seal kits: From USA, durable and hard-wearing to ensure the small hydraulic cylinder a long service life
2. Heat treatment: Quenching&Tempering which makes the piston rod super high hardness.
3. Cleaning: Ultrasonic cleaning.
4. Cutting: High precision provided by automatic roller cutting machine.
5. Testing: Ultrasonic detector, spectrograph, CMM, metallography, chrome thickness tester.
6. Advantage: Simple structure & reliable work, easy maintenance & diverse connecting ways of small hydraulic cylinder.
7. Plan: Different manufacturing plans for different customers.
8. MOQ: 10 PCS of small hydraulic cylinders
9. Lead time: 10~30 days depends on the small hydraulic cylinder quantity & whether customized.
10. Warranty: Change a new small hydraulic cylinder and we pay for the air freight in 2 years warranty time. Technical Data | Product | adjustable hydraulic cylinder for fitness |
| Stroke | 50mm-16000mm |
| Inside Cylinder Tube Dia. | 40 - 1000 mm (1.5 - 40 inch) |
| Liner material | copper (prolongs the life cycle of cylinder) |
| Hydraulic cylinder tube material | Carbon steel, Alloy steel, Stainless steel |
| Piston Rod Dia | :12 - 500 mm (1/2 - 20 inch)
Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra |
| Chome Plated | Cr, Ni or Ceramic |
| Design Pressure | Max 700 bar (10150 PSI) |
| Weight | Max 60 tons |
| Valves | SUN (USA),or famous Chinese brand with same quality to PARKER |
| Seals Type | PARKER (USA), MERKEL (Germany) or NOK (Japan) |
| Liner material | copper (prolongs the life cycle of cylinder) |
| Bearings | LONGXI (China) or SKF |
| Painting | follow with customer requirement or 3-coat marine painting |
| Certificate | DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS |
| Application | Engineering machinery (Excavator/ Forklift/ Cranes/ Tipper truck,etc), mine, metallurgy, shipping, water conservancy, etc. |
Package and delivery Delivery time depends on the destination and other factors, it may up to 7 work days.
In order to ensure you receive you order tax free upon import, we will declare it as a "Sample"with a lower value.This lower price does not reflect the total price you paid.
After we ship the goods, we will email you the shipping information, as well as tracking number. | WEIGHT | RECOMMENDED TRANSPORT MEANS | TRANSPORT TIME | COMMENTS |
| <50kg | express-UPS/DHL/FEDEX
door to door service | 3-7 days | fast
convenient
expensive
|
| 50-150kg | by air | 3-10 days | fast;
economic;
consignee has to do customs clearance |
| 150>kg | by sea | 10-50 days | slow;
economic;
it takes some time for customs declarance and clearance |
| 2x20' or 1x40' | by rail | 20-35 days | slow;
economic;
it takes some time for customs declarance and clearance;
only full container load accepted( MOQ:2x20' or 1x40' ) |
FAQ1. Are you trading company or manufacture?
We are a manufacture for Hydraulic Cylinders and shock absorber piston rod with more than 20 years' history.
2. Would you accept the production for small batches?
Of course, we would accept it. We also could provide the sample for you.
3. Hydraulic cylinder internal leakage?
There are 3 main reasons causing internal leakage: Overload,polishing is not well controlled,bad seal kits.As is known to all,vehicles in China are often overload,our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .
4. Does your piston rod get ruptured easily?
Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Wuxi Boli Hydraulic is known as a 20 years‘ Professional manufacturer of hydraulic cylinders, hydraulic jack, cardan shaft and spare parts in Wuxi, China around 170km from Shanghai Port. Our factory cover an area of over 5000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Boli has gained the certification of ISO ISO9001: 2008 and Product quality supervision and inspection center of Wuxi City. Meanwhile, Boli also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.
With the fast development in the past 10 years, we have gained much experience and technology in making various types of hydraulic system and cylinders with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco, BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
