Home Toolbuy Products Stainless Steel Hexagon Socket Head Machine Screw

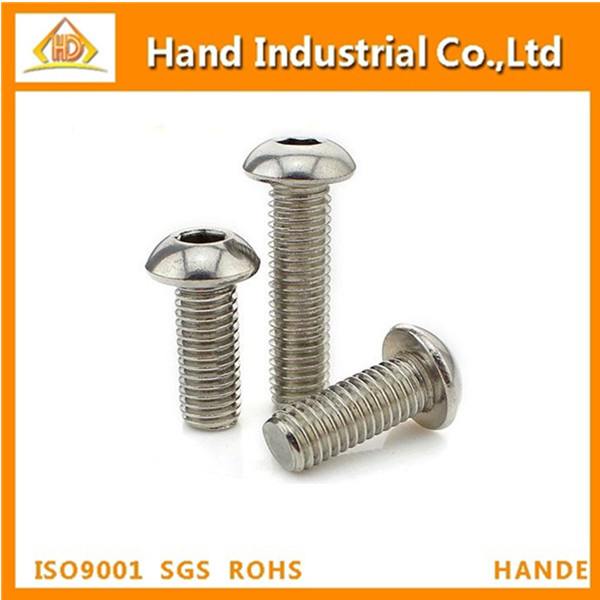

Stainless Steel Hexagon Socket Head Machine Screw

Stainless Steel Hexagon Socket Head Machine Screw
Price: US $ 0.001/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HD-BMS011-50
Name: Hexagon Socket Head Machine Screw
Size: M24-M64
Surface: Plain, Polishing, HDG, Zinc Plate
Factory Visit: Available
Length: Per Customer Requirement
Delivery: 30 Days
Thread Type: Machine Thread
Material: Stainless Steel
Type: Round Head
Connection: Common Bolt
Head Style: Round
Standard: Per Customers' Desire
Grade: A2;A4

Product Description

Hexagon Socket Head Machine Screw,Hexagon Socket Bolts, Button Head Screw
Ss 316Hexagon Socket Button Head Screw, Hex Socket Button Bolt
Ss 304 Hexagon Socket Button Head Screw, Hex Socket Button Bolt
Hexagon Socket Button Head Screw,
Allen Head Screw,Fastener Screw
Hex Socket Button Head Screw, Hexagon Socket Cup-head Screw,





Hex Socket Drive screws have a machine screw in imperial and metric threads, distinctive with their six sided hexagon recess in the head for driving with an allen key or hex driver tip. Socket head screws come in a range of head types and are for use in tapped housings, but can be used with nuts and washers. Common in the construction of machinery and in the marine industry. Commonly referred to as cap screws or socket screws.

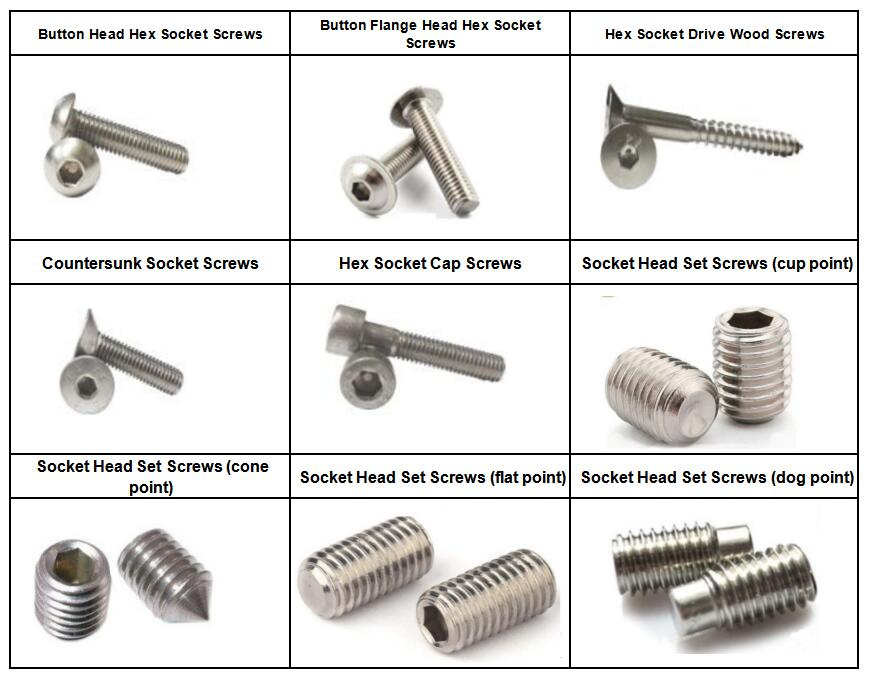

Stainless Steel Button Head Hex Socket Screws (Hex Socket Round Heads)
Button Head Socket Screws have a domed head with a hexagon socket (allen key) drive. Available in both 304 and 316 stainless steel with the distinctive hex drive recess. Ranging in diameter from M3 to M16 and made to Iso 7380 in metric, 3/16" to 3/4" UNC, 3/16" to 3/4" in UNF while ranging in length from 6mm to 80mm. Refer to the image above for countersink angle and tables below for head dimensions.


Stainless Steel Button Flange Head Hex Socket Screws
Button Flange Head Socket Screws have a domed head with a hexagon socket (allen key) drive. Available in both 304 and 316 stainless steel with the distinctive hex drive recess. Ranging in diameter from M3 to M12 and made to Iso 7380 in metric.


Stainless Steel Countersunk Socket Coach Screw
Stainless Steel Hex Socket Drive Wood Screws, Countersunk Head
Stainless Steel Countersunk Socket Coach Screws are made of 316 Stainless Steel and perfect for securing objects with high sideways loading onto timber. They have greater shear strength than regular wood screws, large diameters and a positive hex socket drive.



Stainless Steel Countersunk Socket Screws
Made to Din 7991 specifications in metric sizes, Hand's range of Countersunk Socket Screws are mostly fully threaded but part threaded in some sizes. Available in both 304 and 316 stainless steel with the distinctive hex drive recess hexagon socket (allen key) drive. Refer to the image above for the countersink angle and the tables below for the head dimensions.


Stainless Steel Hex Socket Cap Screws
Hex Socket Stainless Cap screws are the most common type of Stainless Socket Screw used and have a cylindrical head with high straight sides with a six sided hex recess for use with an allen key or hex driver tip.


Stainless Steel Socket Head Set Screws(Grub Screws )
Stainless Steel Grub Screws
Hand's Stainless Steel Grub Screws or Socket Head Set Screws are different kinds Point end(cup,dog,cone,plat) and metric sizes are made to Din 916,DIN 915,DIN914,DIN913 specifications.


StandardISO7380
MaterialSS304, SS316
DiameterM2.5~M16,1/8"~5/8"
Head shapesbutton head
Driver typeshex socket
Screw threadCoarse thread
Screw tipFlat point
Finish  Plain;black zinc;Electrophoretic;etc
FeaturesGood anti-corrosion ability
GradeA2, A4
CertificationISO9001:2008, SGS, RoHS, Bureau Veritas
OEM service is also available

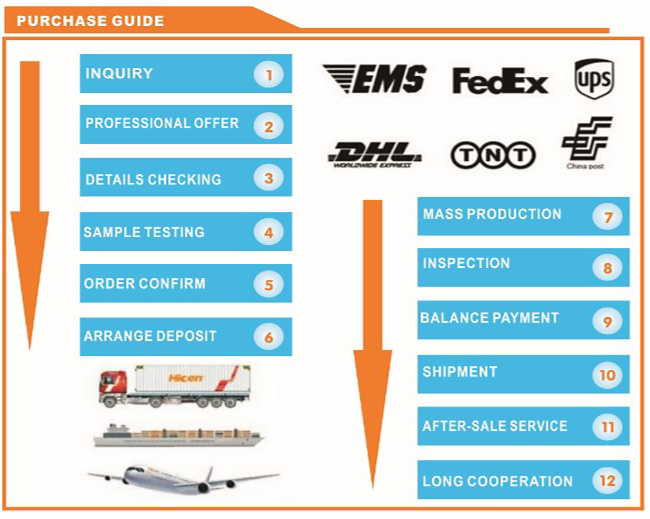

Purchase Guide:




Advantages:
1.Many products: Any type of stainless steel hardware can be supplied.
2.Good Service : We treat clients in great honest and sincere management is our top mission.
3.Good Quality:We have strict quality control system .Good reputation in the market.
4.OEM Accepted : We can produce as per your drawings or samples.
5.Shortest Delivery: We have large stock, 3 days for stock items,7-15days for production.
6.Low MOQ: It can meet your business very well.



Sample Charge:
1.Samples charge: According to your request;    Sampling time:5-7days
2.Samples charge: Free for Existing Mold;    Sampling time:3days

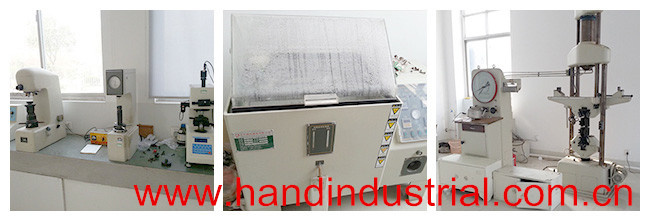

 Inspection Euipments:

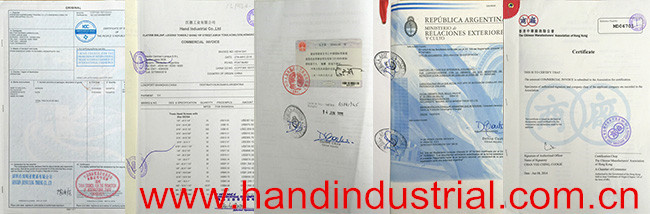

Certified Custom Clearance Docs:

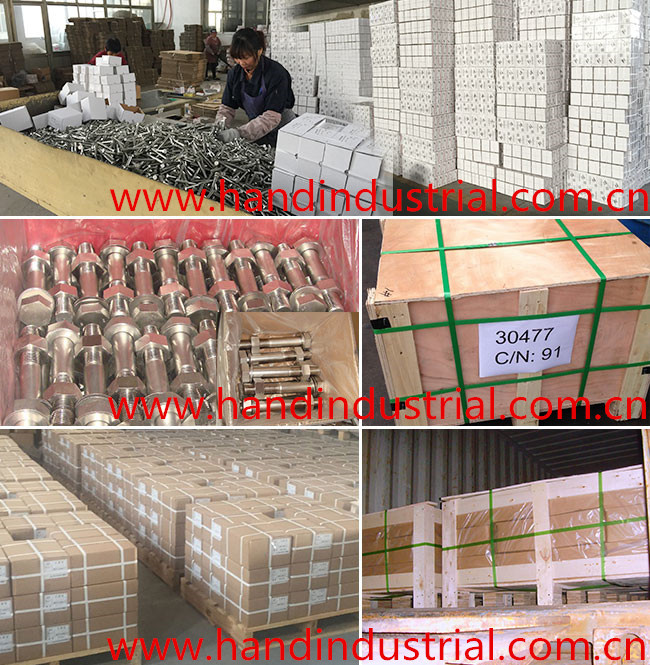

Packing Information:
1.Carton Size: 25*16*25CM;
2.Wooden Pallet/Case Size: 110*90*80CM;
3.Color Printed Box&Cartons can be made per customers' desire.







Company Information:
Hand Industrial  Ltd is established in 2010, and one professional manufacturer and supplier of stainless steel hardware. Our products contains stainless steel bolts and thread studs, stainless steel machine screws,stainless steel tapping screws and self drilling screws in different material from SS 304,SS 316,SS 316L,SS410,etc. We often make DIN. ANSI. BS. ISO. JIS standard and OEM service is available. Our products are very popular in European, Australia, North America, Mideast, and South East Asia and some African countries.



Exibition Show and Customer Visit Photo:




Contact Information:
LU PENG
SALES&MARKETING MANAGER
WWW.HANDINDUSTRIAL.COM.CN
HANDEGY.EN.MADE-IN-CHINA.COM




We can supply different sizes of super alloy steel hex bolts\hex socket bolts\threaded studs\hex nuts\plain washers.
We can supply different sizes of SS hex bolts\hex socket bolts\threaded nuts\hex nuts\plain washers.


Hand Industrial Co., Ltd is established in 2010, and one professional manufacturer and supplier of stainless steel hardwares.

Our products contains stainless steel security screws, stainless steel bolts and thread studs, stainless steel machine screws, stainless steel tapping screws and self drilling screws, CNC parts super alloy bolts&nuts in different material.

Our raw material includes normal stainless steel, such as: SS201, SS304, SS304L, SS316, SS316L, SS317L, SS321\SS347\SS347H\SS310S\2520, and super alloy: 1.4529, 1.4539, 1.4460, 1.4462, 1.450, 1.4980(alloy 286), 2.4602, 2.4605, 2.4610, Incoloy(825\800\800H), Inconel(600\601\625\718), Monel400, and Duplex steel series 2205(F51\S31803\S32205), 2507(F53\S32750).

We often make DIN. ANSI. BS. ISO. JIS standard and OEM service is available. Our products are widely exporting to European, Australia, North America, South East Asia, etc.

We have below advantages:

15 days delivery for small order, guaranteed

SGS certificate and RoHS requirement of European Union6. Response within 12 hours

Our products applied in famous international brand:

HUAWEI, ALSTON

Free Samples

Welcome to visit our company and develop business with you on mutual benefits in future.
