Stainless Steel Hydraulic Quick Coupling Quick Disconnect Coupling
| Price: |
US $ 7.0-7.2/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
KZF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread Size: |
1/8"~2" |
| Structure: |
Universal |
| Flexible Or Rigid: |
Rigid |
| Material: |
Carbon Steel |
| Standard: |
Standard |
| Connection: |
Locking Balls |
Product Description
Feature:
1, Interchangeable with PARKER 60, FASTER HNV, HANSEN HK.
2, 12 years experience of hydraulic quick coupling.
3, 1 year's guarantee.
4, 10% lower.
5, To make sure, click us.

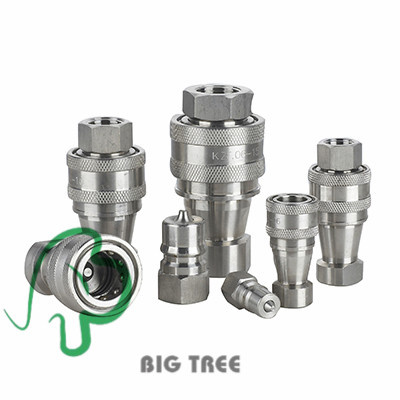

KZF Quick Coupling(Stainless)
Applications: KZF Stainless steel quick coupling series are used across the spectrum of hydraulic applications. Their general solidity permits the strenuous applications in aeronautics, electronic, chemical and automotive industry.
KZF Series coupling' feature:
1. Comply to ISO7241-B standard
2. Machined from SS304,SS316, support more corrosion and food classic environment
3. Precise tooling make sure the flow smooth ,minimize the flow drop
4. Double O-ring seal design for low pressure or vacuum applications
5. Protective dust plug is recommended for extend the coupler working life
6. Interchangeable with PARKER 60, FASTER HNV, HANSEN HK

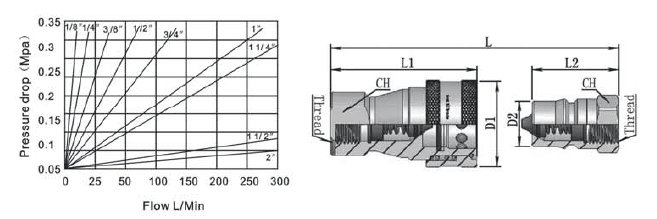

| PART NO. | ISO | Thread | L | L1 | L2 | D1 | D2 | Ch1 | Ch2 |
| KZF-02 | 6.3 | 1/4 | 72 | 58 | 36 | 28 | 14.2 | 19 | 19 |
| KZF-03 | 10 | 3/8 | 80.5 | 65 | 40 | 35 | 19.1 | 22 | 22 |
| KZF-04 | 12.5 | 1/2 | 88.5 | 72 | 44 | 45 | 23.5 | 29 | 29 |
| KZF-06 | 20 | 3/4 | 104 | 88 | 52 | 55 | 31.4 | 36 | 36 |
| KZF-08 | 25 | 1 | 123 | 102 | 62 | 65 | 37.8 | 41 | 41 |
| KZF-10 | 32.5 | 1 1/4 | 140 | 115 | 70 | 77 |
| 54 | 54 |
| KZF-12 | 40 | 1 1/2 | 150 | 124 | 75 | 88 |
| 63 | 63 |
| KZF-16 | 50 | 2 | 160 | 132 | 80 | 108 |
| 77 | 77 |
(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.
(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.
(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.
(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
If you are interested in our products or company, or if you have some questions about my product, please don't hesitate to contact with me, any suggestion about our company or our product is appreciated.
Ningbo big tree industrial is metal fitting expert, special in design and produce of stainless/brass/steel ferrule fitting, hose fitting, adapter and quick coupling for hydraulic and pneumatic, products are designed according ASTM and ISO7241 standard, interchangeable with PARKER, EATON, with 12 years development, now we have 80+worker, 4500square workshop service customer in oil, gas, ship, vehicle and automatic equipment industry
Our advantage
1. The tooling process design, CAD+PRO E, the basic of top quality and cost-save
2 Skilled worker, professional in forged, Casting CNC machining, Mill, Wire-electrode expert
3 High precise and efficient tooling equipment, precise to 0.02mm, dailay output 2Tons
4. Rich experience sells team know what you what
5. Satisfied quality with at least 10% price lower
Ningbo as the mould center, injection center and metal machining center of China, there are more than 2500+ factory engaged in the pneumatic&hydraulic parts, depend on this we also to be purchase agent, inspection and export for 30+ national customer more than 300+prdouducts including Hydraulic valve, hydraulic hose, hydraulic cylinder, pressure gauge, clamp, solenoid valve and platic fitting etcwe try to be your own office in China
Safe your business, Save your cost, Service to your success, when you need to be sure, contact us!
