Stainless Steel Metal Hose with Braids for Water

Prod Model:	metal hose
Name:	Stainless Steel Metal Hose with Braids for Water
Size:	Dn6-Dn600
Braids:	Double or Single Layer Braids
Usage:	Protect Hose
Steel Grade:	SUS304, Galvanized Steel
No.of Wires:	5~18
No.of Carriers:	24~144
Unit Weight (Kg/M):	0.15~9
Construction:	: Annular / Close Pitch
Braid Available:	: 304 / 316 Stainless Ste
Standard:	JIS
Diameter:	426mm
Cross-Section Shape:	Round
Connection Type:	Flange

Product Description

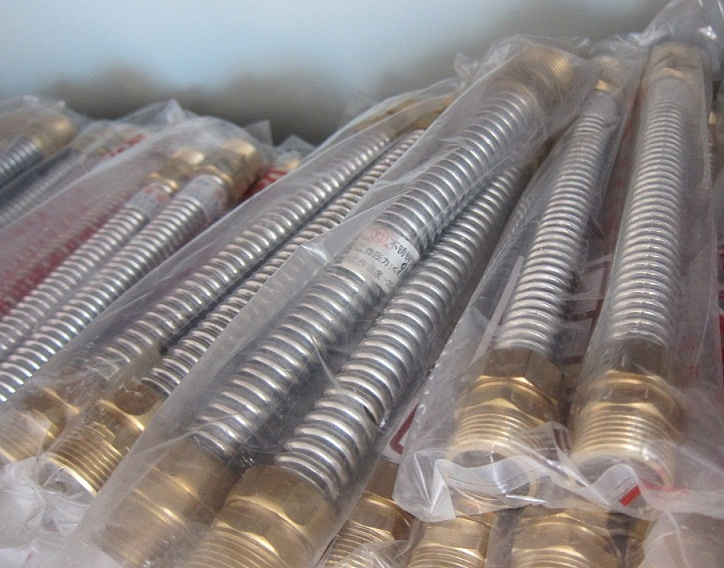

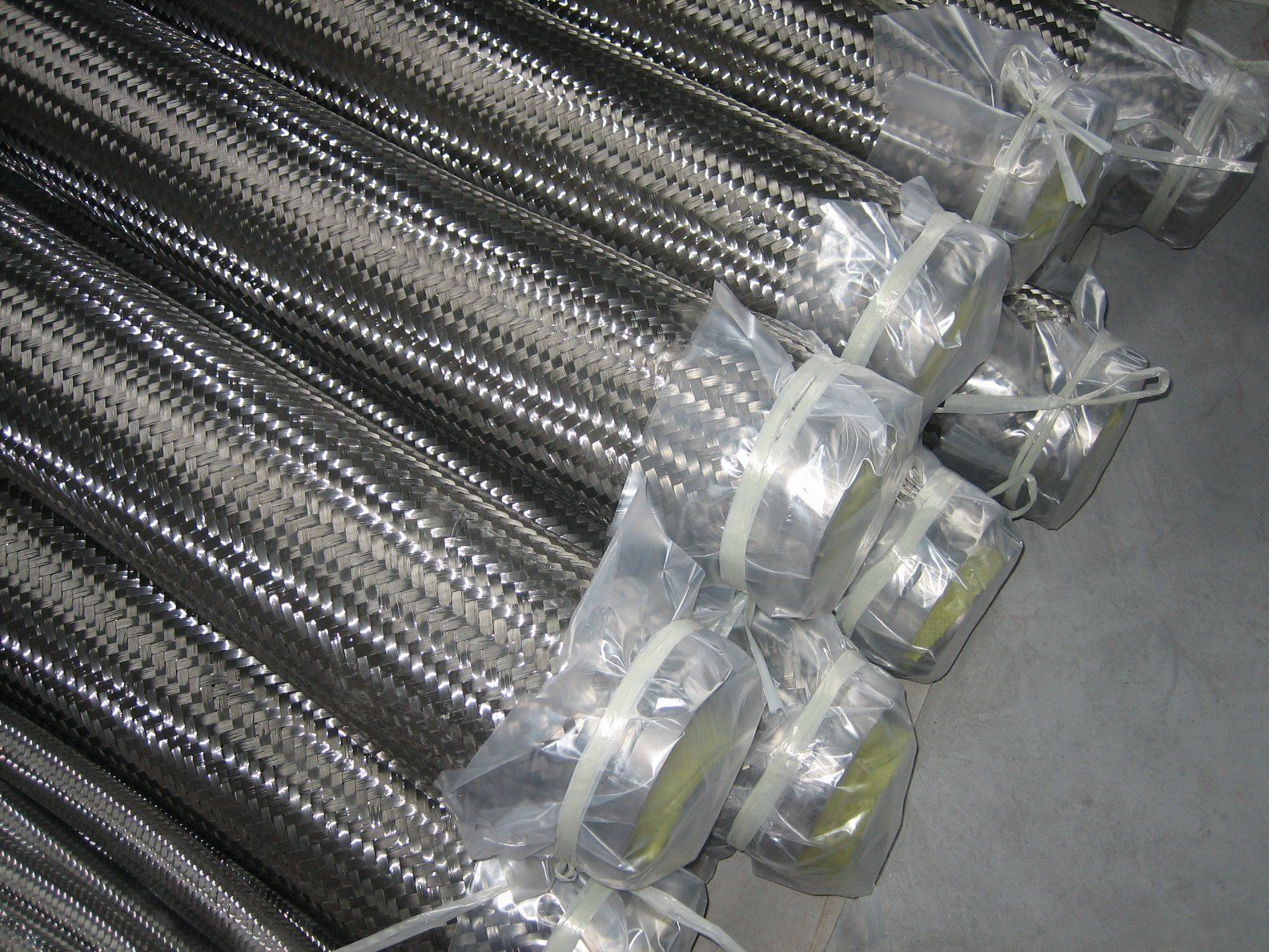

Product pictures:


Products description
the size range: DN6 till DN600
Application:water,  gas and steam
Hose type:annular corrugated
Construction: Annular / Close Pitch
Profile: Medium Flexibility / Medium Pressure
Tube Available: 304 / 316 Stainless Steel
Braid Available: 304 / 316 Stainless Steel
Braided mesh layer: single layer or double layers
Connect type: flange/thread/quick coupling
Thread Standard: NPT/BFlange standard: ANSI,JIS,DIN,GOST etc.SP
Flange material: stainless steel or carbon steel.

Feature of hose
Flexibility	medium
Cycle Life	high
Pressingure Rating	medium
Chemical Resistance	high
Wall Thickness	high



Construction of Flexible Metal Hose
Inner Core:
          Corrugated Stainless Steel
·         Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
·         Stainless steel tubing formed into corrugations parallel to one another
·         Helical / Convoluted option available upon request
Outer Core:
           Braided Stainless Steel Layers
·          Purchase corrugated core hose with no layers, single or double braided
·          Flexible metal hose outer braid layers made from 304 stainless steel
·         See braid layer code key at the bottom of this table
Benefits of Flexible Metal Hose
·          All metal hose - corrugated stainless steel core, sold standalone or with braided steel layers
·        Pressure tolerances include full vacuum to those listed in the spec table below
·        Application Temperature ratings from Cryogenic to 1500° F
·        Meets or exceeds ISO 10380 at maximum working pressure


Parameters of the hose
NO.	DN	ID	OD	Pitch distance	Wall thickness	theoretical weight (KG/M)
1	12	11.6	18	3	0.2	0.17
2	15	14.4	21.5	3.5	0.3	0.28
3	18	17.4	25.5	3.5	0.3	0.34
4	20	19.4	27	4.5	0.3	0.38
5	25	24.4	32.5	5	0.3	0.46
6	32	31.4	40	5.5	0.3	0.6
7	40	39.4	50	6	0.3	0.75
8	50	49.4	63	7.5	0.3	0.9
9	65	64.4	81	9	0.3	1.6
10	80	79.2	98	10.5	0.4	2
11	100	99.2	120	13	0.4	2.6
12	125	124	150	14.5	0.5	3.9
13	150	149	180	17.5	0.5	4.3
14	200	198.8	240	24	0.6	6.8
15	250	248.4	300	28	0.8	11
16	300	298	355	33.5	1	17.5
17	350	348	410	35	1	20
18	400	397.6	460	40	1.2	25
19	450	447.6	489	45	1.2	29
20	500	497.6	545	45	1.2	33.5
21	600	597.6	650	50	1.2	40.5

Company information


We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, etc..
The sizes are as follows:
Square lock hose and machinery:ID6-ID103
Interlock hose and machinery:ID3-ID350mm on different machine
Annular and corrugated metal hose: ID8 till ID600 on different machine

FAQ for metal hose

Q: Why so many suppliers choose us?
A:Because we are one of most professional manufacturer of the metal hose with more than 25 years of experience
Q:What sizes can you make?
A: all sizes from DN6 up to DN400
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customerized our hose according to your requirement
We need to know following information to give you our best quotation for the hoses:
A: Technical drawings
B: Material of the hose :sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D:Length and Diameter
E:Working pressure and temperature of the hose
F: Application of the hose
