Stainless Steel Pipe Cutting Machine Stationary Pipe Cutter Cold Cutting
| Price: |
US $ 4000-4600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
E9 60-225mm |
| Cutting Type: |
Metal |
| Cutting Model: |
Blade |
| Cutting Tool: |
Saw |
Product Description
Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring

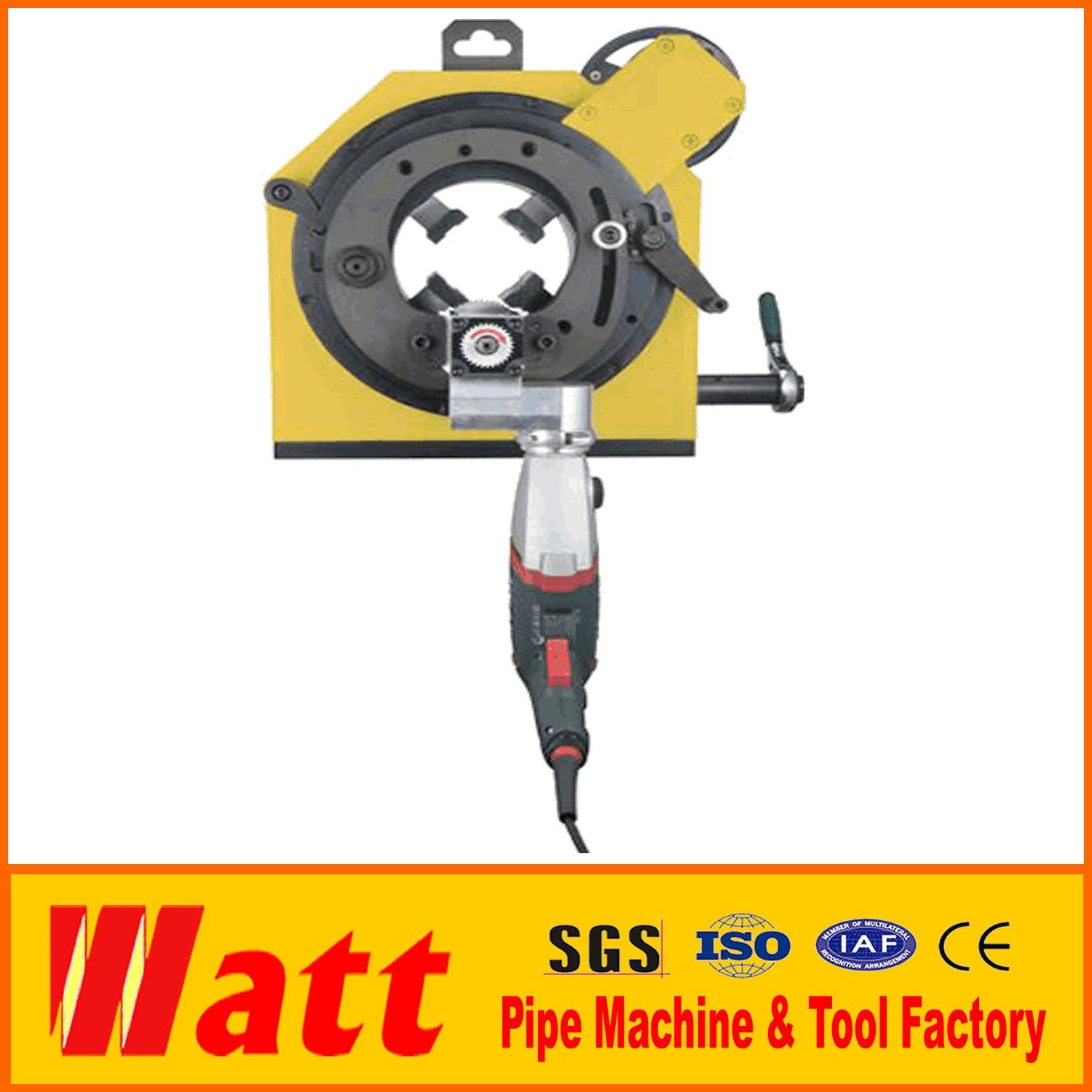

Product DescriptionOrbital Pipe Cutting Machine
Model: E6
Cutting range: 30-170mm
Wall thickness: 1-4mm for SS, 2-12mm for cs Product Show
Production Description
This series is Welding Preparation Manual Orbital Pipe Cutting Machine with the following advantages:- High speed to cut the pipe
- Pipe cutting is to rotate machine automatically
- Use round Saw with 1300W electric motor to cut
- Pipe will be cut after the machine rotated 360 degree
- The powerful and stable electric motor have 6 choices;
- Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
- Angle:Beveling angle as per your required.
- Manual feed by hand wheel,can control the cutting speed,operate easily.
Machine Selection| Model | Range
OD(mm) | Wallthickness(mm) | Cut Motor | Feed Motor |
| CS | SS |
| R4 | Φ15-120 | ≤12mm | ≤4mm | Metabo,
220-230V,
50-60HZ,
1Phase
1.1KW | Manual |
| E4 | Φ15-120 | ≤12mm | ≤4mm |
| E6 | Φ30-170 | ≤12mm | ≤4mm |
| E9 | Φ60-225 | ≤12mm | ≤4mm |
| E13 | Φ140-330 | ≤12mm | ≤4mm |
| E16 | Φ215-420 | ≤12mm | ≤4mm |
| E20 | Φ315-520 | ≤12mm | ≤4mm |
| E24 | Φ346-630 | ≤12mm | ≤4mm |
| E30 | Φ486-760 | ≤12mm | ≤4mm |
Order Guide
Before you place order to us, please let us know the following information:- Choose the right Model
- Confirm your electric power supply ( Voltage, frequency and phase)
- Confirm the beveling angel required
- Confirm the welding joint required (U, V, Double V or Compound preparation)
- Advise your pipe material ( Carbon steel, stainless steel or others)
- Other special demands about machine
- The spare parts needed
- Advise your pipe wall thickness

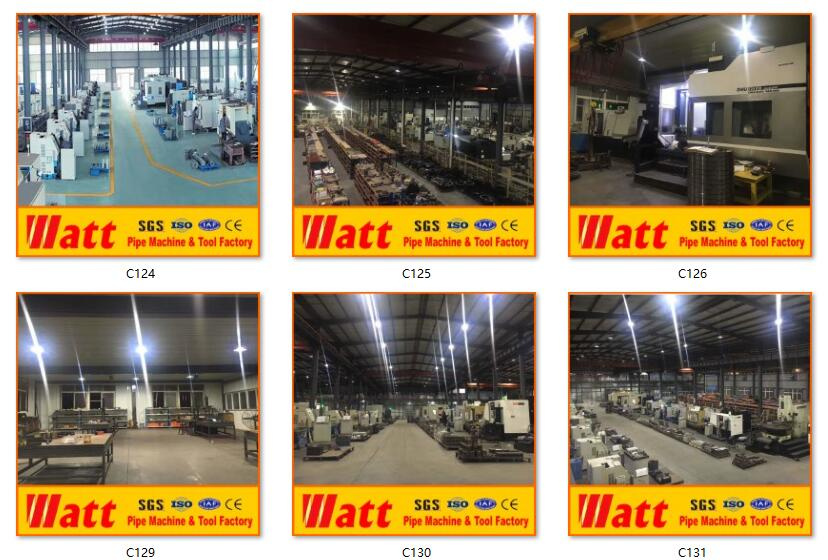

My workshop
