| Prod Model: |
clamp |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamp: |
Stainless Steel 304 |
| Clamp Bearing Pressure: |
Less Than24bars |
| Stainless Steel Clamp Size: |
1/2" to 10" |
| Standard Or Nonstandard: |
3A, ISO, SMS |
| Place Of Origin: |
Shanghai China |
| Port Size: |
Dn15-200 & 1/2''-10'' |
| Stainless Steel Clamp Ferrule: |
Ss304/Ss316 |
| Polished: |
Inner and Outer Polished |
| Gasket: |
Silicon, PTFE, Teflon, EPDM |
| Stainless Steel Clamp: |
Beverage, Dairy, Beer, Pharmacy, Chemical I |
| Material: |
Stainless Steel |
| Connection: |
Clamps |
Product Description

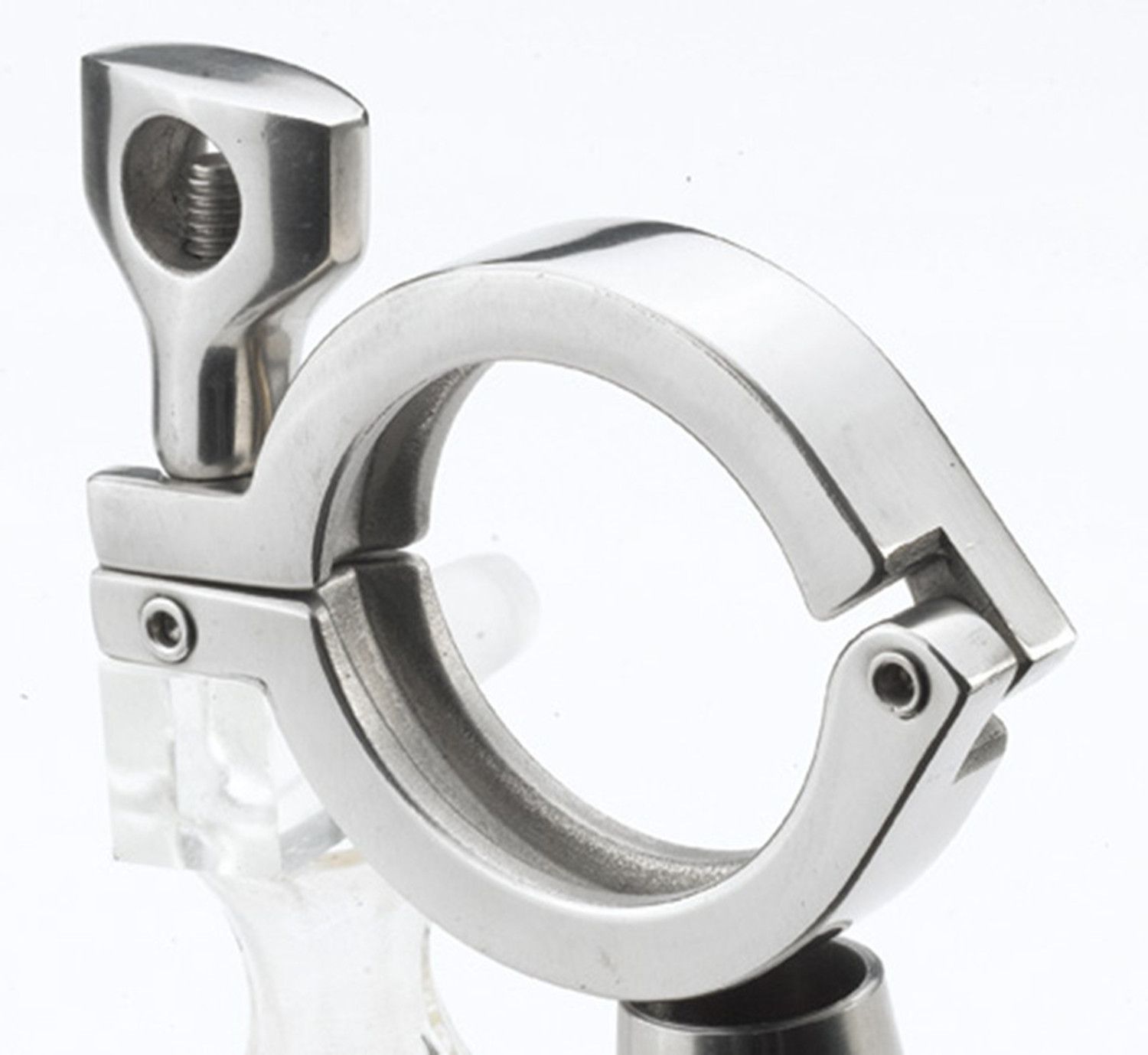

Sanitary Stainless Steel Clamp
Stainless Steel Sanitary Clamp Ferrule Manufacture
1) Specification: DN15-200 & 1/2''-8''
2) Standard: DIN, SMS, ISO, 3A, BPE, CMP, IDF
3) Material: Stainless steel 304, 316L
4) Connection: Welded, quick-installed, threaded
5) Polish: Mirror Polish, dull Polish, sub-light, 240G, 400G, tumble.
6) Applications: Pharmacy, beer, food, petroleum, dairy beverage, cosmetics.
Sanitary Stainless Steel Clamp
| SR.NO. | SIZE | MOQ / PCS | Unit weight |
| 1 | 1/2" | 50 | 0.18 |
| 2 | 3/4" | 50 | 0.18 |
| 3 | 1" | 50 | 0.22 |
| 4 | 1.5" | 50 | 0.22 |
| 5 | 2" | 50 | 0.255 |
| 6 | 2.5" | 50 | 0.335 |
| 7 | 3" | 50 | 0.38 |
| 8 | 4" | 50 | 0.49 |
| 9 | 5" | 50 | |
| 10 | 6" | 30 | |
| 11 | 7" | 30 | |
| 12 | 8" | 20 | |
| 13 | 10" | 10 | |
Shanghai Kaiquan Machine Valve Co., Ltd was founded in the 90s of last century, is one of the professional enterprises that produces, sales of the hygiene grade pipe fittings valves, the stainless steel industrial pipeline fittings, all products of hygiene grade can be made according to the different smooth degrees, materials and industrial standards (ISO, DIN, IDF, SMS, 3A), etc., the industrial pipe fittings can be manufactured according to the standards such as GB, HG, HGJ, SHJ and API, ANSI, MSS-SP and BS, NID, JIS, NF, every product technology reach the international advanced level, the products are applied to relevant industrial fields such as beer, dairy products, pharmacy, beverage, food, petroleum, chemical industry, papermaking, natural gas extensively.
The company absorbed the domestic and international advanced technology constantly from established to now, introduced the data lates, casting machines and other machining, inspection & test equipments with international advanced level, guarantee the stability and dependability of the products, successively past the CE, ISO9001: 2008 international quality management system authentication. "Kaiquan" brand serial products sold well both at home and abroad by scientific innovation, strict enterprising management, perfect execution, and obtained the customers' trusts and reputations from all over the world! The company takes the brand management development way in recent years, start the qualitative control in an all-round way, promote the brand quality by brand image, product design and quality, market expansion, sales service and informationization, etc. Whole courses, so as to create the market competitiveness of enterprise.
Stainless Steel Sanitary Clamp Ferrule Manufacture
Shanghai Kaiquan Machine Valve Co., Ltd., located in the South of Shanghai, is a modern enterprise which integrates scientific research and production. We are one of the few manufacturers which are capable of producing high-precision stainless steel sanitary equipment and pipeline connection parts.
Our products adopt production craft and technology from the EU. Meanwhile, we import foreign advanced numerically controlled machine tools and other process/inspection units. Our company specializes in producing sanitary stainless steel fluid equipment, valves and pipeline connection units. All the products are strictly manufactured according to different standards (such as ISO, DIN, IDF, SMS and 3A). With the efforts of all scientific research personnel, we are keeping on developing new products. Our products are widely used in the fields of food, pharmaceuticals, dairy, beer, beverage and chemical industry. All the technical aspects have reached the international leading levels and are in conformance with GMP requirements. Large quantities of our products are exported to the USA, Europe, the Middle East, Southeast Asia and other countries and regions all over the world.
"Honesty, open-minded and development" is our operation conception. We will appreciate clients' support and valuable suggestions. All those inspire KAIQUAN people to perfectly combine high-quality materials, sophisticated designs, strictly manufacture process and quality assurance systems. The trust of our clients makes us provide them with the best products.
Our mission: Devoted to Human Being's health
Our target: Developing superior technology and pursuing excellence
Our culture: Innovation, unity and practicality.
With full passions, KAIQUAN welcomes your participation and sincerely awaits your visiting!
