Stainless Steel Thead Ball Valve 3PC Q11f-16p (1/2"-4")
| Price: |
US $ 15-370/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Q11F-16P |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Application: |
Household Usage |
Product Description

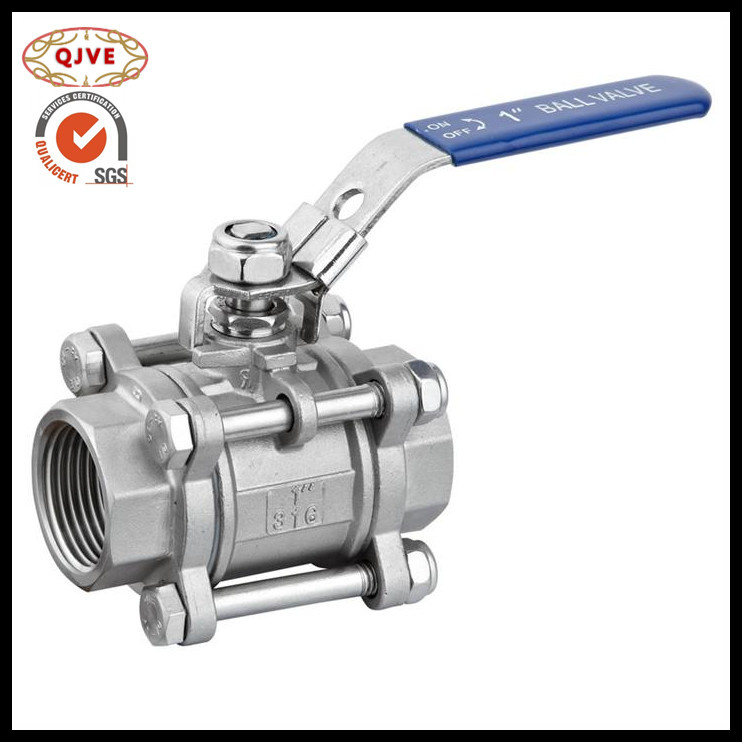

WB-03 3PC female threaded stainless steel ball valve
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
| 1 | CAP | CF8M/CF8/WCB | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS/SS316 | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS/SS316 | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS/SS316 | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | CF8M/CF8/WCB | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | | | |
| DN | G | D | L | W | H |
| 15 | 1/2" | 15 | 70 | 105 | 54 |
| 20 | 3/4" | 20 | 84 | 105 | 63 |
| 25 | 1" | 25 | 94 | 125 | 63 |
| 32 | 11/4" | 32 | 112.5 | 140 | 84.5 |
| 40 | 11/2" | 38 | 123 | 162 | 93 |
| 50 | 2" | 49 | 145 | 162 | 101.5 |
| 65 | 21/2" | 65 | 181 | 215 | 120 |
| 80 | 3" | 80 | 186 | 224 | 125 |
| 100 | 4" | 100 | 220 | 251 | 180 |
Our company's services:
1. Our company bears the Marine expenses and the customs and taxes;
2. We can provide the invoice to your company.
3. Product quality guarantee: Our products will have inspection reports from relevant departments and only sell products that are qualified for inspection. If there is no damage to the company within three months, our company will change the products to your company, and the expenses incurred will be borne by our company.
4. If you have problems in installation and use, you can contact our company director at any time to provide professional guidance and solutions for free, so as to solve the problem for your company.
5. Our delivery date is within 20 to 45 days.
Our company's advantages:
1. Our company has many customers in China, so we have enough experience and capacity to help you solve a series of problems such as purchasing, installation and use.
2. The company has its own workshop production, which can make large-scale production, guarantee product quality and adequate quantity of products;
3. The company personnel structure is simple, the reaction speed is fast, in the process of cooperation with your company, if there is a problem, can be solved in time, and the process is simple and quick to solve the problem;
4. Your company will work with us in a simple way to pay the price of the products. Our company will solve the transportation, invoice, customs and tax use and subsequent installation and use of the problem solutions.
5, because our company hope to long-term cooperation, so in terms of price to give the most favorable of the lowest price, profit, and with all matters of the heart in the pre-sale and after-sales service for your company services, increase the value of our company.
Our company's introduction:Shanghai Qingjiang Valve Manufacturing Co, . Ltd. Is located in Shanghai Fengxian Industrial Zone, is a commitment to scientific research, production, sales of professional valve manufacturer. Company to an international metropolis -- Shanghai as the basis, make full use of regional advantages and industry, is committed to the introduction of international advanced management experience and technological innovation, and actively promote the enterprise comprehensive strength, and expand market share, formed with the gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, balance valve, relief valve, regulating valve and so on more than 60 series nearly 1000 varieties of products structure. Products nominal diameter is 1/4"-80" (DN6-2600mm) pressure 0.1MPa - 32.0MPa, temperature -196-595º C. Valve of the main materials are cast iron, ductile iron, carbon steel, alloy steel, stainless steel, copper and other materials, and according to the special needs of customers and manufacture of metal products. Widely used in construction, municipal, water supply and drainage, HVAC, fire, electricity, metallurgical, petrochemical, gas and other industries, and exported to the Middle East. Europe and the United States and Southeast Asia and other countries and regions. High quality wins the customer the consistent high praise and trust.
Shanghai Qingjiang Valve Manufacturing Co, . Ltd. Is located in Shanghai Fengxian Industrial Zone, is a commitment to scientific research, production, sales of professional valve manufacturer.
The company has a technical department, production department, marketing department, quality department, financial department enterprise management agencies. Built to international advanced level of processing center, spraying line, CNC lathes, plasma welding, chemical composition analysis, mechanical property testing, hardness testing, spectral analysis, nondestructive testing, thickness testing equipment more than 320 Taiwan (sets) of sophisticated processing, testing equipment and improve the detection process, for the production of high quality valves products to provide a strong guarantee.
Company to an international metropolis -- Shanghai as the basis, make full use of regional advantages and industry, is committed to the introduction of international advanced management experience and technological innovation, and actively promote the enterprise comprehensive strength, and expand market share, formed with the gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, balance valve, relief valve, regulating valve and so on more than 60 series nearly 1000 varieties of products structure. Products nominal diameter is 1/4"-80" (DN6-2600mm) pressure 0.1MPa - 32.0MPa, temperature -196-595º C. Valve of the main materials are cast iron, ductile iron, carbon steel, alloy steel, stainless steel, copper and other materials, and according to the special needs of customers and manufacture of metal products. Widely used in construction, municipal, water supply and drainage, HVAC, fire, electricity, metallurgical, petrochemical, gas and other industries, and exported to the Middle East. Europe and the United States and Southeast Asia and other countries and regions. High quality wins the customer the consistent high praise and trust.
New century Qingjiang Valve will be the spirit of " forever we cherish human harmony with nature, for which we in the water industry continue to strive to "business philosophy, and actively expand the market both at home and abroad, and create new brilliance in the twenty-first Century!
