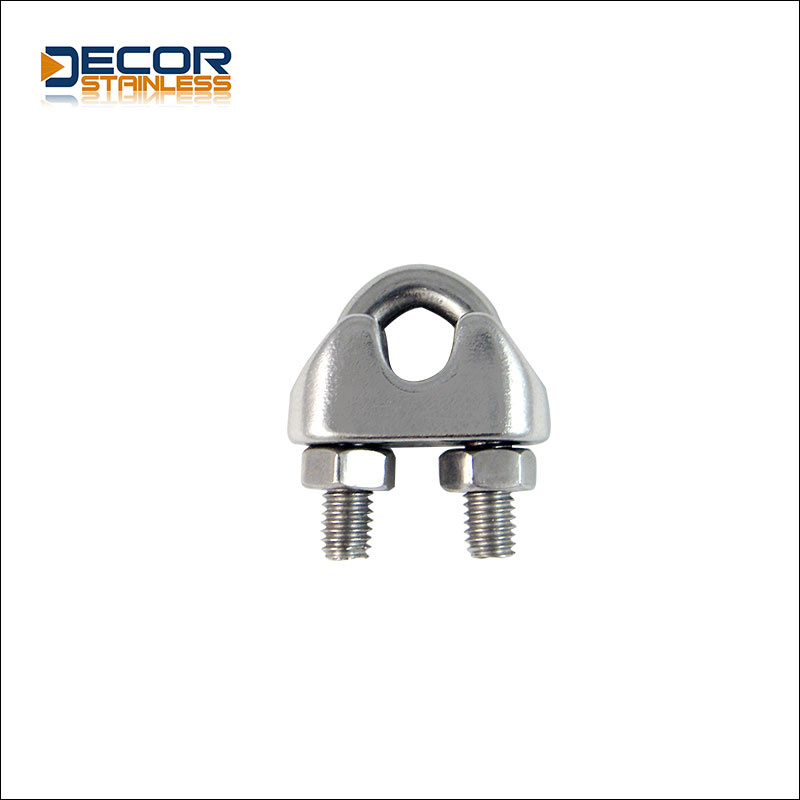

Stainless Steel Wire Rope Clip
| Price: |
US $ 0.01/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
DECOR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Silver |
| Surface Treatment: |
Highly Polished or Hot Dipped/Electro Galvanized |
| Wire Rope Clip: |
DIN 741 |
| Design: |
OEM Services Provided |
| Advantage: |
Fast Delivery |
| Sizes: |
From 3mm to 34mm |
| Drawing: |
CAD |
| Certification: |
SGS&TUV |
| Brand: |
Decor |
| Service: |
One Stop Shopping |
Product Description
Stainless Steel Wire Rope Clip With Full Product LineProduct Name | Stainless steel wire rope clip |
Material | stainless steel 316 or 304 or carbon |
Surface finish | highly polish or hot dip galvanized or electro galvanized |
Color | Nickel White |
Standard | DIN741, Japan type, US type and wire rope clip precision cast |
Advantage | Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. |
Thread | coarse, fine |
Used | These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. |
| Dimension | A | B | C | D |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 3 | 4 | 16 | 9 | 3 |
| 5 | 5 | 19 | 11 | 5 |
| 6 | 5 | 23 | 13 | 6 |
| 8 | 6 | 28 | 16 | 8 |
| 10 | 8 | 34 | 19 | 10 |
| 11 | 8 | 36 | 20 | 11 |
| 13 | 10 | 45 | 24 | 13 |
| 14 | 10 | 47 | 25 | 14 |
| 16 | 12 | 51 | 29 | 16 |
| 19 | 12 | 63 | 32 | 19 |
| 22 | 14 | 71 | 37 | 22 |
| 26 | 14 | 81 | 41 | 26 |
| 34 | 16 | 104 | 52 | 34 |
Welcome to Decorstainless!
Decorstainless offer a wide range of corrosion resistant stainless steel products, and our main purpose is to present the excellent customer service and we strive to offer high quality dependable and innovative products through the latest technology and most advanced manufacturing methods and facilities in China.
Our product range includes:
Cable Railing System
Mainly assemble with wire rope, such as turnbuckles, tensioners, swageless terminals, ferrules and so on.
Handrail System
Accessories of handrail/balustrades, such as glass clamps, elbows, end caps, flush joiners, brackets and so on. Used for tube 33.7mm, 42.4mm, 48.3mm, and 50.8mm.

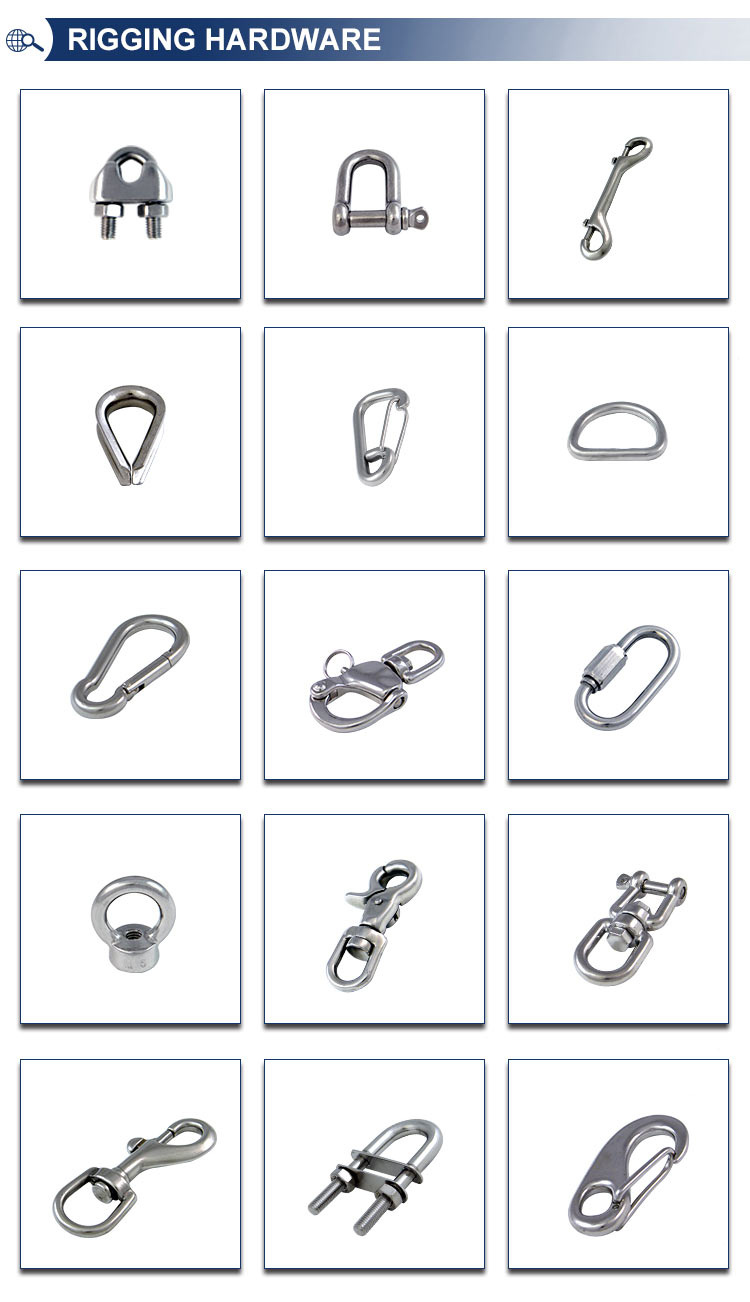

Rigging Hardware
Shackles, thimbles, spring hook, quick link, eye bolt and eye nut, U bolt, blocks and so on.
Marine hardware
Used for kinds of yachts, sailing boats and fishing boats, such as anchors, chocks, cleats, bollards, top cap and top slide, deck hinges, railing fittings, deck fillers, through hull, rod holders and so on.
Wire rope&Chain
Kinds of construction of wire rope 1X19, 1X7, 7X7, 7X19, coated wire rope are delivered upon required specification. Different standard chains such as DIN, Australian, Japanese, Korean, ASTM and NACM.
Hand tool
Crimp connection pliers, hydraulic crimping tool, bolt cutters and wire rope cutters.
Besides, our experienced engineers can develop the products and manufacture in accordance with samples, drawings or only ideas.
In today's ever-changing world of business, one thing remains constant our focus to maintain customer's satisfaction is paramount. We strive to make doing business with us easy for every customer, near or far, big or small, new or old. Also your suggestions for improving an existing product, or informing us of your needs for new, innovative products are always welcome.
If you don't find what you need in our website, please let us know what you're looking for chances are we can adapt an existing product to meet your needs, or possibly design a new product to fill a void in the existing market.
The Value of Decorstainless:
Quality and Credit are life
Creating Successful Customers
Working in serious and being in honest.
