| Prod Model: |
FY-STC |
| Min Collapsed Heght: |
30mm |
| Max Collapsed Height: |
32mm |
| Capacity: |
5ton - 200ton |
| Color: |
Yellow |
| Product Name: |
Stc Series Super Low Height Cylinder |
| Shaft Diameter: |
21mm-132mm |
| Closed Height(mm: |
33-100 |
| Certification: |
Ce, ISO9001:2008 |
| Weight(Kg): |
1.0-26.3 |
| Warranty: |
2 Year |
| Material: |
Steel |
| Structure: |
Piston Cylinder |
| Power: |
Hydraulic |
| Standard: |
Standard |
| Pressure Direction: |
Single-acting Cylinder |
| Usage: |
Lifting, Supporting and Jacking |
Product Description
Super Low Height Super High Pressure Hydraulic Cylinder

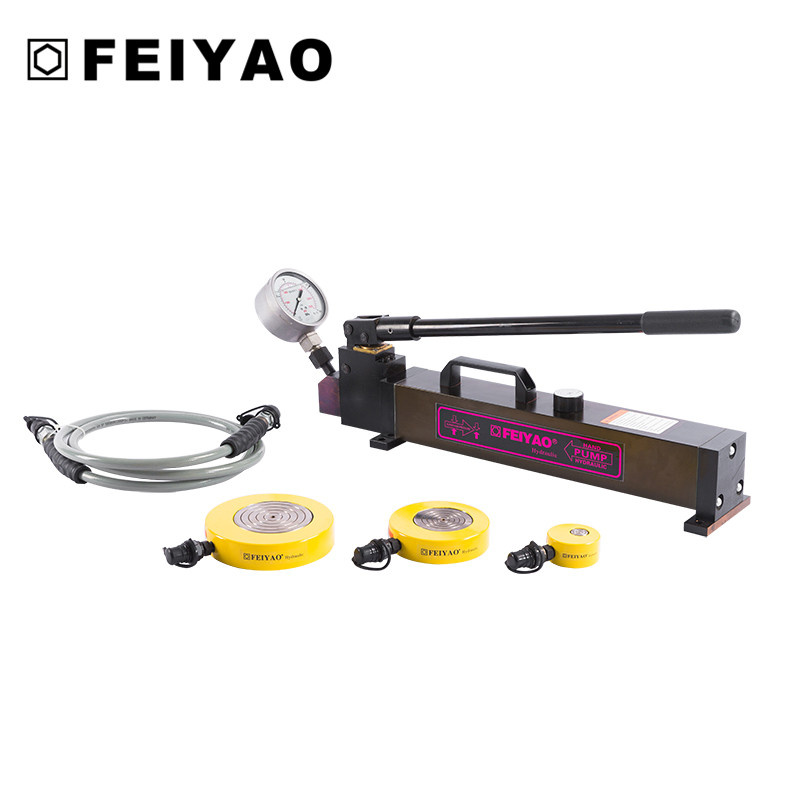

Features:1. with lowest collapsed height on the market, allowing access to confined areas, for low increments
lifts. Use with hand pump at 1500 bar or 21,750 psi.
2. Maximum plunger tilt angle is 4 degree.
3. Dust-proof design, reduces contamination and extend cylinder life.
4. Single acting, load return.
5. Working pressure:700bar.

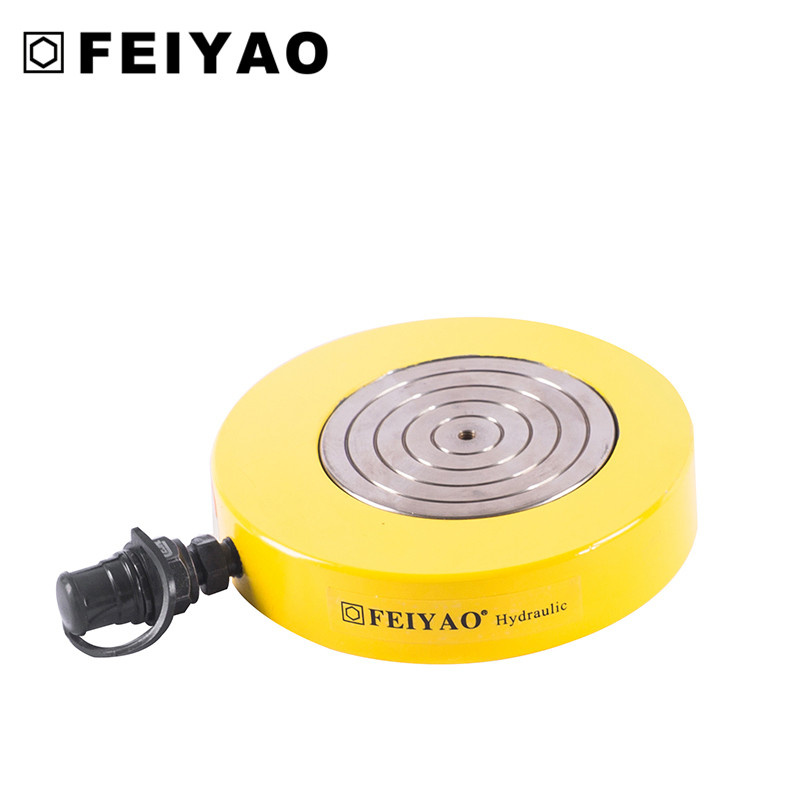

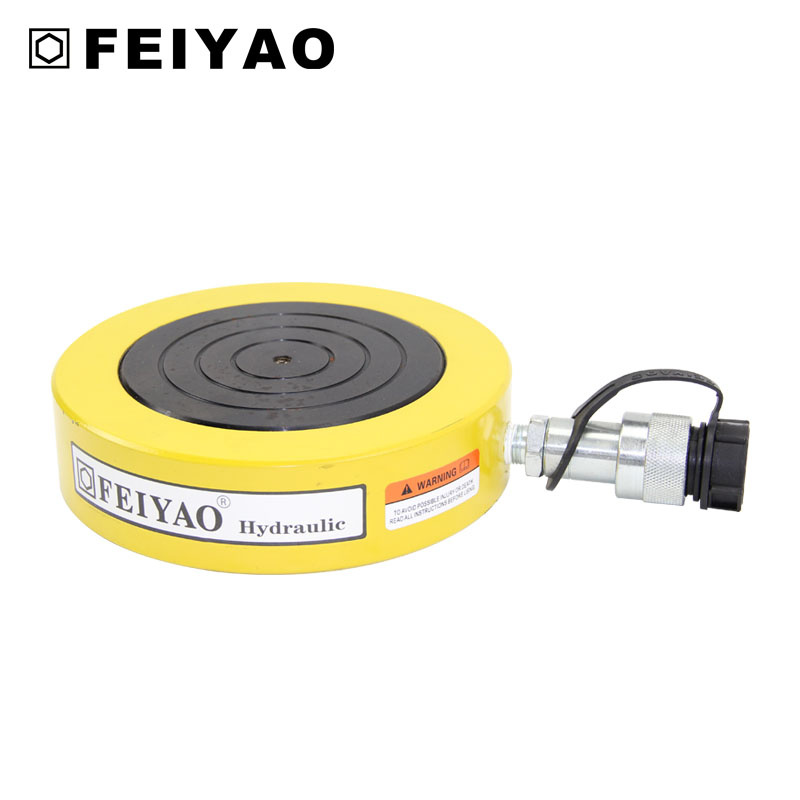

Product Photos:
Parameter Information| model |
capacity tons
(kn)
|
stroke
(mm)
|
Oil capacity
(cm 3 )
|
collapsed
height
(mm)
|
extenging
height
(mm)
|
out
diameter
(mm)
|
bore
(mm)
|
plunger
diameter
(mm)
|
weight
(kg)
|
| FY-STC-00510 | 5 | 10 | 3.46 | 30 | 40 | 60 | 21 | 21 | 12 |
| FY-STC-01010 | 10 | 10 | 7.04 | 30 | 40 | 70 | 30 | 30 | 12 |
| FY-STC-02510 | 25 | 10 | 17.35 | 30 | 40 | 90 | 47 | 47 | 11.5 |
| FY-STC-05010 | 50 | 10 | 36.32 | 30 | 40 | 115 | 68 | 68 | 11.5 |
| FY-STC-10010 | 100 | 10 | 69.4 | 30 | 40 | 144 | 94 | 94 | 11.5 |
| FY-STC-12010 | 120 | 10 | 78.54 | 30 | 40 | 160 | 100 | 100 | 11.5 |
| FY-STC-15010 | 150 | 10 | 105.68 | 31 | 41 | 176 | 116 | 116 | 12.5 |
| FY-STC-20010 | 200 | 10 | 136.58 | 32 | 42 | 204 | 132 | 132 | 13.5 |
Other Products
Brief introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

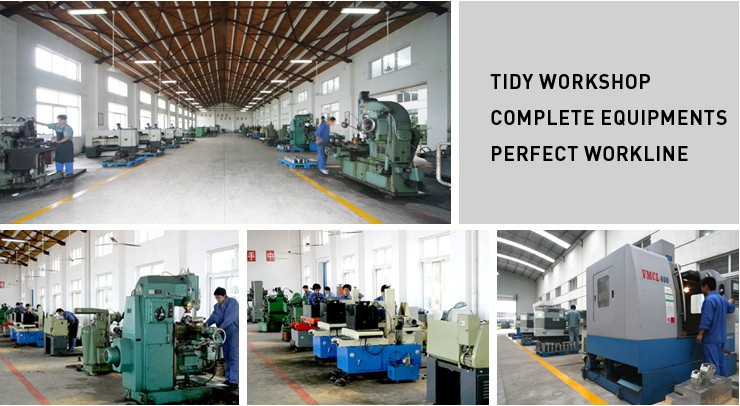

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.

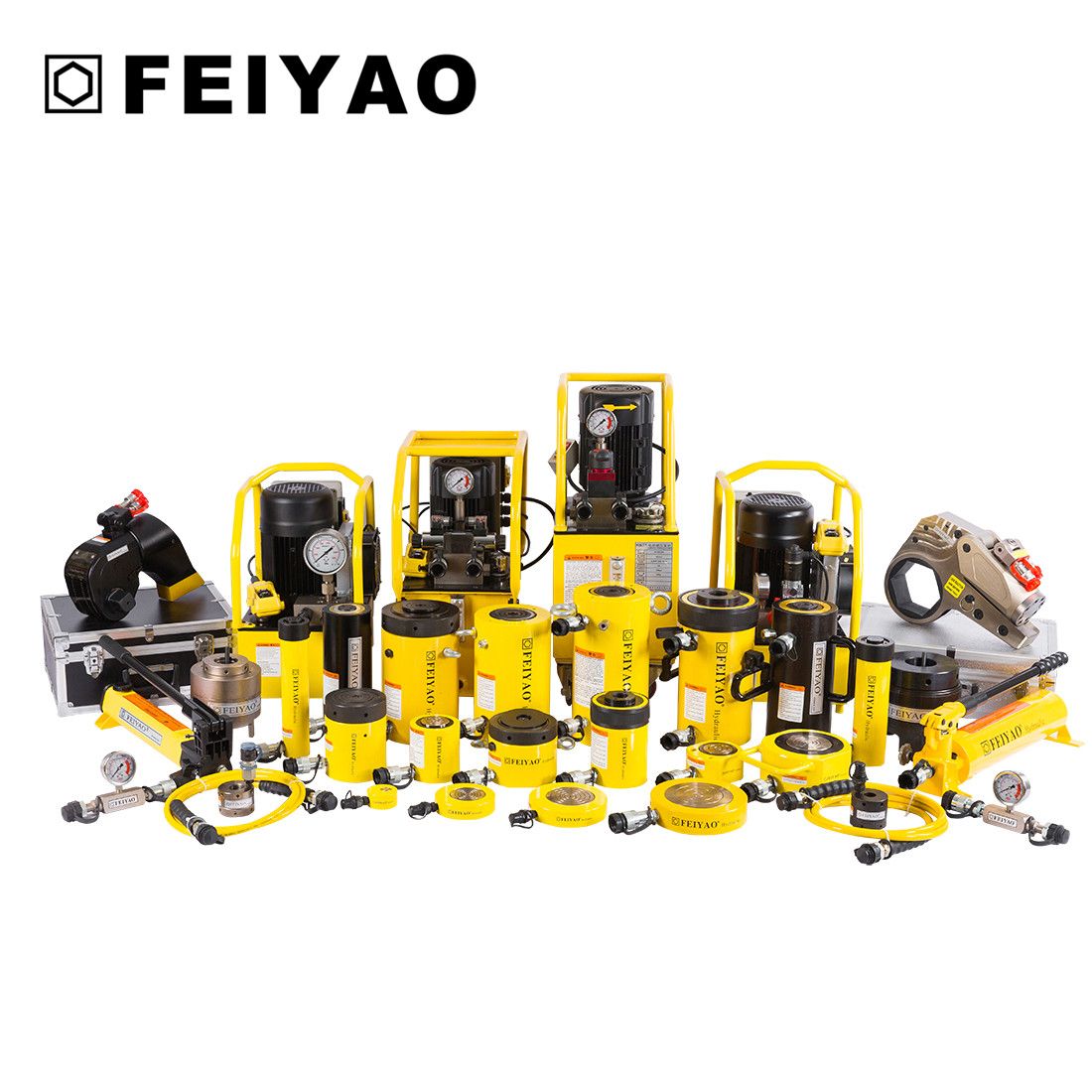

With more than 30-year experience, we have specialized in:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
For more information please visit our website:www.fyhydraulic.com or contact me with the following contact information.
We are professional manufacturer, offer you competitive price.
If you have any questions about these products , please contact us ,we will try our best to help you !
CONTACT USSarah CaiSales Manager-Foreign Trade Dept.
=====================================

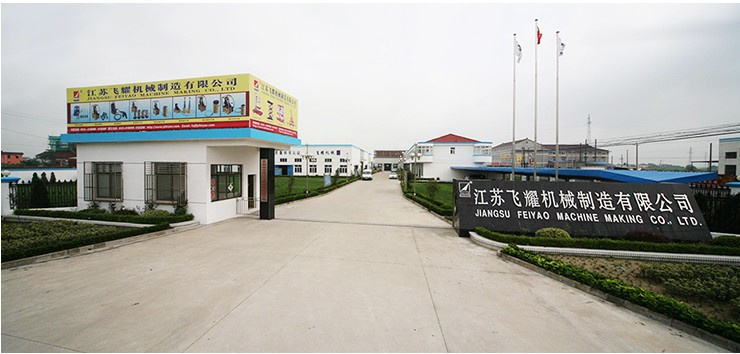

Jiangsu Feiyao Machinery Manufacturing Co., Ltd
