Steel Casting, Lost Wax Casting, Precision Casting, Sand Casting
| Price: |
US $ 0.1-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SX106 |
| Delivery Time: |
One Month |
| Sample: |
Offer for Free |
| Service: |
OEM/ ODM |
| Type: |
Chemical Hardening Sand |
| Standard: |
All Kinds |
| Certification: |
Ts16949:2009 |
Product Description
Sand Casting Part with Machining

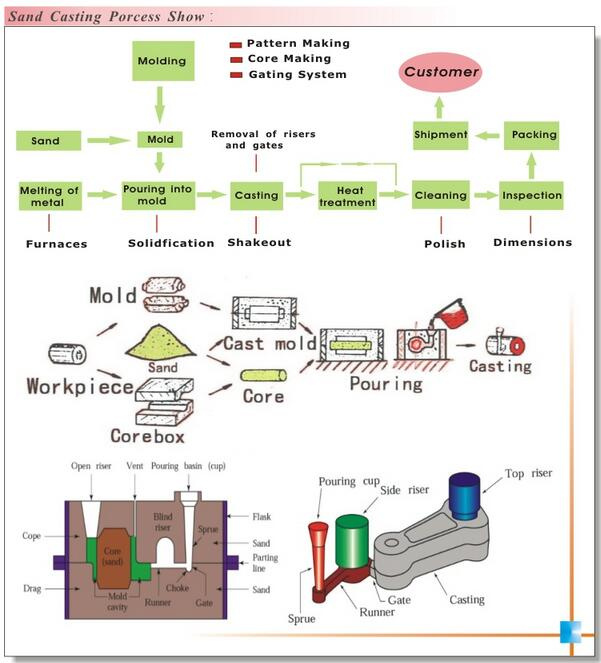

1. Process: Resin sand or Furan Resin Sand and green sand
2. Material: Grey iron, Ductile iron, Malleable Iron, Stainless steel, Carbon Steel, Aluminum, Brass, Bronze or on request of customer
3. Weight: 0.5kg to 2000kg size from 100mm to 2000mm
Investment Casting(Precision Casting) Part with Machining
1. Process: Silica sol and water glass process
2. Material: Stainless steel, carbon steel, alloy steel, white steel, copper, brass or on request of customer
3. Weight: 0.2kg to 100kg size from 30mm to 850mm, thickness: 3mm
Forging Part with Machining
1. Process: Die forging and free forging
2. Material: Gray iron, ductile iron, iron, carbon steel, white steel, steel, aluminum alloy, brass or on request of customer
3. Equipment of forging: Die forging hammer, free forging hammer, helix press machine, crank press and so on Company Introduction
1. Our company has advanced technological equipment, all kinds of quality checking equipment.
2. Now a series of strict quality control and manufacture process have been established.
3. Our quality management system is in conformance with ISO9001: 2000
4. We have accumulated plenty experience and our company has been expanding by leaps and bounds.
Inspection
1. First of all the whole quality control management has been carried out during the entire process of manufacture with the assistance of computer and other numerical control equipment, which includes the raw material, production process control, final product quality control.
2. Third party inspection available upon requirement.
Investment Casting Detailed Information
| Specification | As per your PDF, CAD, Solid work, Proe drawing or samples |
| Casting Process | Precision casting, Investment casting, Lost wax casting, Sand casting |
| Casting Material | stainless steel ,carbon steel ,alloy steel, ductile Iron, grey iron, etc.
according to customer drawings and specifications |

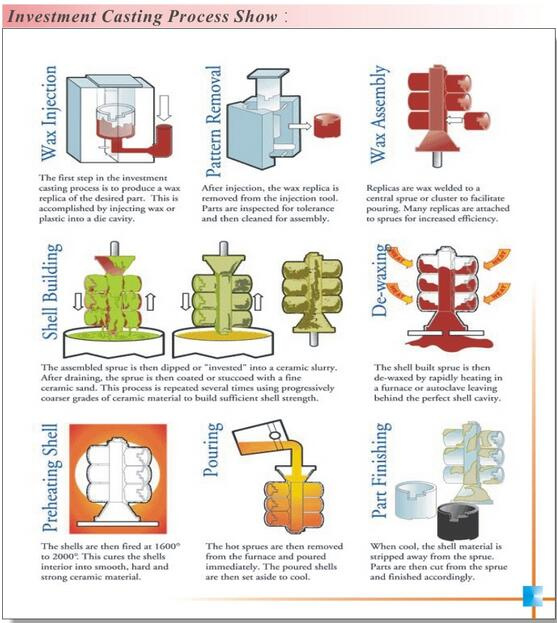

| Processing Methods | Die making & wax pattern, Assembly of wax pattern, Dipping the assembly into Silica Sol slurry, Sand-spraying & shell built, Dewax & firing, Pouring the metal, Shell & part removal, Finishing & secondary operations. |
| Casting Weight | 0.05kg-200kg |
| Casting Standard | ISO, ASTM, AISI, EN, DIN, NF, JIS, BS, etc. |
| Casting Tolerance | CT4-CT6 |
| Surface Roughness | Ra 0.8um-12.5um |
| Surface Preparation | Polishing, Sand Blasting, Passivating, Plating, Galvanized, Spray-Paint, etc. |
| Heat Treatment | Quenching, Normalizing, Tempering, Annealing, etc. |

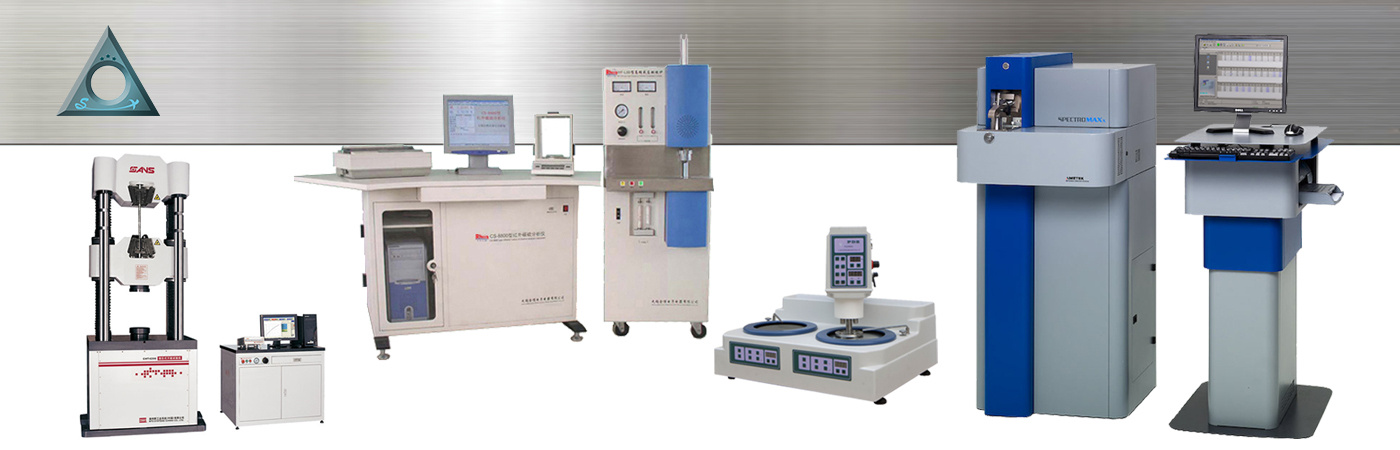

| Inspection Equipment | Spectrograph, Metallographic analyzes, Universal Strength Tester, Hardness Tester, Impact Test Machine, Pressure Testing Machine, Magnetic Particle Inspection Machine, Ultrasonic Flaw Detector etc. |
| Dimension Inspection | Calipers, Height Gauge, Micrometer Calipers, Inside Caliper Gauge, Angle and R Gauge, Coordinate Measuring Machine (CMM). |
Advantage Of Our Products
1. National standard
2. High quality material
3. High-intensity
4. Big rigidity
5. Long life and strong bearing capacity
6. Passed the national authoritative department's monitor
7. Gained all clients' trust
Our Services
1. We are a professional manufacturer specializing in manufacturing loss wax casting for over 21 years.
2. With experienced technical engineers and modern inspection equipment, our factory can help you to lower cost at the moment of worldwide financial crisis.
3. We are committed to focusing on the client's demand and satisfaction, and to providing high quality products at competitive prices according to your drawings or samples. Special parts for your special needs!
4. Our strong R&D and QC department can control the products to meet your strict requirments, 100% inspection on critical dimensions with high accuracy +/-0.005mm. And our QC department will inspect the products in production and after production. We promise you as below: A. Check the raw material before the production;B. Have random inspection during the production;C. Make 100% inspection before the shipment.
5. Factory direct price and on time delivery.
6. Small quantity acceptable.
7. OEM workable.
Main Export Market
• Easter Europe
• Western Europe
• North Americ
• Mid East Africa
• Central/South/America
• Asia
• Australia
Information about Our R&D
Not only our engineers possess mechanical knowledge but also the resources of industrial field are combined with. We could say that we are the most professional team can provide perfectible service for customized products over Taiwan and China. Experts in material field, production techniques, and design specifications, we are a Total Productive Maintenance (TPM) company. We can develop a new product as quickly as you wish and maintain strict production efficiency to keep production costs down and prices competitive.
Software/Equipment for R&D
1) Auto CAD R-14
2) A1 Drawing Machine
3) Pro-E
4) UG
5) Solid work
6) Magma flow & Other 3-D Cad Software
Packing and Shipping
standard export package(carton/wooden case/pallet)
accept FOB,FAS,CNF,CIF door to door etc or customer designated shipping agent
About Us

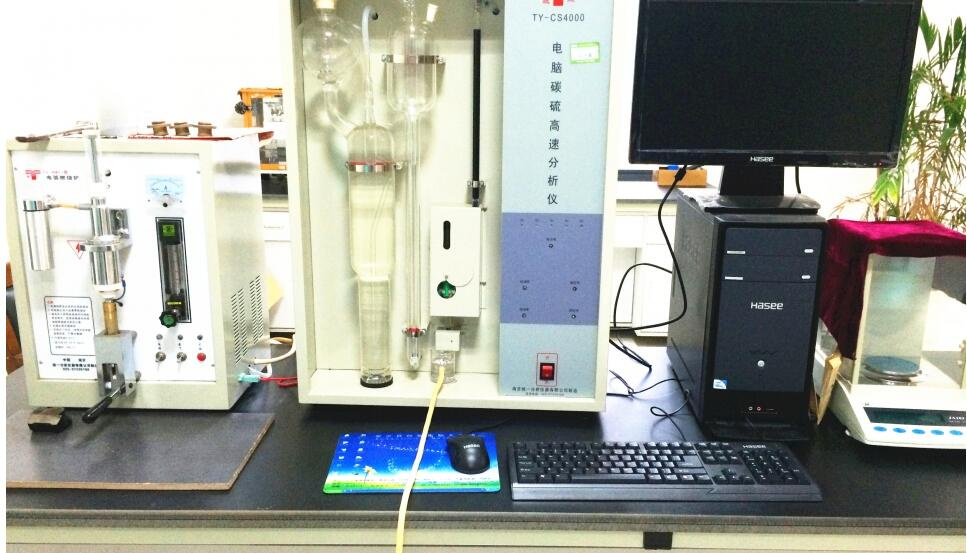

Our company was established in 1996, it covers a total area of 10,000 square meters and now has about 760 employees, including 10 engineers and 60 technicians.The company owns two modern types of energy-saving & environmentally-friendly production lines including two fully automated wax and shell making process flow line, as well as two mesh belt furnace heat treatment production lines.It is fully equipped with complete and advanced CNC machining equipment.In addition to the casting, machining, it also has the facility to do hot galvanizing.Our company also has the most advanced and complete inspection equipment in the casting industry, including Spectrometer, Metallographic Microscope, Tension Tester, Low Temperature Tester, X-ray Tester, MPT, UT, CMM, Video Measurement Machine and so on.With these advanced facilities & instruments, we are able to supply the most precise finished products to our customers, and make products meeting their overall inspection requirements on chemical composition, mechanical properties, non-destructive testing and high precise dimensional inspections.
Our Production
We can offer you investment casting parts, railway casting parts, railway parts, excavator machinery parts, mining machinery parts, engineering machinery, agricultural machinery parts, sand casting, auto parts, stamping & forging, and valve parts.We are capability in manufacture non-standard metal machining.
1.Investment casting sand casting/ lost wax casting/precision casting/gravity casting/stainless steel casting/carbon steel casting etc.
2.Materials:Carbon steel, stainless steel, alloy steel etc;
3.Surface treatment:Polishing, zinc plating, chrome plating, Heat treatment, machining, nickel plating, electropolish, anodizing, hard anodizing, powder coating,galvanized and painting.
4.Software for specification drawings:PDF, auto CAD, solid work;
5.Main production equipments:Wax injection, CNC-machine, heat treatment;
6.Quality assurance in accordance with ISO9001:2008, strict material inspection and exact dimension control, 100% quality control.
7.OEM/ODM order is welcome;
8.The parts can be made completely based on your specifications such as drawing, design, sample etc.
Production Process:Sanxing Precision Casting Co., Ltd can produce investment castings, lost wax castings, die castings, sand castings, CNC machining, precision casting, stainless steel casting, carbon steel casting.
Production Ability:760 employees, 20 R&D engineers, 25 QC staffs, 3 production lines, different production machines, such as CNC lathe machines, Polish machines, sand blasting machines, milling machines and so on, 10000 tons per year and 800 tons per month finish products.
Product Applied Field:Our products can be used in various areas:Machine parts, motor vehicle industry, mining industry, electrical industry, agricultural equipment, hydraulics industry, railway, marine engineering, public works, building industry.
Production Standard:AISI, ASTM, DIN, GB, BS, JIS, NF, AAR, ISO
Our Advantages
1.More than 20 years of experience in manufacturing and exporting
2.OEM and custom-made service
3.All kinds of castings and forgings can be manufactured according to drawing, sample or specific industry standard accurately.
4.Both parts and complete sets can be supplied
5.Strong engineering team makes high quality products
6.The coordinated service(Forging or Casting,Machining,Surface Heat Treatment) make lower price possible
7.Advanced-Level Equipments
8.Full material testing process and quality control system
9.18 months quality warranty and on time delievery
10.Small Order acceptable
11.Factory price
12.Offer customized packing
Our company would like to sincerely invite the global prospective buyers to pay a visit and have a good cooperation for a splendid future together.We will provide you not only the most satisfactory processing service but also very competitive price.
