| Prod Model: |
Steel cuting saw blades stone cutting saw blades |
| Product Name: |
Steel Cuting Saw Teeth Stone Cutting Saw Tip |
| Other Types: |
Jp Type Carbide Saw Tips |
| Other Types 2: |
Us-Canada Style Carbide Saw Cutting Tips |
| Other Types 3: |
Euro Style Carbide Saw Cutting Tips |
| Material: |
Tungsten Carbide, Cemented Carbide, Hard Alloy |
| Application: |
for Making Saw Teeth for Cutting Blades |
| Type: |
Circular Saw |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
Product Description
Steel cuting saw teeth stone cutting saw tip
1. Description of tungsten carbide saw tips

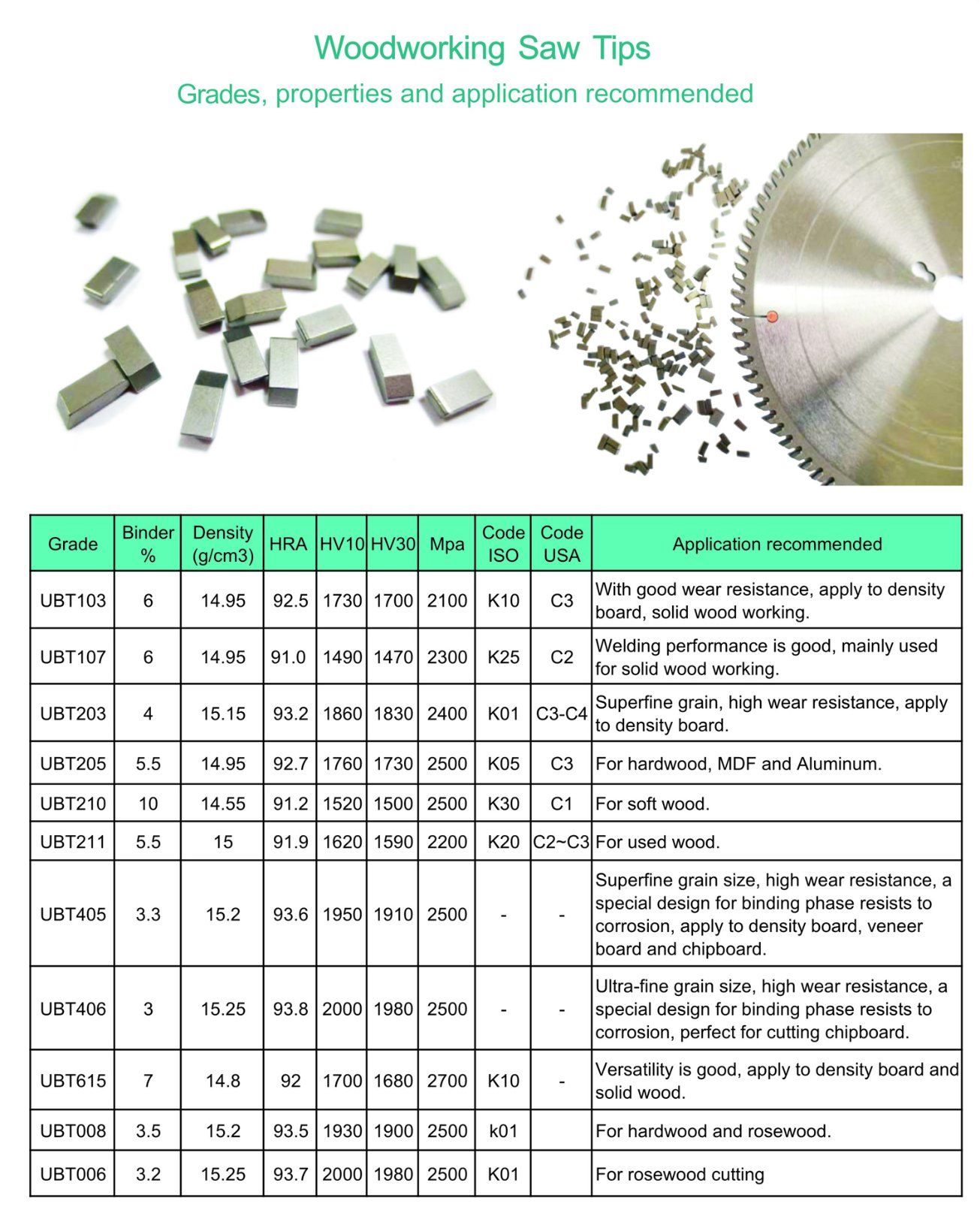

Tungsten carbide saw tips usually used for process wood materials. as dry wood ,soft wood ,hard wood, original wood, solid wod, multiple wood, and nonferrous metal, most kinds of steel materials, granite, marble. 2. Grades available: | Grade | Equal to ISO Category Number | Performance | uses |
| Density | Bend Strength | Hardness |
| G/Cm3 | N/mm2 | HRA |
| YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | sand-blasting nozzles Qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
| YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 |
| YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
| YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 |
| YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
| YG8 | K20-K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
| YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 | Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
| YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 | Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
| YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 | Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
| YW1 | M10 | 12.7-13.5 | ≥1180 | ≥91.5 | Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
| YW2 | M20 | 12.5-13.2 | ≥1350 | ≥90.5 | Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
Zhuzhou Better Tungsten Carbide Co., Ltd is located in Zhuzhou City, Hunan Province, China, where is the largest tungsten carbide producing area in China.
Our main products inclue: Tungsten carbide rods, carbide strips, carbide dies and bushes, tungsten carbide roll rings, carbide disc cutters, carbide end mill cutters, carbidestud and pins, tungsten water jet cutters, precision tools, tungsten carbide grits and powder, welding rods, ceramet inserts, PCD and CBN tools, non-standard and deep-processing products and so on. We also provide very good quality of boron carbide, silicon carbide nozzles.
Our company gathered the professional staff members for designing, producing and saling. Our workers are well trained and experienced. Our team is honest, positive, keeping promise, working hard and carefully. We sincerely hope we can provide our clients with good quality, moderate price together with professional service. We have got ISO9001: 2008 certificate, with advanced equipment, test facilities and professional employees. We strictly carry on ISO9001: 2008 requirements to guarantee the quality.
We have good relations with many factories in tungsten carbide line. We have large stock to keep the fastest delivery. In this way, Our products are 100% quality guaranteed and delivery fast.
Trust us, and you will win!
