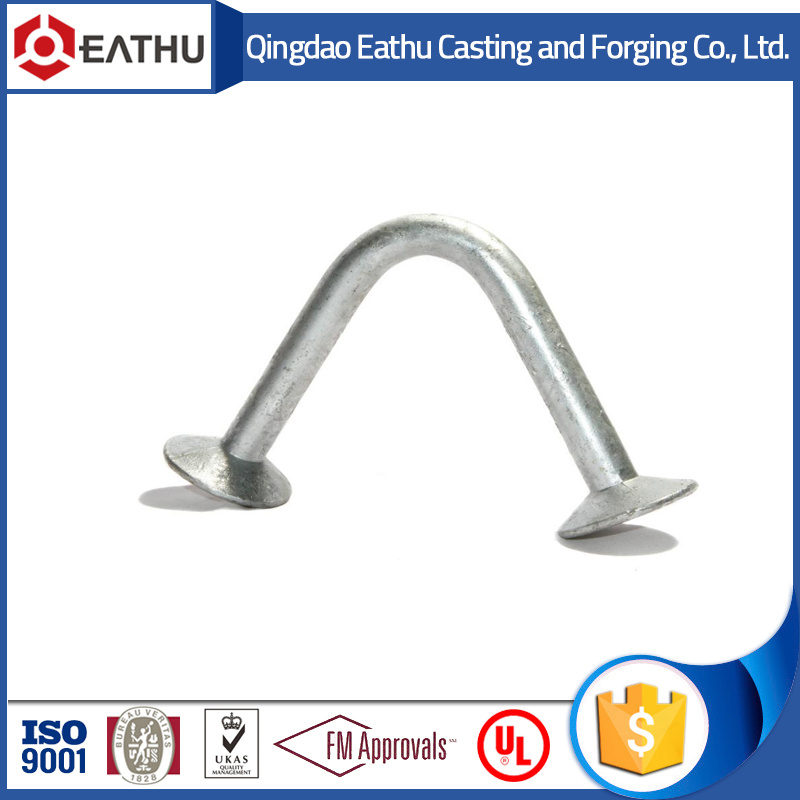

Steel Forged Ground Anchor
| Price: |
US $ 0.5-50/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BSR-1680 |
| Product Name: |
Steel Forged Ground Anchor |
| Steel Material: |
Q235 |
| Apply: |
Precast Concrete Accessories |
| Usage: |
Building Construction |
| Certificate: |
ISO 9001/ Ce |
| Surface: |
Hot DIP Galvanized |
| Load Capacity: |
1300-32000 Kgs |
| Production Process: |
Hot Forged |
| OEM Of Forged Parts: |
Available |
| Sample Of Anchor: |
Available |
| Type: |
Fasteners |
Product Description
Steel Forged Ground Anchor
Product Description
A. Spread Anchor Ring Clutches: Divided into four categories the ring clutches can be used to lift all types of spread anchor which falls into its specific load category.
B. Pin Anchor: The pin anchor system is a heavy duty system and is an alternative to the spread anchor system. The standard anchor comes in a variety of lengths in each weight category.
C. Eye Anchor: For use in thin reinforced units the hole at the base of the anchor allows for additional rebar to be attached.

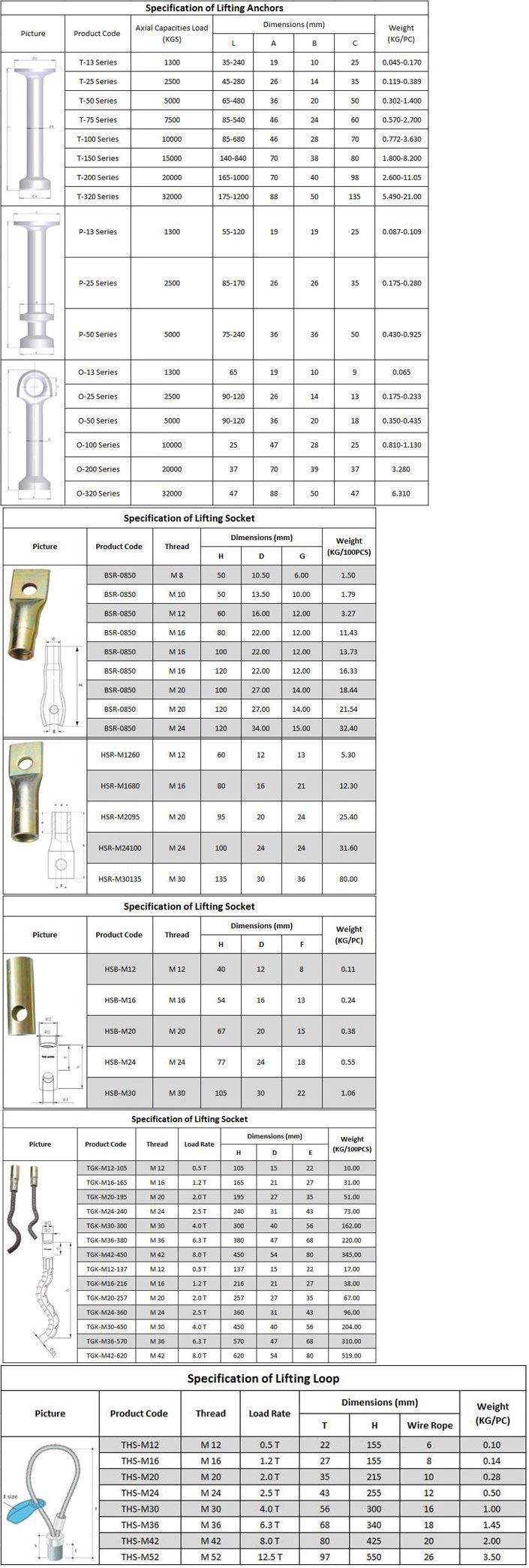

D. Pipe Anchor: For use with automated pipe production.Product Specification| Specification of Lifting Clutch |
| Product Code | Axial Capacities Load
(KGS) | Dimensions (mm) | Weight
(KG/PC) |
| a | b | c | e | f | g |
| TH 1.3 | 1300 | 47 | 75 | 71 | 45 | 33 | 165 | 1.0 |
| TH 1.5-2.5 | 2500 | 64 | 98 | 85 | 55 | 42 | 205 | 1.6 |
| TH 3.0-5.0 | 5000 | 70 | 118 | 88 | 66 | 57 | 240 | 3.3 |
| TH 6.0-10.0 | 10000 | 95 | 160 | 121 | 117 | 73 | 348 | 9.6 |
| TH 15-20 | 20000 | 118 | 186 | 150 | 155 | 110 | 441 | 24.5 |

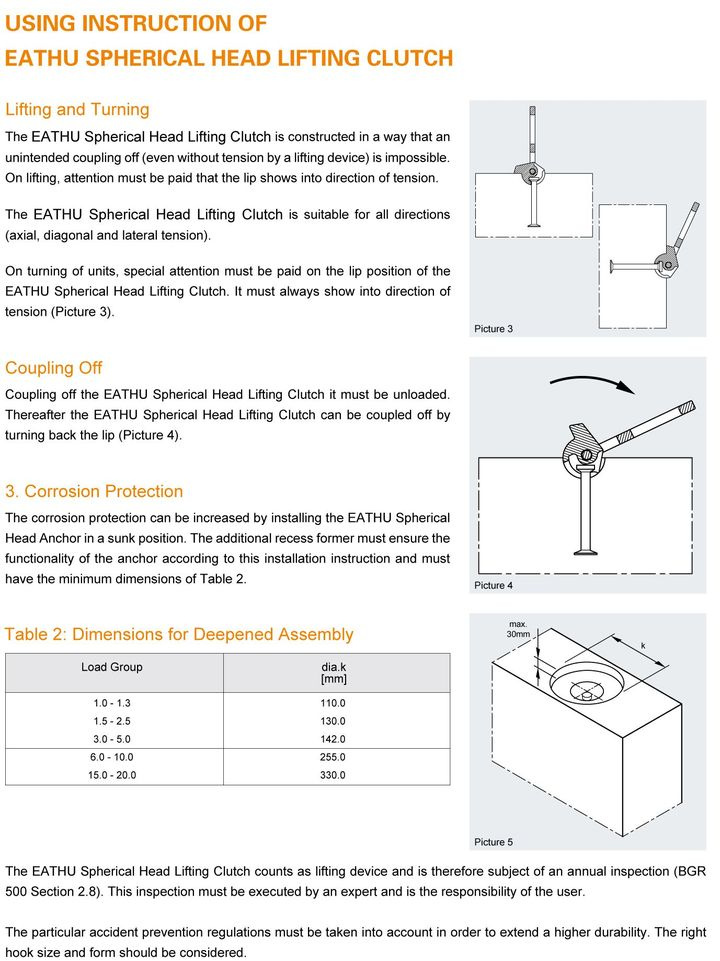

Our AdvantageA. Eathu is a manufacturer focus on building material products with more than 10 years experiences.B. Eathu's products are enhanced by the factory QA and Quality Control checks during the production. If necessary each order can be send out with a certificate referring back to test. C. Precast concrete elements may be lifted several times after casting and during storage and erection-by using this system the designer and the worker manager ensure that each lift is carried out safely and quickly. D. Eathu has more then 10 years experience for the OEM/ODM products, more than 150 cooperation factories, we can provide you competitive price and steady quality.Using Instruction
WHO is EATHU
EATHU PRCAST is a leading china manufacturer of precast concrete accessories products, focused on improving safety, economical products in the areas of lifting and fixing and connection.
EATHU PRECAST provides professional Threaded lifting, pin lifting, flat lifting, Fixing system, and Plastic spacer products for precast concrete industry. We have provide the accessories products for the precast concrete industry from 2001 for European and USA leading precast concrete accessories Company, and always know how to control and produce reliability precast concrete products with high safety factor and quality.
Packing & ShippingPlywood crate is always used for our Spread Anchor Ring Clutches, Pin Anchor, Eye Anchor and Pipe Anchor.
FAQQ1. You are manufacturer or trading company?
A: We are factory. Welcome to visit our factory at anytime.
Q2. Can I have a sample before orders?
A: Yes, we welcome sample order to test and check our quality.
Q3. What about the lead time of sample order?
A: Standard parts need 3-5 days after sample order confirmed, and if the sample need to make new mould, the leading time will be about 30-40 days.
Q4. How can I get your quoted price?
A: If you need our standard parts, please let us know the detail item code and order quantity, then the quotation will be sent. OEM parts please provide the drawing at the same time.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.Contact Us
