| Prod Model: |
JG-2000 |
| Self Size Mm: |
395*172*165 |
| Package Size Mm: |
520*300*310 |
| Nw: |
70kg |
| Gw: |
73kg |
| Model: |
Jg2000 |
| Safety Factor: |
2.5times |
| Max Capacity: |
10000kg |
| Brand: |
Toyalift |
| Certificate: |
Ce |
| Capacity: |
2000kg |
Product Description
2T Lifting Magnet Lifter Good Quality Competitive Price For Steel Plates and Cylinder Steel 4400lbs
2T Capacity Lifting magnet With 2.5 to 3 times Safety Factor Factory Price
Permanent magnetic lifter, Lifting magent, is a manual tool, which is used for lifting the sqaure, flat or round surfaces steels or iron parts. Because inside of the lifter, there is an release device that will not contact or damage the surface of the part being lifted. Normally it used with crane, which save human labor.
The lifting magent includes diffrent capacity, basiclly it has 100kg 300kg 400kg 1t 2t 3t and 5t. It is very easy to use the lifting magent, only need the operator manually switch the lock-on and block-off states.

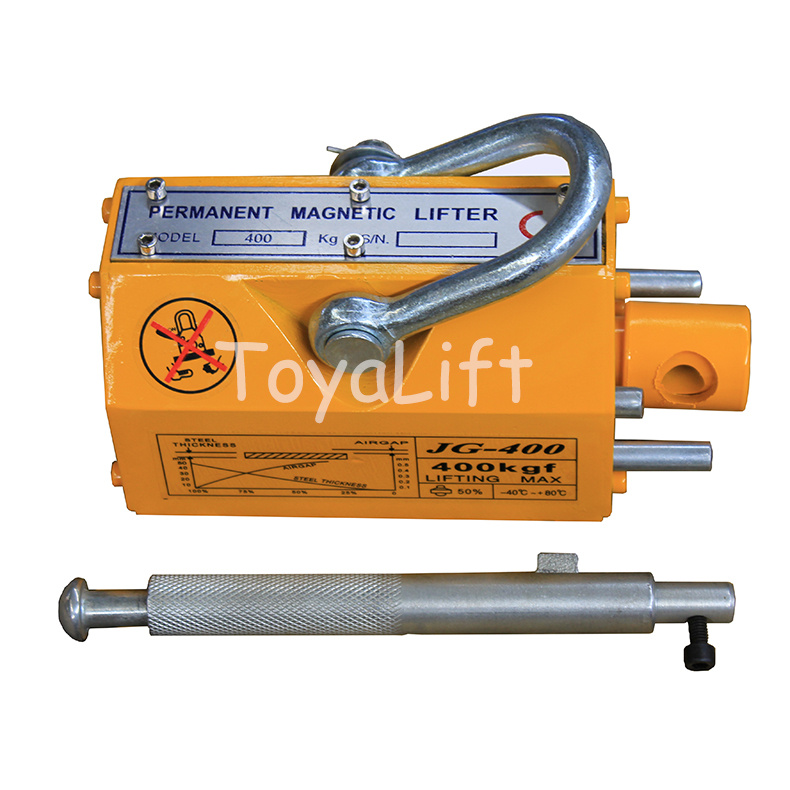

Lifting Magnet Actual Photos
| Lifting Magnet/Magnetic Lifter Specification Chart |
| Model | Capacity
(kg) | Size (mm) | NW
(kg) | GW
(kg) | Package
L×W×H (mm) |
| L | H | B | R |
| JG-100 | 100 | 123 | 62 | 67 | 170 | 3 | 4 | 240×160×160 |
| JG-400 | 400 | 195 | 95 | 92 | 210 | 10 | 11 | 320×200×170 |
| JG-600 | 600 | 246 | 120 | 115 | 243 | 20 | 22 | 370×230×230 |
| JG-1000 | 1000 | 298 | 153 | 135 | 270 | 36 | 39 | 430×280×240 |
| JG-2000 | 2000 | 395 | 172 | 165 | 370 | 70 | 73 | 520×300×310 |
| JG-3000 | 3000 | 480 | 175 | 165 | 370 | 88 | 92 | 600×300×310 |
| JG-5000 | 5000 | 570 | 230 | 215 | 600 | 198 | 213 | 730×400×480 |
Note !
Never stand under loading being lifted. Always use extra caution. Only use the lifting magents on material that doesn't on flex or bend.
The surface of the lift, and the parts being loaded, should keep clean and free of chips, oil,slag,dirt,etc. Lifting magnets must be centered on load parts. Do not recommended for painted or finish coated surfaces.
