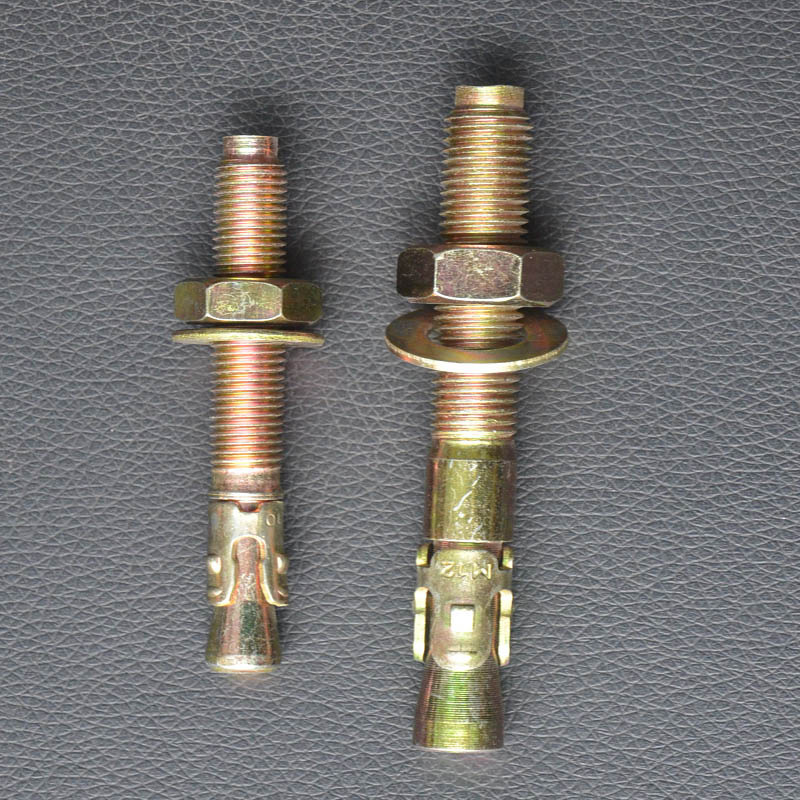

Steel Wedge Anchor Single Clip

Name: Steel Wedge Anchor Single Clip
Brand: tool-buy.com
SKU: 64187
Availability: InStock
Rating: 4.6 (61 reviews)

Price:	US $ 0.04/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Yuyao Jingcheng Hardware Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	Metric, UNC standard
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Carbon Steel
Standard:	BSW
Type:	Different Head Type
Connection:	Special
Head Style:	Different Head Type
Grade:	4.8,5.8,6.8,8.8
Finish:	Yellow, White, HDG

Product Description

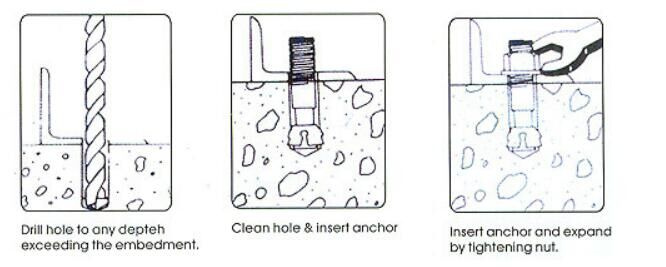

      Wedge Anchor can be hammered below the surface of the concrete when no longer needed.The clip is formed around anchor, assuring full expansion for dependable, superior holding power. Expanding clip will not fall off twist in the hole.It is made of carbon steel stainless steel and special style are available according to sketch. It is made of carbon steel and stainless steel and special style are available according to sketch and sample.
      The testing loading certificate can be supplied.

Item Code	Anchor size (mm)	Item Code	Anchor size (Inch)
WAM-06040	M6x40	WA-14134	1/4x1-3/4
WAM-06055	M6x55	WA-14214	1/4x2-1/4
WAM-06070	M6x70	WA-14300	1/4x3
WAM-06095	M6x95	WA-38214	3/8x2-1/4
WAM-08050	M8x50	WA-38234	3/8x2-3/4
WAM-08065	M8x65	WA-38300	3/8x3
WAM-08080	M8x80	WA-38334	3/8x3-3/4
WAM-08095	M8x95	WA-38500	3/8x5
WAM-080105	M8x105	WA-12234	1/2x2-3/4
WAM-080120	M8x120	WA-12334	1/2x3-3/4
WAM-080165	M8x165	WA-12414	1/2x4-1/4
WAM-080220	M8x220	WA-12512	1/2x5-1/2
WAM-10065	M10x65	WA-12700	1/2x7
WAM-10080	M10x80	WA-58312	5/8x3-1/2
WAM-10095	M10x95	WA-58500	5/8x5
WAM-10115	M10x115	WA-58600	5/8x6
WAM-10120	M10x120	WA-58700	5/8x7
WAM-10130	M10x130	WA-58812	5/8x8-1/2
WAM-12080	M12x80	WA-34400	3/4x4
WAM-12100	M12x100	WA-34500	3/4x5
WAM-12120	M12x120	WA-34700	3/4x7
WAM-12080	M12x80	WA-34812	3/4x8-1/2
WAM-12100	M12x100	WA-34100	3/4x10
WAM-12120	M12x120	WA-78600	7/8x6
WAM-12135	M12x135	WA-78800	7/8x8
WAM-12150	M12x150	WA-78100	7/8x10
WAM-16105	M16x105	WA-16000	1x6
WAM-16140	M16x140	WA-19000	1x9
WAM-16180	M16x180	WA-11200	1x12
WAM-20125	M20x125
WAM-20160	M20x160
WAM-20200	M20x200
WAM-20300	M20x300

Brief:
We are a manufacturer specializing in:
* Anchor Bolt/Fastenrs: 4 Fix Bolt shields anchors, 3 Shields Anchor, drop in anchors, chemical anchors, wedge anchors, cut anchors, sleeve anchors, etc.
* Cable Accessories: Cable Bushing, Cable Feedthrough wall bushing, Riser Guard, Rawl Wall Fixing Plug, Cable Clip, Cable Tie, Cable lock, Cable Glands, etc.
* Stampings/pressings.
* Special fasteners/fixings: Hex coupling nuts, toggle bolts, etc.
* Other special metal parts.

We can also make the products according to the samples or sketches provided by customers.
