| Price: | US $ 0.69-8.19/Meter |
|---|---|
| Min Order: | 1000/Meter |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

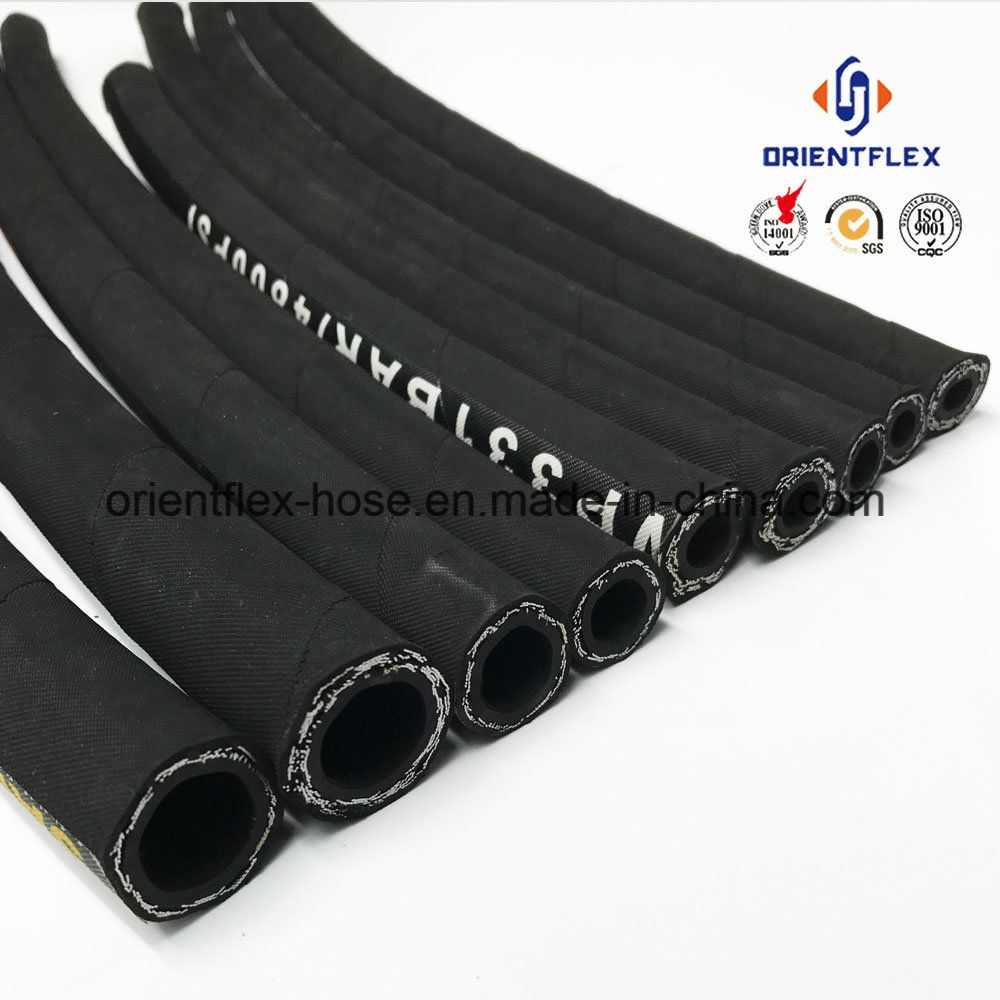

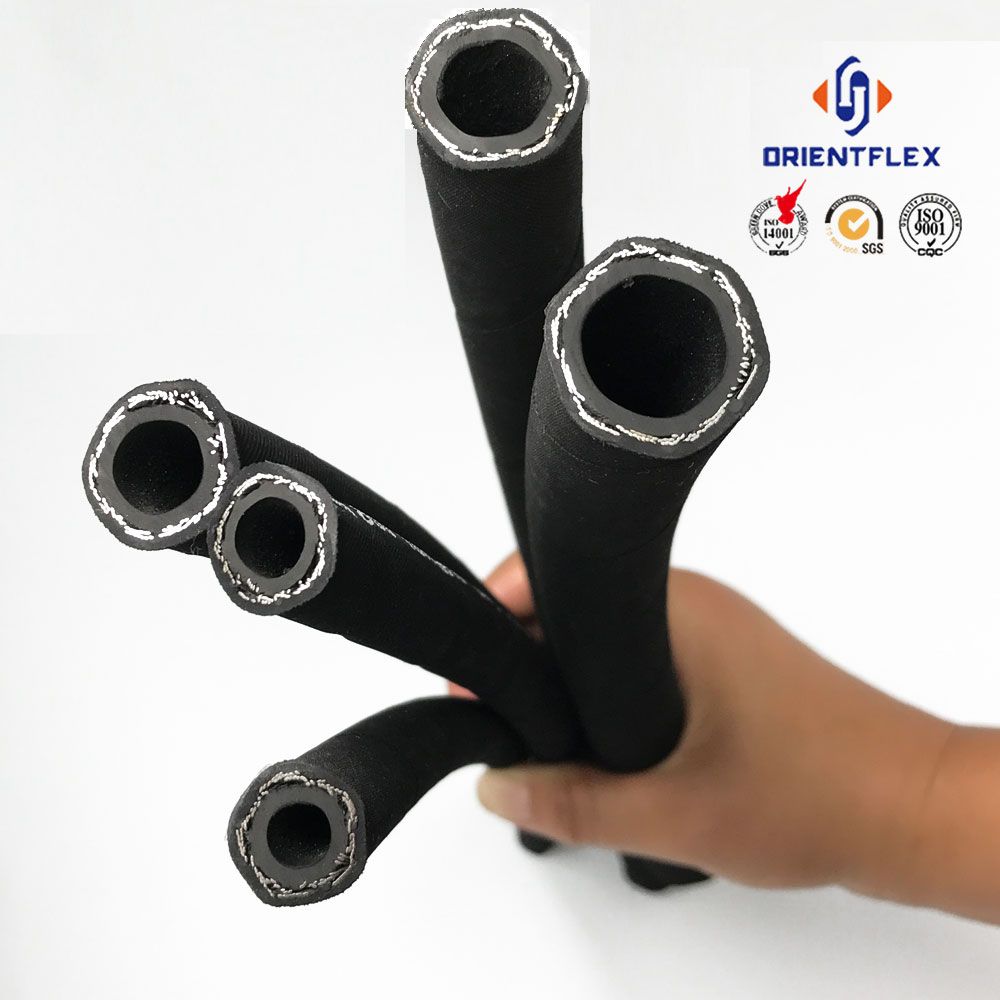

| Prod Model: | hydraulic hose SAE100 R1 |
|---|---|
| Sample: | Free Sample Available |
| Certification: | ISO9001 |
| Working Pressure: | 2--22.6MPa |
| Bursting Pressure: | 8--90.3MPa |
| Temperature Range: | -40 to 121 |
| Inner Tube: | Black, Oil Resistant, Synthetic Rubber. |
| Reinforcement: | One Braid of High-Tensile Steel Wire. |
| Cover: | Black, Oil, Abrasion and Weather Resistant, Synt |
| Color: | Black |
| Material: | Synthetic Rubber |
| Capability: | Hydraulic Hose |
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
| Inch | mm | Inch | mm | psi | MPa | psi | MPa | Inch | mm | kg/m | lb/ft | |
| R1-06 | 1/4 | 6.4 | 0.52 | 13.1 | 2785 | 19.2 | 11165 | 77 | 3.94 | 100 | 0.25 | 0.168 |
| R1-08 | 5/16 | 7.9 | 0.58 | 14.7 | 2535 | 17.5 | 10150 | 70 | 4.53 | 115 | 0.31 | 0.208 |
| R1-10 | 3/8 | 9.5 | 0.67 | 17.1 | 2275 | 15.7 | 9135 | 63 | 4.92 | 125 | 0.36 | 0.242 |
| R1-13 | 1/2 | 12.7 | 0.8 | 20.3 | 2030 | 14 | 8120 | 56 | 7.09 | 180 | 0.45 | 0.302 |
| R1-16 | 5/8 | 15.9 | 0.92 | 23.4 | 1525 | 10.5 | 1740 | 42 | 7.87 | 200 | 0.52 | 0.349 |
| R1-19 | 3/4 | 19.1 | 1.08 | 27.4 | 1260 | 8.7 | 5075 | 35 | 9.45 | 240 | 0.65 | 0.437 |
| R1-25 | 1 | 25.4 | 1.4 | 35.5 | 1015 | 7 | 4060 | 28 | 11.81 | 300 | 0.91 | 0.611 |
| R1-32 | 1 1/4 | 31.8 | 1.69 | 43 | 625 | 4.3 | 2540 | 17.5 | 16.54 | 420 | 1.3 | 0.874 |
| R1-38 | 1 1/2 | 38.1 | 1.95 | 49.5 | 510 | 3.5 | 2030 | 14 | 19.69 | 500 | 1.7 | 1.142 |
| R1-51 | 2 | 50.8 | 2.48 | 63 | 375 | 2.6 | 1525 | 10.5 | 24.8 | 630 | 2 | 1.344 |
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
| Inch | mm | Inch | mm | psi | MPa | psi | MPa | Inch | mm | kg/m | lb/ft | |
| 1SN-06 | 1/4 | 6.4 | 0.52 | 13.1 | 3275 | 22.6 | 13100 | 90.3 | 3.94 | 100 | 0.25 | 0.168 |
| 1SN-08 | 1/3 | 7.9 | 0.58 | 14.7 | 3125 | 21.5 | 12500 | 86.2 | 4.53 | 115 | 0.31 | 0.208 |
| 1SN-10 | 3/8 | 9.5 | 0.67 | 17.1 | 2600 | 17.9 | 10400 | 71.7 | 4.92 | 125 | 0.36 | 0.242 |
| 1SN-13 | 1/2 | 12.7 | 0.8 | 20.3 | 2325 | 16 | 9300 | 64.1 | 7.09 | 180 | 0.45 | 0.302 |
| 1SN-16 | 5/8 | 15.9 | 0.92 | 23.4 | 1900 | 13.1 | 7600 | 52.4 | 7.87 | 200 | 0.52 | 0.349 |
| 1SN-19 | 3/4 | 19.1 | 1.08 | 27.4 | 1525 | 10.5 | 6100 | 42.1 | 9.45 | 240 | 0.65 | 0.437 |
| 1SN-25 | 1" | 25.4 | 1.4 | 35.5 | 1275 | 8.8 | 5100 | 35.2 | 11.81 | 300 | 0.91 | 0.611 |
| 1SN-32 | 1 1/4 | 31.8 | 1.69 | 43 | 925 | 6.4 | 3700 | 25.5 | 16.54 | 420 | 1.3 | 0.874 |
| 1SN-38 | 1 1/2 | 38.1 | 1.95 | 49.5 | 725 | 5 | 2900 | 20 | 19.69 | 500 | 1.7 | 1.142 |
| 1SN-51 | 2 | 50.8 | 2.48 | 63 | 600 | 4 | 2700 | 18.6 | 24.8 | 630 | 2 | 1.344 |
| 1SN-38 | 2 1/2 | 63.8 | 3.03 | 77 | 360 | 2.5 | 1600 | 11 | 29.92 | 760 | 2.56 | 1.72 |
| 1SN-51 | 3 | 76 | 3.46 | 88 | 290 | 2 | 1160 | 8 | 34.65 | 880 | 2.74 | 1.841 |

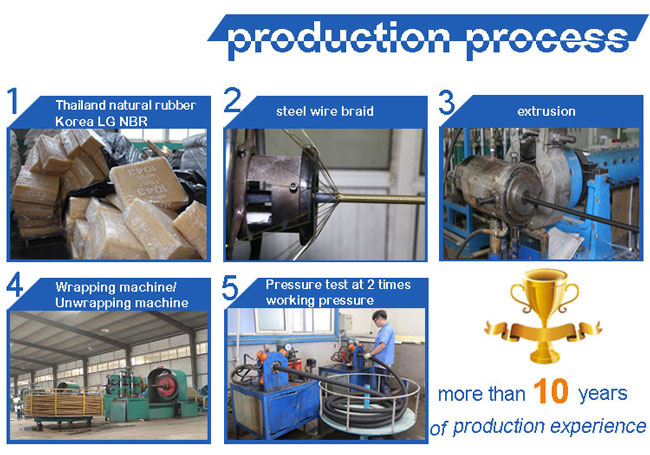

Production Process
Good quality materials make our hose steady performance.
Our factory introduce advanced teconology and equipment to make the bets quality hydraulic hose SAE100 R1. We have much experience of exporting and we produce the best quality hydraulic hose SAE 100R1.

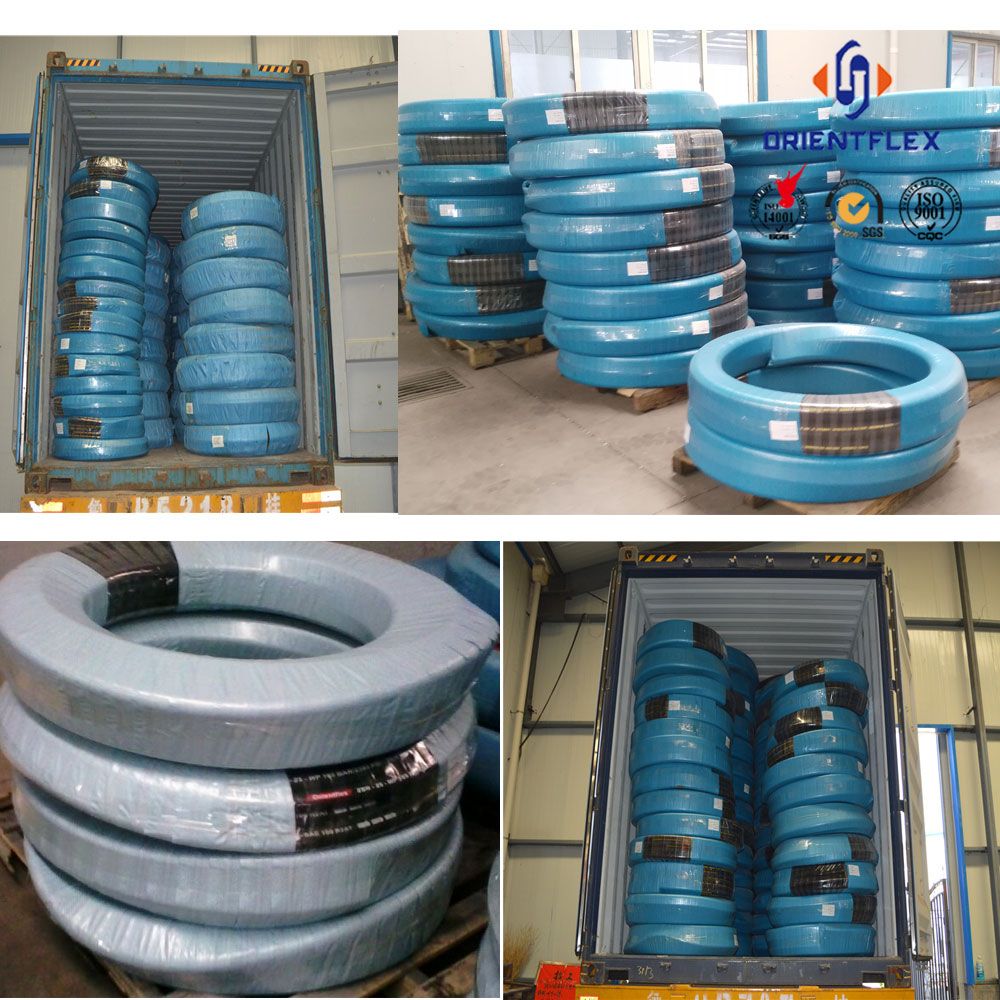

Packing
After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Company Information
ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.
Established in 2006, OrientFlex have more than 240 experienced workers, own a strongR & D team,
including 16 experienced engineers.
Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). 10 years manufacturing experience, strong and experienced export team
ORIENTFLEX has a strong sales and service team of 20 people, with more than five years experience in foreign trade, to provide professional services for customer.
ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.

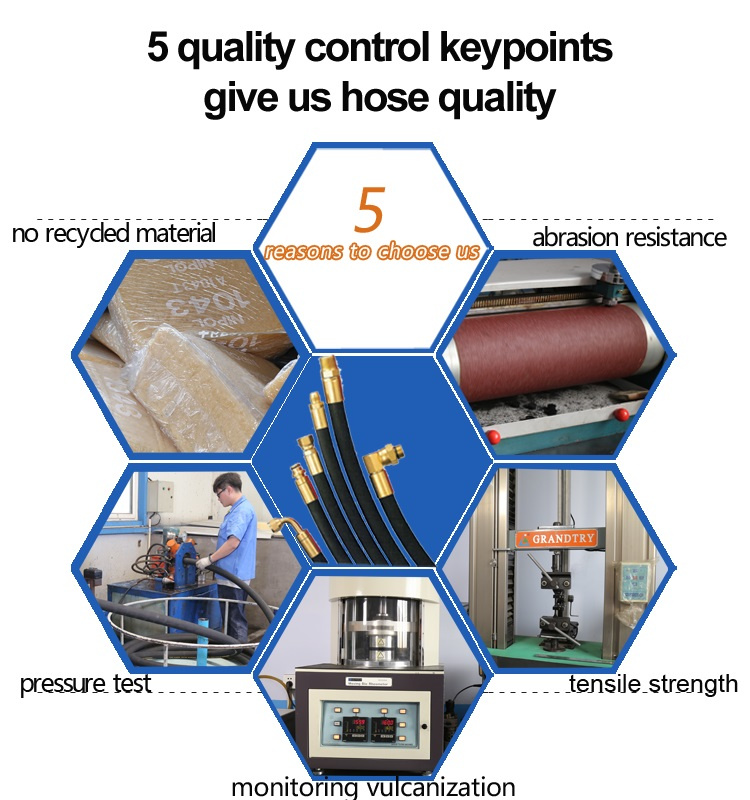

ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass production,we test each batch raw material.After production,we test each hose to guarantee 100% qualification.
ORIENTFLEX has three warehouses.
Certifications:
All Product Meet The Standard Of ISO And The Requirement Of API.
