Stone Bridge Cut& Cutting Machine for Sawing Granite/Marble Slabs

Stone Bridge Cut& Cutting Machine for Sawing Granite/Marble Slabs
Price: US $ 16500-17500Set
Min Order: 1Set
Pay Type: L/C,T/T
Prod Model: Zdqj-600
Blade Diameter: Φ300-Φ600
Max Processing Size: 3200*2000*180mm
Dimension Of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 18.5kw
Gross Motor: 24kw
Water Consumption: 4m3/H
Outline Dimension: 6000*4800*3100mm
Gross Weight: 5500kg
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
Type: Bridge Cutting Machine
Control: PLC

Product Description









Product Description

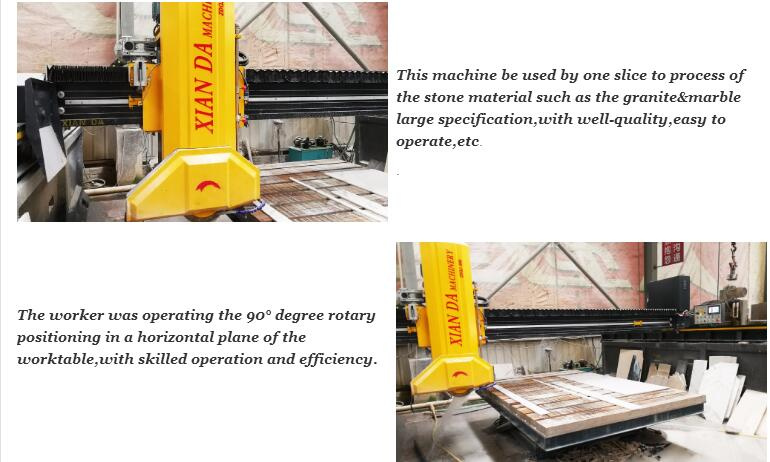

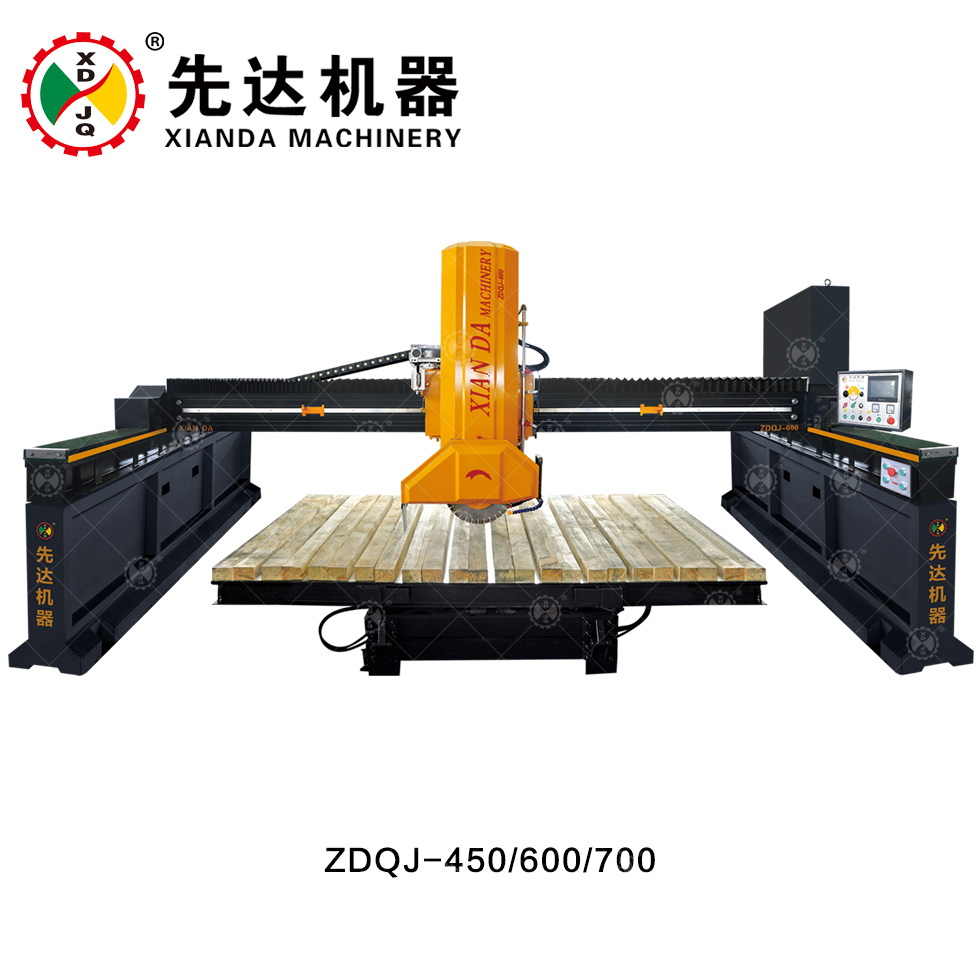

ZDQJ-450 infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.

The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.


Technical Parameter
Parameter
Unit
ZDQJ-450
ZDQJ-600
ZDQJ-700
Blade diameter
mm
300-450
350-600
350-700
Max processing size
mm
3200*2000*120
3200*2000*180
3200*2000*230
Dimension of worktable
mm
3200*2000
3200*2000
3200*2000
Worktable tilting degree
°
0-85°
0-85°
0-85°
Worktable rotation degree
°
0-90°/0-360°
0-90°/0-360°
0-90°/0-360°
Main motor
kw
15
18.5
18.5
Gross motor
kw
21
24
24
Water consumption
m³/h
4
4
4
Outline dimension
mm
6000*4800*2900
6000*4800*3100
6000*4800*3200
Gross weight
kg
5250
5500
5750

Xianda Machinery

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.


Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.

If you have any problem,just conact our sales department,customer service department,etc at any time.

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.

With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.

Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".

Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
