Stone Crusher Parts Bronze Bushings for Mining Machine (GP200)
| Price: |
US $ 1.3-2.316 |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
116 |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GP200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing: |
Casting |
| Logo: |
as Customer Request |
| Product Property: |
Durable and Stable |
| Advantage: |
Wear Resistant |
| Operating: |
Stable Operating |
Product Description
Product description:

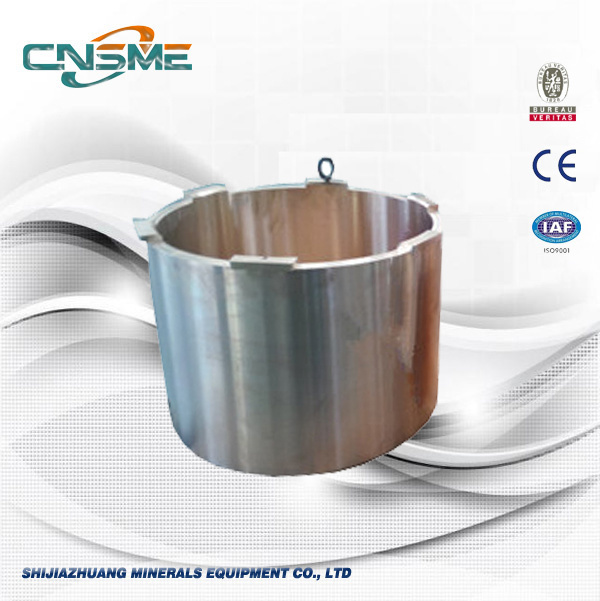

CNSME provide a comprehensive range of spare parts and wear parts to suite the METSO HP series cone crusher. Bushings are in material of bronze and brass. CNSME had become the top standard supplier of replacement for METSO and other famous brand crusher parts during several years development. Bushings Material Component: | Tin bronze series | 6-6-3 5-5-5 10-2 10-5 8-4 |
| Phosphor bronze series | 10-1 6.5-0.1 7-0.2 8-0.3 |
| Aluminum bronze series | 9-4 9-2 9-4-4-2 10-3 10-3-1.5 10-3-2, 10-4- 4, 10-5-5, 11-6-6 |
| Lead bronze series | 10-10 12-8 17-4-4 20-5 25-5 ZCuPb30 |
| Silicon bronze series | ZCuSi3Mn1 ZCuSi1Mn3 |
| Brass series | H62. H65. H68 59-1 58-2 16-4 40-2 58-2-2 66-6-3-2 |
CNSME - Crusher Bushings Parts List: | 171551 | Bearing Bushings | GP100 | 52 |
| 171564 | Bearing Bushings | GP100 | 52 |
| 171565 | Bearing Bushings | GP100 | 52 |
| 949628506200 | Frame Bushings | GP100 | 59 |
| 285053 | Thrust Bearing | GP100 | 13 |
| 285052 | Thrust Bearing | GP100 | 10 |
| 949628506300 | Ring | GP100 | 10 |
| 949628506400 | Support Bushing | GP100 | 3 |
| 949617145500 | Bearing Bushings | GP100S | 50 |
| 949617145600 | Bearing Bushings | GP100S | 50 |
| 949617145700 | Bearing Bushings | GP100S | 50 |
| mm0315148 | Frame Bearing Busing | GP11 | 80 |
| 285344 | Eccentric Bushing | GP11F | 68 |
| 285385 | Eccentric Bushing | GP11F | 68 |
| 285417 | Eccentric Bushing | GP11F | 61 |
| 941534 | Thrust Bearing | GP11F | 48 |
| 203101 | Thrust Bearing | GP11 | 16 |
| 261557 | Thrust Bearing | GP11 | 13 |
| 949620310900 | Frame Bearing Busing | GP11F | 80 |
| mm0273426 | Eccentric Bushing | GP11F | 59 |
| 927855 | Thrust Bearing | GP200 | 16 |
| 927856 | Thrust Bearing | GP200 | 13 |
| 942951 | Frame Bushing | GP200 | 60 |
| 908527 | Eccentric Bushing | GP200S | 71 |
| mm1102104 | Bearing | GP220 | 7.5 |
| mm0537909 | Frame Bearing Busing | GP250 | 57 |
| mm0227358 | Eccentric Bushing | GP300 | 80 |
| 931714 | Frame Bushing | GP300 | 73 |
| mm0266967 | Eccentric Bushing | GP300 | 78.76 |
| 188325 | Eccentric Bushing | GP300 | 78.91 |
| mm0315834 | Eccentric Bushing | GP300 | 80.17 |
| mm0315854 | Eccentric Bushing | GP300 | 80.16 |
| 315932 | Thrust Bearing | GP300 | 17.3 |
| 315933 | Thrust Bearing | GP300 | 20.5 |
| mm0523930 | Thrust Bearing | GP300 | 15.7 |
| 189534 | Eccentric Bushing | GP500 | 148 |
| 1022145719 | Head Bushing, upper | HP200 | 8.2 |
| 10022145730 | Head Bushing, Lower | HP200 | 29 |
| 1048721001 | Socket Liner | HP200 | 28 |
| 1022061401 | Countershaft Bushing | HP200 | 7.5 |
| 1022072951 | Eccentric Bushing, inner | HP200 | 29.5 |
| 1022145801 | Head Bushing, Upper | HP300 | 14.8 |
| 7015646200 | Head Bushing, Upper | HP300 | 14.8 |
| 1022145975 | Head Bushing, Lower | HP300 | 49 |
| 7035800600 | Socket Liner | HP300 | 48 |
| 1048722782 | Socket Liner | HP300 | 45 |
| 1022073307 | Eccentric Bushing, inner | HP300 | 49.5 |
| 1022063300 | Countershaft Bushing | HP300 | 12.6 |
| 1022130525 | Bushing | HP300 | 1.25 |
| 1056612200 | Thrust Bearing, Upper | HP300 | 20.5 |
| 1022147350 | Thrust Bearing, Lower | HP400 | 104.5 |
| 1022133692 | Bushing | HP400 | 2 |
| 1022147321 | Head Bushing, Upper | HP500 | 36.9 |
| 57605168 | Thrust Bearing, Upper | HP500 | 49.5 |
| 1022147711 | Head Bushing, Upper | HP800 | 81 |
| 1022147723 | Head Bushing, Lower | HP800 | 302 |
| 1048724025 | Socket Liner | HP800 | 202 |
| 1022075464 | Eeccentric Bushing | HP800 | 218.5 |
| 1022066795 | Countershaft Bushing | HP800 | 3.3 |
| 1022139576 | Bushing | HP800 | 2.7 |
| 1057612405 | Trust Bearing | HP800 | 89 |
Applications:
Nordberg® HP Series™ Cone Crusher is designed to be the crusher of world advanced level. HP cone crusher is widely used in mining industry, sand stone industry, metallurgical, construction, water conservancy, traffic, chemical industries, engineering machinery industry, electricity, petroleum, shredding industry, etc. HP cone crushers are widely suitable for primary crushing of many kinds of mining and rock such as many kinds of ores, concrete, ironstone, metallic rock, fireproof material, bauxite, quartzite, corundum, perlite, , basalt, limestone, etc.

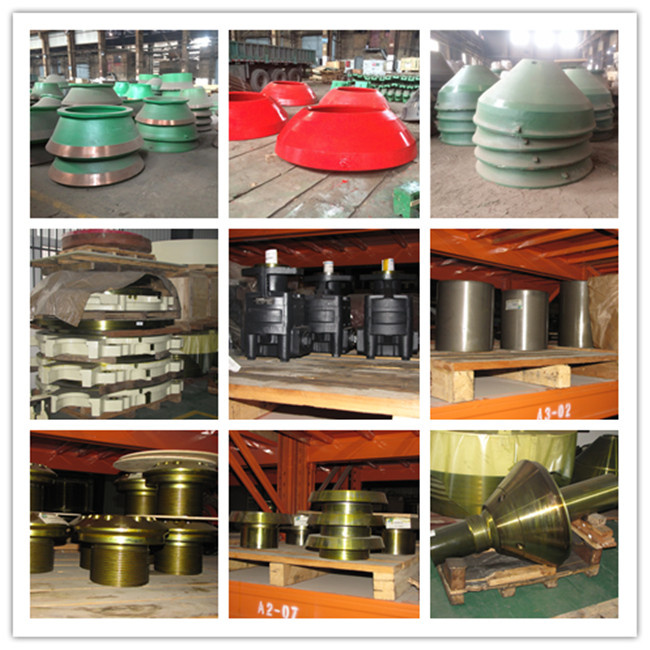

Warehouse&Stocks:

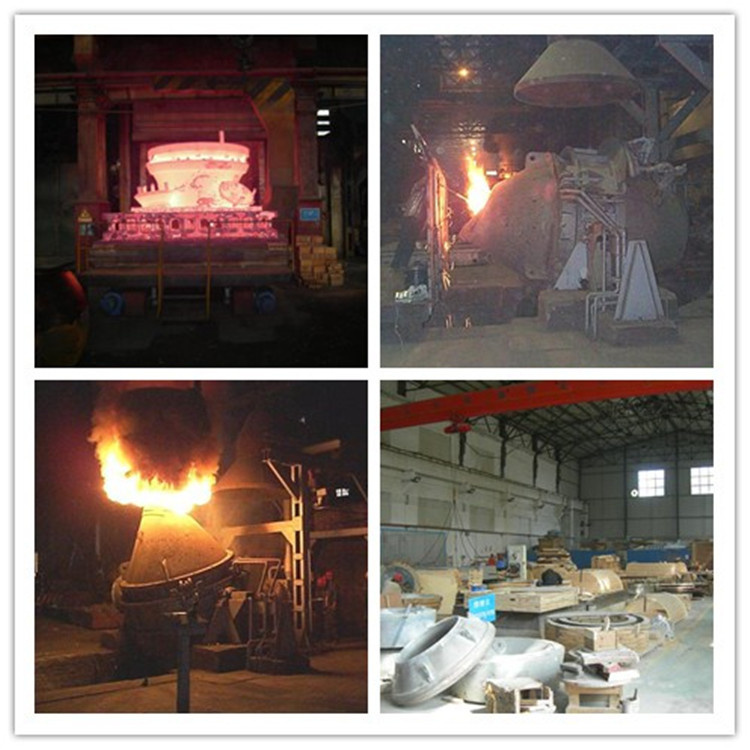

Work shop:

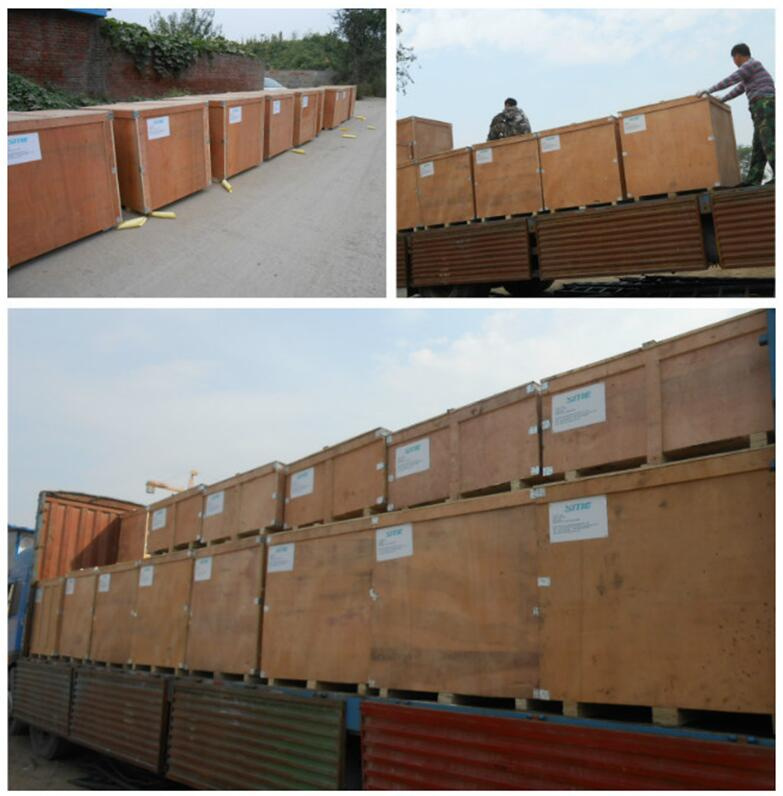

Packaging &Shiping:
Our crusher parts are packed in non-fumigation polywood/wooden cases.

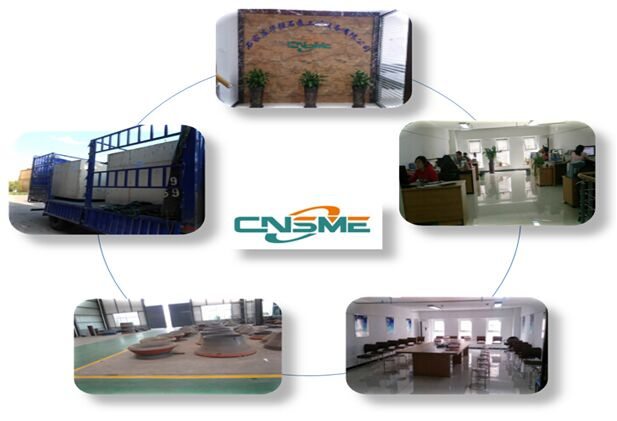

Company information:
About CNSME:
Shijiazhuang Minerals Equipment Co., Ltd is a hi-tech, professional company. We are specialized in the solution service with managing mining equipments OEM service and other related equipments. We focus our attention on the related mining equipment, the crushing and screening profild. Especially spare parts for crushers. Such as Metso cone crusher parts and other brand wear parts with OEM services.
We can guarantee the parts replacement completely for what you are looking for and the shortest delivery time. Our commitment if you choose us you will get a responsiveness, quality, reliability cooperator. Your satisfaction will help us move on to a new step in the field of quarry and mining equipment.
Our Certifications:
FAQ:
1. Q: What products do you offer?
A: CNSME provides parts are tailored with your requirements. It ranges mainly from METSO crusher parts, especially HP series, totally replacement parts, we also welcome OEM offer from you.
2. Q: What materials can you make?
A: Our speciality is high manganese steel(Mn13, Mn18, Mn22 or customized formula), we also produce alloy steel, cast iron, high or medium chromium cast iron and bronze.
3. Q: How about the capacity? What's the max weight of workpiece that can be casted?
A: The capacity is 110 tons per workday. The heaviest workpiece we have casted is 18 metric tons.
4. Q: What information should we provide to you to confirm our order of parts?
A: For standard part, you only need to provide the part number than we will define the part. But others, you should provide the technical drawings of your parts.
5. Q: What's the after-sales service if your product has quality problem?
A: First of all, you should provide us photos of the problem part and machine, then our engineers will collect the necessary information to find the root cause. If it's indeed a quality problem of the product itself, we must afford compensation to you and also figure out solutions to avoid the same problem. However if it's caused by client's misconduct, we also provide the technical suggestions for our clients to solve problem better.
6. Q: Can we visit your factory?
A: Yes, of course, welcome to our factory in workday and our sales team will show you everything you want to know.
