| Prod Model: |
BTDS |
| Model No: |
Btds |
| Surface Finishing: |
Polish |
| Application: |
for Granite and Hard Stone Cutting |
| Diameter: |
300 - 3500mm |
| Feature: |
Fast Cutting and Long Life |
| Delivery Time: |
Within 7 Days |
| Type: |
Stone Cutting Segment |
| Blade Material: |
Diamond |
| Material: |
High Quality Diamond + Metal Powder |
| Main Market: |
Europe, South America, North America, Middle East |

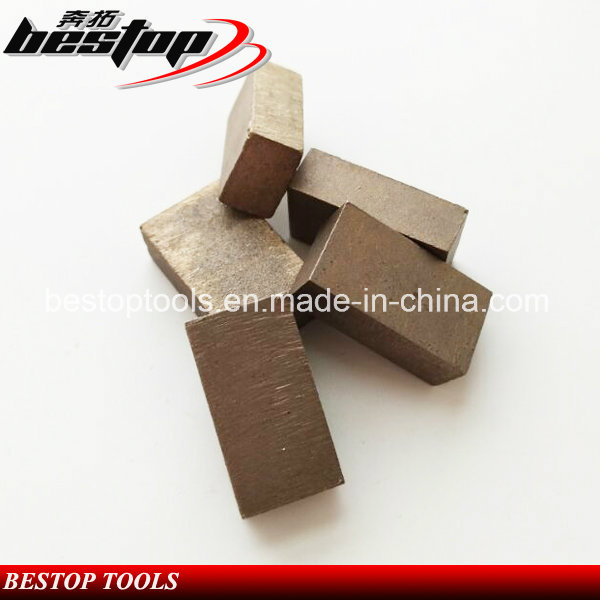

Product Description
Product Description
(1). We are professional Granite Diamond Segment Supplier, we have rich research and achievement in granite and other hard stone cutting. Which are hot sale in Brazil, Egypt, Turkey, European and Indian market etc, Enjoy a good name same as European products. But price are very cheaper than theirs.
(2). All sizes of High Quality Diamond Segment for 250mm to 3500mm of single granite cutting saw blade, multi saw blade and so on. We have Segments Type: Layer Type, "K" type, "V" Type, Grooved Type, M Type, Taper Type etc. Cutting granite from over 500 kinds of granite in many coutries.That have the main feature of fast cutting and long lifespan. Saving you more than 50% cost every year!
| Small Diameter (300 - 800 mm) Diamond Circular Saw Blade Segments for Granite Cutting |
| Specification | Core Thickness | Segment Size | Segment Number |
| ( mm ) | ( inch ) | (mm) | (mm) | (pcs) |
| φ300 | 12" | 2.2/2.0 | 40x3.0/2.8x8(10)(12)(15) | 21 |
| φ350 | 14" | 2.2/2.4 | 40x3.0/3.2x8(10)(12)(15)(20) | 24 |
| φ400 | 16" | 2.6/2.8 | 40x3.4/3.6/3.8x8(10)(12)(15)(20) | 28 |
| φ450 | 18" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 32 |
| φ500 | 20" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 36 |
| φ600 | 24" | 3.6 | 40x4.6x8(10)(12)(15)(20) | 42 |
| φ700 | 28" | 4 | 40x5.2x8(10)(12)(15)(20) | 42 |
| φ800 | 32" | 4.5 | 40x6.0x8(10)(12)(15)(20) | 46/57 |
| Big diameter (900 - 3500 mm) diamond circular saw blade segments for cutting |
| Specification | Core Thickness | Segment Size | Segment Number |
| ( mm ) | ( inch ) | (mm) | (mm) | (pcs) |
| φ900 | 36" | 5 | 24x6.6/6.0x10(12) (15)(20) | 64 |
| φ1000 | 40" | 5.5 | 24x7.0/6.4x10(12) (15)(20) | 70 |
| φ1200 | 48" | 6 | 24x8.0/7.4x10(12) (15)(20) | 80 |
| φ1300 | 50" | 6.5 | 24x8.4/7.8x10(12) (15)(20) | 88 |
| φ1600 | 64" | 7.2 | 24x9.0/8.4x10(12) (15)(20) | 108 |
| φ1800 | 72" | 8 | 24x9.8/9.2x10(12) (15)(20) | 120 |
| φ2000 | 80" | 8 | 24x10.5/9.5x10(12)(15)(20) | 128 |
| φ2200 | 88" | 9 | 24x11.5/10.5x(15)(20) | 132 |
| φ2500 | 110" | 9 | 24x12.5/11.5x(15)(20) | 140 |
| φ3000 | 120" | 10 | 24x13.5/12.5x(15)(20) | 160 |
| φ3500 | 140" | 10 | 24x14.5/13.5x15 (20) | 180 |
The size of segment can be customized according to customer requirements, please contact us if you need.
Features of Our Diamond Segment for Stone Cutting.
(1). Good cutting result: smooth cutting, flat surface and even size.
(2). Stable cutting, narrow cutting gap, stone waste reduction.
(3). Reduce cutting friction a lot, improve slab flatness, save energy.
(4). Quality: 90% of Italy Quality but only 30% of Italy Price .
