| Price: | US $ 2132-11029/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | YG-25 |
|---|---|
| Hydraulic Pump: | Yg-25 |
| Voltage: | 220V/380V, 50Hz |
| Rotation: | 1300r/Min |
| Weight: | 170kg |
| Frame & Wheels: | Aluminum |
| Cutting Speed: | 3~5m2/H |
| Motor Power: | 25kw |
| Motor Type: | Hm-80, 2 Cylinders |
| Working Pressure: | 15-20MPa |
| Size: | 720*650*1050mm |
Stone Quarry Concrete Hydraulic Portable Diamond Wire Saw Machine
Product Description
Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Product Features
1. Hydraulic-driven, Diamond Wire Saw Machine can work in different situations.
2. It's made of hard materials. The wedges are running stability. Long surviving life.
3. Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.
4. High Efficiency, and it's easy and comfortable to operate and maintain.

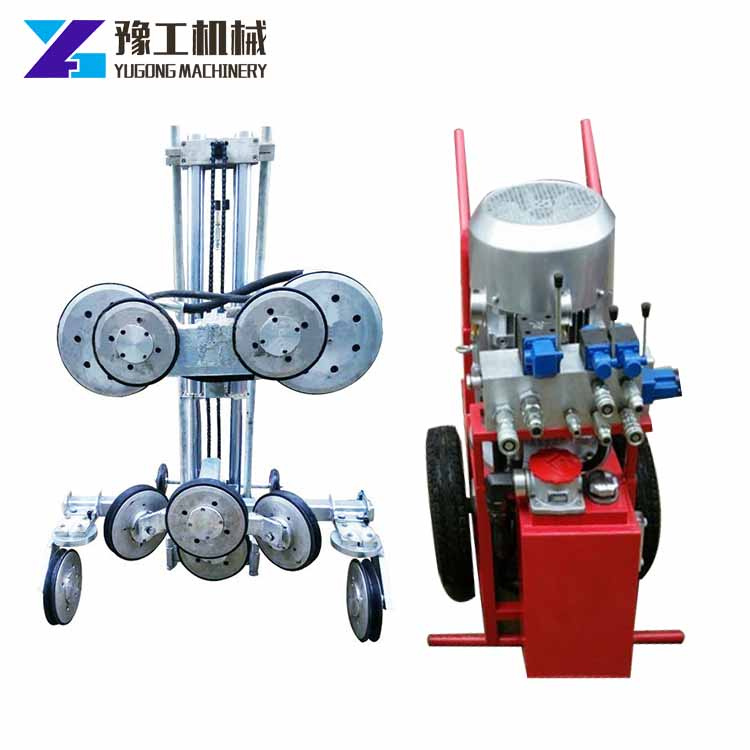

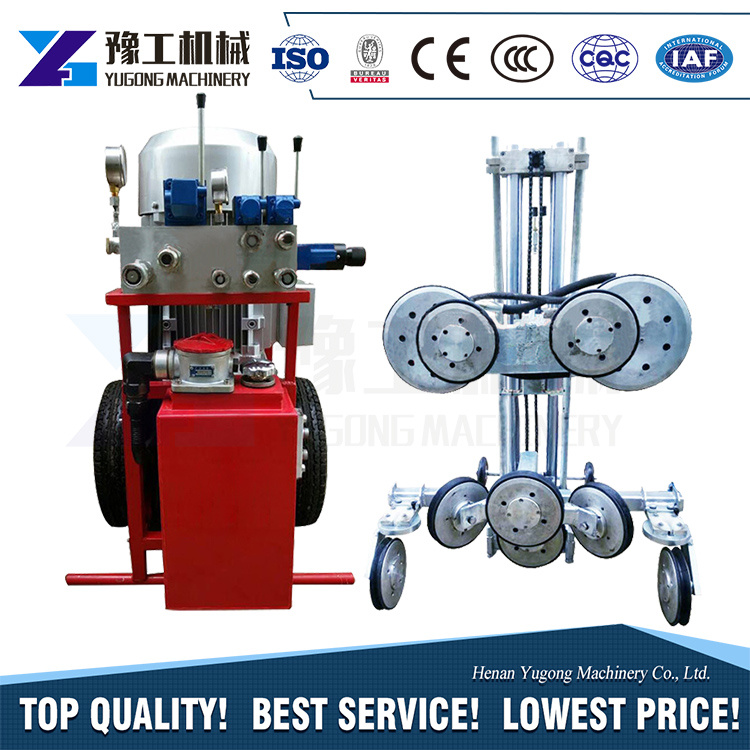

Machine Pictures
Technical Parameter
| Hydraulic wire saw | |
| Wire driving mode | hydraulic |
| Motor type | HM-80(double cylinder) |
| Output frequency | 33HP |
| Axis output rotation | 1300r/min |
| Wire saw(Max.) | 18m |
| Feeding method | automatic hydraulic |
| Cutting machine weight | 64kg |
| Motor weight | 14kg |
| Total weight | 78kg |
| Hydraulic wire saw | |
| Wire driving mode | hydraulic |
| Motor type | HM-80(double cylinder) |
| Output frequency | 33HP |
| Axis output rotation | 1300r/min |
| Wire saw(Max.) | 18m |
| Feeding method | automatic hydraulic |
| Cutting machine weight | 64kg |
| Motor weight | 14kg |
| Total weight | 78kg |

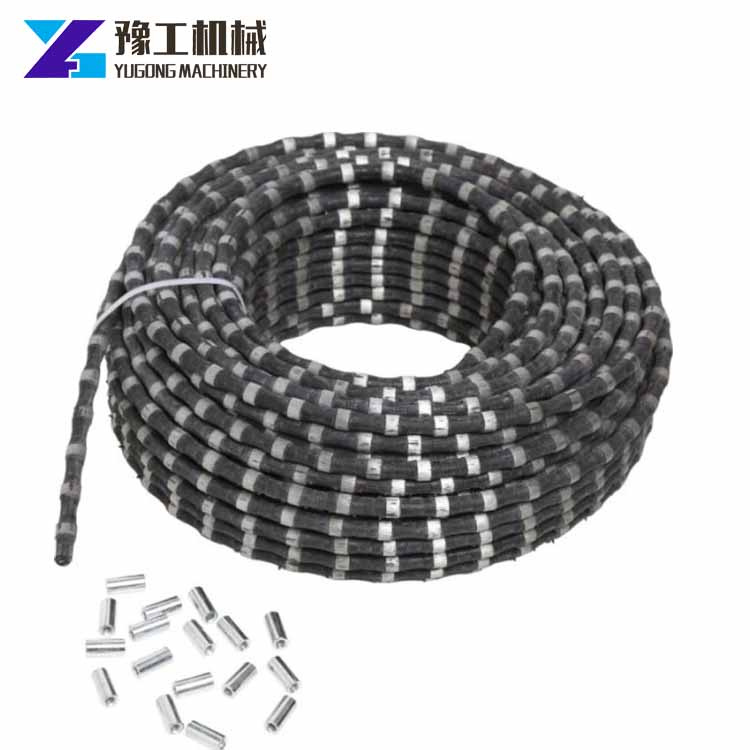

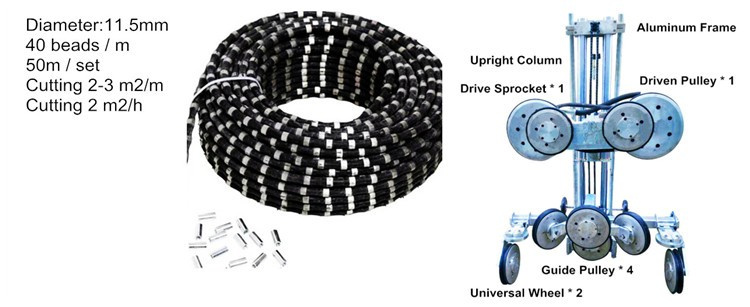

| Diamond wire | |
| Diameter | 11.5mm |
| Beads amount | 40/M |
| Wire length | 50M/circle |
| Working efficiency | 2m2/h |
| Wire consumption | 2-3m2/M |

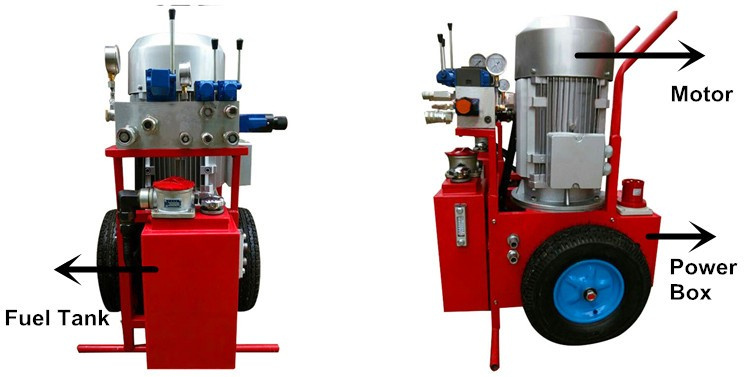

Product Display

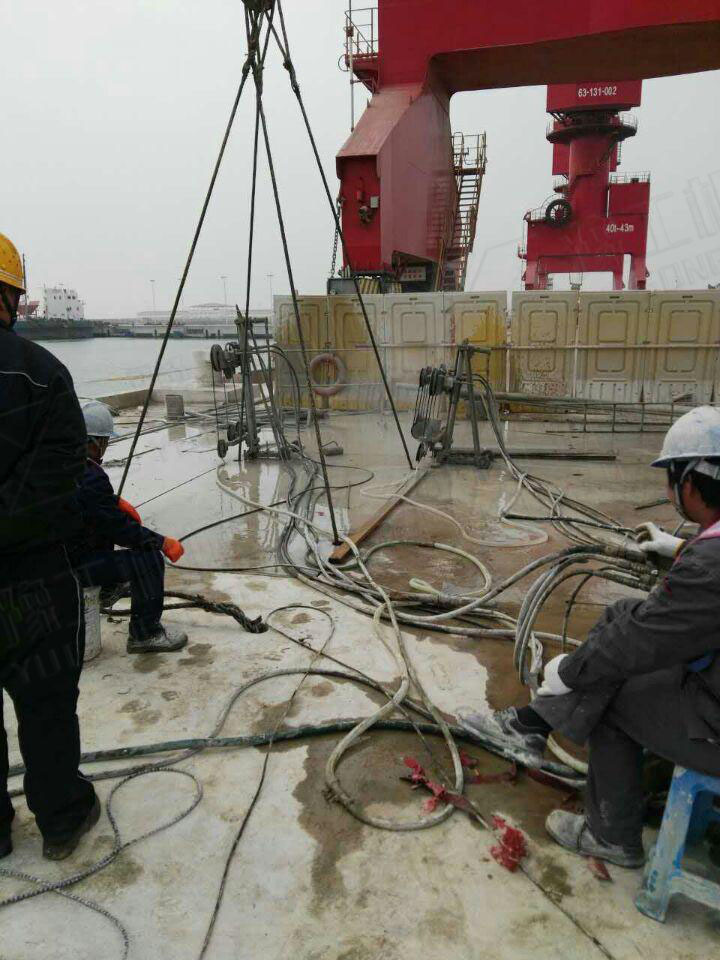

Working Picture
