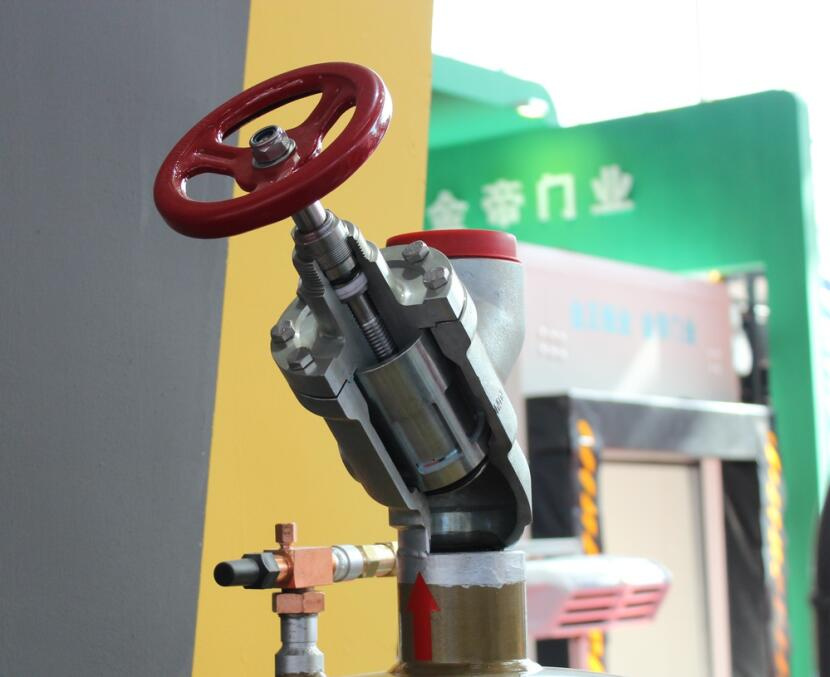

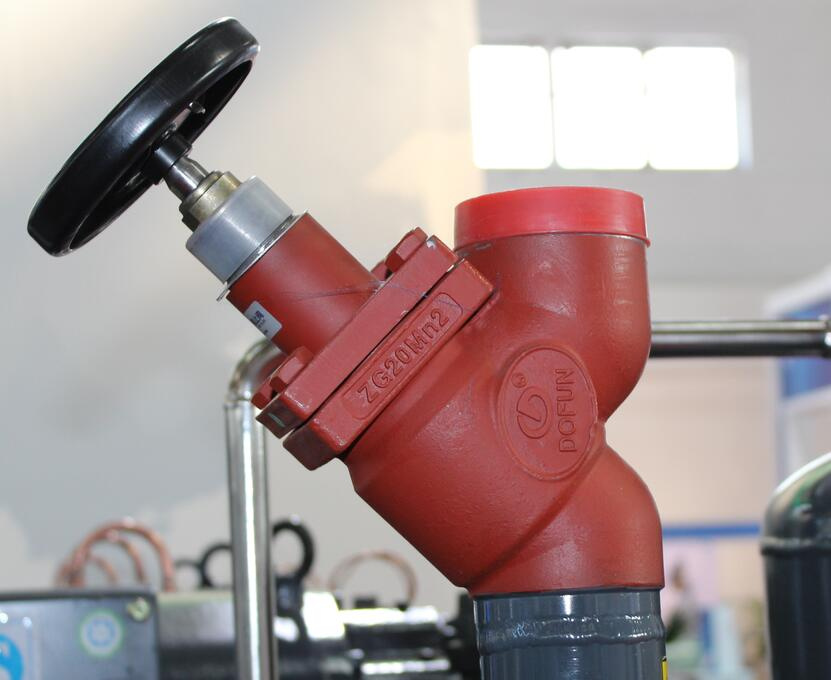

Stop Valve with Handwheel Use on Ice Machine
| Price: |
US $ 27/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
stop valve |
| Export Country: |
Bolivia,India,Chile,Mexico etc |
| Transport: |
by Sea or by Air |
| Structure: |
Y Type |
| Material: |
Carbon Steel and Stainless Steel |
| Actuator: |
Manual |
| Standard: |
GB |
| Certification: |
Ce |
Product Description
| Basic product information : |
| Product name | stop valve with handwheel use on ice machine |
| Nominal pressure | 4.0Mpa |
| Test pressure | 6.0Mpa |
| Temperature arrangement | below 50 degree ~above 150 degree |
| Suitable medium : | Ammonia ,Fluoride |
| Size (inch) | 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 |
| DN(diamemter) | DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 |
| Company information |
| We are specialized in refrigeration valve,like ammonia valve ,Bitzer/carrier/copeland compressor service valve since 2011 ,Passed CE,ISO9001 certificate . Goods export to Chile ,Vietnam,Mexico and Iran etc. countries. |
| Type No. | Nominal diameter | GB-D | DIN-D | Length-L | Handwheel-B | Dimension-E | Connection |
| SVD-S | 15 | 22 | 21.3 | 120 | 80 | 19 | Butt welding |
| 20 | 27 | 26.9 | 120 | 80 | 19 |
| 25 | 32 | 33.7 | 120 | 80 | 19 |
| 32 | 38 | 42.4 | 155 | 80 | 26.5 |
| 40 | 45 | 48.3 | 155 | 80 | 26.5 |
| 50 | 57 | 60.3 | 148 | 100 | 32.5 |
| 65 | 76 | 76.1 | 176 | 120 | 40.5 |
| 80 | 89 | 88.9 | 216 | 160 | 49.5 |
| 100 | 108 | 114.3 | 264 | 200 | 60 |
| 125 | 133 | 139.7 | 330 | 315 | 74 |
| 150 | 159 | 168.3 | 370 | 315 | 87 |
| 200 | 219 | 219.1 | 460 | 400 | 117 |
| 250 | 273 | 273 | 880 | 500 | 136.5 |
| 300 | 325 | 325 | 1045 | 500 | 162.5 |

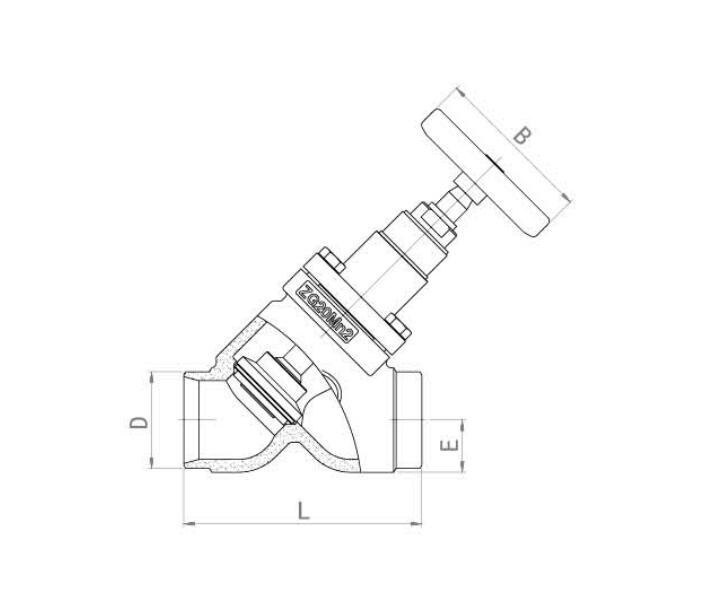

drawing:

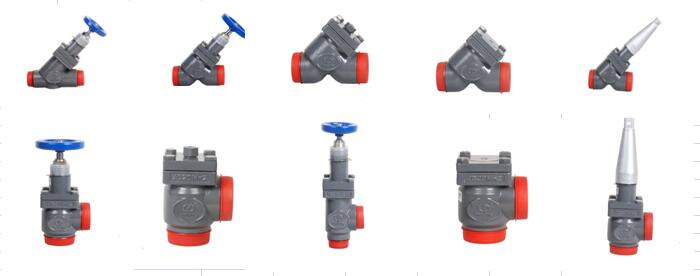

Frequently Asked Question1.What is you MOQ ?20PCS2.Are you factory ? Yes, we are a factory .3.How about your delivery time? Lots of in store,or about 15 working days.4.Is there any discount ? Certainly,different quantity with different discount.5.Shipment By sea or By air 6.PaymentT/T L/C Western Union.Other refrigeration valve as follow:

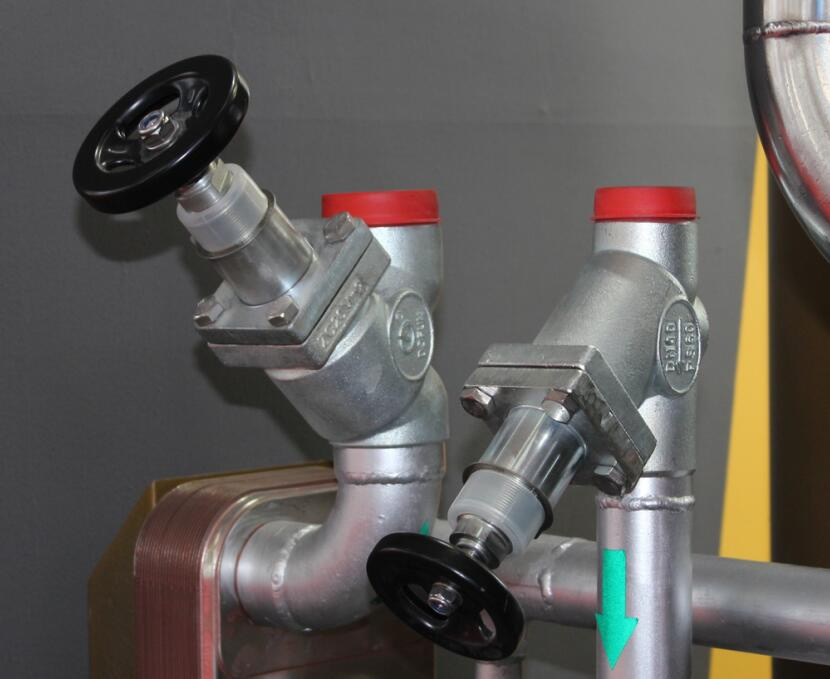

Application:The valve is called stop valve with handwheel use on ice machine with high quality .which is used for ammonia cold room pipe . Which control the flow of ammonia by operate the hand wheel or Aluminum cap.
GYW is a specialized cold-chain system integration service providers in research and development, production, sale, trade, engineering, and construction. Our group is relying on the Chinese Academy of Sciences and their strong technical support. We have our deep technological strength, also closely cooperated with Beijing University and other prestigious universities. We provide advanced scientific, reasonable, first-class solutions for cold chain system.
We are a leading manufacture of refrigeration industrial products in China
We have complete range of products:
Refrigeration unit
Condensing Unit
Cold Storage Plates(PU Panel)
Cold Storage Doors
Cold Chain Storage
Refrigeration Valve
Visit our website, more surprises for you
Wish to get your early inquiry soon.
