| Prod Model: |
12.5mm-160mm |
| Model No.: |
U2/U3/R3/R4 Anchor Chain |
| Type: |
Anchor Chain |
| Class Certificate: |
Lr, ABS, Dnv, BV, Nk, Gl, Rina, CCS.RS.Irs |
| Chain Size: |
12.5mm-160mm |
| Color: |
Black Tarred |

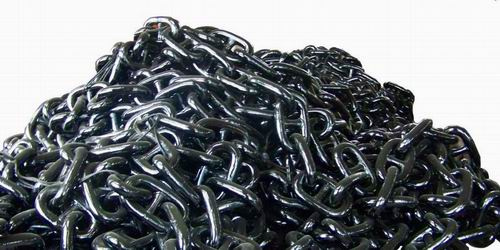

Product Description
1. Primary business: Anchor chain mainly produce:
***Studless anchor chain
***Grade 1, Grade 2 stud link anchor chain (12.5mm-160mm)
***Grade 3 stud link anchor chain
***Anchor chain accessories: kenter shackle, end shackle, swivel pieces etc.
***Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS etc.Chain:stud anchor chain, studless anchor chain, galvanized anchor chain, marine anchor chain, offshore anchor chain, yacht anchor chain, mooring chain, lashing chai, lifting chain etc;Accessories and anchor:Kenter Shackles, 'D' Type Joining Shackles, Anchor Shackles (End Shackles), Swivel Adapters;
Anchors such as Hall Anchor, Spec Anchor, Pool Anchor, Delta Anchor, AC-14 Anchor, Stockless Anchor, Navy Anchor, Four Fluke Anchor, Danforth Anchor etc.2. Product description:Product name:stud link anchor chain, studless link anchor chain, galvanized anchor chain, offshore anchor chain, yacht anchor chain, mooring chainMaterial: anchor chain carbon steel Size:12.5mm-162mmGrade:U1 U2 U3 RQ3 RQ4Surface:Self-color,black treatment, painted, electric galvanized, hot dip galvanized are availableProduce Process:Drawings→ mould making → pre-forging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →deliveryCertificate:LR, ABS, DNV, BV, NK, GL, RINA,CCS.RMRS3. Detailed: | Dia. | Proof load(KN) | Breaking load(KN) | Weight |
| MM | U1 | U2 | U3 | U1 | U2 | U3 | KG/M |
| 11 | 36 | 52 | 72 | 52 | 72 | 102 | 2.65 |
| 12.5 | 46 | 66 | 92 | 66 | 92 | 132 | 3.42 |
| 14 | 58 | 82 | 116 | 82 | 116 | 165 | 4.29 |
| 16 | 76 | 107 | 150 | 107 | 150 | 216 | 5.61 |
| 17.5 | 89 | 127 | 179 | 127 | 179 | 256 | 6.71 |
| 19 | 105 | 150 | 211 | 150 | 211 | 301 | 7.91 |
| 20.5 | 123 | 175 | 244 | 175 | 244 | 349 | 9.20 |
| 22 | 140 | 200 | 280 | 200 | 280 | 401 | 10.60 |
| 24 | 167 | 237 | 332 | 237 | 332 | 478 | 12.61 |
| 26 | 194 | 278 | 389 | 270 | 389 | 556 | 14.80 |
| 28 | 225 | 321 | 449 | 321 | 449 | 642 | 17.17 |
| 30 | 257 | 368 | 514 | 368 | 514 | 735 | 19.71 |
| 32 | 291 | 417 | 583 | 417 | 583 | 833 | 22.43 |
| 34 | 328 | 468 | 655 | 468 | 655 | 937 | 25.32 |
| 36 | 366 | 523 | 732 | 523 | 732 | 1050 | 28.38 |
| 38 | 405 | 581 | 812 | 581 | 812 | 1190 | 31.62 |
| 40 | 448 | 640 | 896 | 640 | 896 | 1280 | 35.04 |
| 42 | 492 | 703 | 981 | 703 | 981 | 1400 | 38.63 |
| 44 | 538 | 769 | 1080 | 769 | 1080 | 1540 | 42.40 |
| 46 | 585 | 837 | 1170 | 837 | 1170 | 1680 | 46.34 |
| 48 | 635 | 908 | 1270 | 908 | 1270 | 1810 | 50.46 |
| 50 | 685 | 981 | 1370 | 981 | 1370 | 1960 | 54.75 |
| 52 | 739 | 1060 | 1480 | 1060 | 1480 | 2110 | 59.22 |
| 54 | 794 | 1140 | 1590 | 1140 | 1590 | 2270 | 63.86 |
| 56 | 851 | 1220 | 1710 | 1220 | 1710 | 2430 | 68.68 |
| 58 | 909 | 1290 | 1810 | 1290 | 1810 | 2600 | 73.67 |
| 60 | 969 | 1380 | 1940 | 1380 | 1940 | 2770 | 78.84 |
| 62 | 1030 | 1470 | 2060 | 1470 | 2060 | 2940 | 84.18 |
| 64 | 1100 | 1560 | 2190 | 1560 | 2190 | 3130 | 89.70 |
| 66 | 1160 | 1660 | 2310 | 1660 | 2312 | 3300 | 95.40 |
| 68 | 1230 | 1750 | 2450 | 1750 | 2450 | 3500 | 101.30 |
| 70 | 1290 | 1740 | 2580 | 1840 | 2580 | 3690 | 107.30 |
| 73 | 1390 | 1990 | 2790 | 1990 | 2790 | 3990 | 116.71 |
| 76 | 1500 | 2150 | 3010 | 2150 | 3010 | 4300 | 126.50 |
| 78 | 1580 | 2260 | 3160 | 2260 | 3160 | 4500 | 133.20 |
| 81 | 1690 | 2410 | 3380 | 2410 | 3380 | 4820 | 143.69 |
| 84 | 1800 | 2580 | 3610 | 2580 | 3610 | 5160 | 154.53 |
| 87 | 1920 | 2750 | 3850 | 2750 | 3850 | 5500 | 165.76 |
| 90 | 2050 | 2920 | 4090 | 2920 | 4090 | 5840 | 177.39 |
| 92 | 2130 | 3040 | 4260 | 3040 | 4260 | 6080 | 185.36 |
| 95 | 2260 | 3230 | 4510 | 3230 | 4510 | 6440 | 197.56 |
| 97 | 2340 | 3340 | 4680 | 3340 | 4680 | 6690 | 206.06 |
| 100 | 2470 | 3530 | 4940 | 3530 | 4940 | 7060 | 219.00 |
| 102 | 2560 | 3660 | 5120 | 3660 | 5120 | 7320 | 227.85 |
| 105 | 2700 | 3850 | 5390 | 3850 | 5390 | 7700 | 241.45 |
| 107 | 2790 | 3980 | 5570 | 3980 | 5570 | 7960 | 250.73 |
| 111 | 2970 | 4250 | 5940 | 4250 | 5940 | 8480 | 269.83 |
| 114 | 3110 | 4440 | 6230 | 4440 | 6230 | 8890 | 284.61 |
| 117 | 3260 | 4650 | 6510 | 4650 | 6510 | 9300 | 299.79 |
| 120 | 3400 | 4850 | 6810 | 4850 | 6810 | 9720 | 315.36 |
| 122 | 3500 | 5000 | 7000 | 5000 | 7000 | 9990 | 325.96 |
| 124 | 3600 | 5140 | 7200 | 5140 | 7200 | 10280 | 336.73 |
| 127 | 3750 | 5350 | 7490 | 5350 | 7490 | 10710 | 353.23 |
| 130 | 3900 | 5570 | 7800 | 5570 | 7800 | 11140 | 370.11 |
| 132 | 4000 | 5720 | 8000 | 5720 | 8000 | 11420 | 381.59 |
| 137 | 4260 | 6080 | 8510 | 6080 | 8510 | 12160 | 411.04 |
| 142 | 4520 | 6450 | 9030 | 6450 | 9030 | 12910 | 441.59 |
| 147 | 4790 | 6840 | 9560 | 6840 | 9560 | 13660 | 473.24 |
| 152 | 5050 | 7220 | 10100 | 7220 | 10100 | 14430 | 505.98 |
| 157 | 5320 | 7600 | 10640 | 7600 | 10640 | 15200 | 539.81 |
| 162 | 5590 | 7990 | 11180 | 7990 | 11180 | 15980 | 574.74 |
Peter Zhu
Mobile: 0086-13646132812 (24 hrs)
Tel:0086-511-85031573Fax:0086-511-85020773Website:www.zjstar-marine.com
ZHENJIANG STAR GROUP Was established in 1996, we' Re specializing in manufacturing & exporting marine equipment. We have three factories for producing mainre goods! We' Ve been devoting ourselves to introducing Chinese best products to worldwide customers. Our advantages are good price, excellent quality, fast delivery & good service!
Our products have been approved by classification societies and government administration, also have got certifications from CCS, GL, BV, DNV, LR, USCG, KR, RINA, NK, EC, etc...
For the last over 15 years, Star-Marine has established its name and reputation in the industry. The company has established the excellent business relationship with the clients from all over the world. Now we are not only providing the standard and regular marine products and services, but also helping design the products to the supplied drawings and samples to meet our clients' Special need.
Quality control is the backbone of the company. Our experienced engineers carry out routine and flight inspections on the products we have booked with each factory. Each order is always carefully handled by our staffs. We stick to the policy that no shipment could be made without the on-site inspection and approval of our authorized engineers. Our team understands that we are not only selling a product but also selling our name and reputation.
We appreciate you spend time visiting the website. We hope the website gives you an idea as to what Sunrise Marine can do for you. We look forward to any of your inquiries for whatever products you need. We also welcome the inquiries for the products that are not listed or displayed in this website.
