Stx-201 Precision Endless Diamond Wire Saw
| Price: |
US $ 99-4999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description

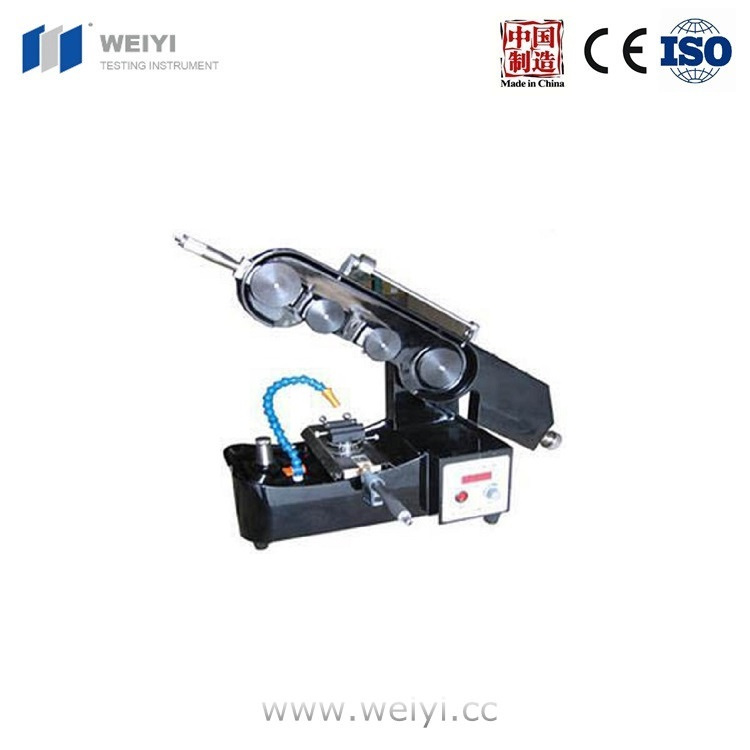

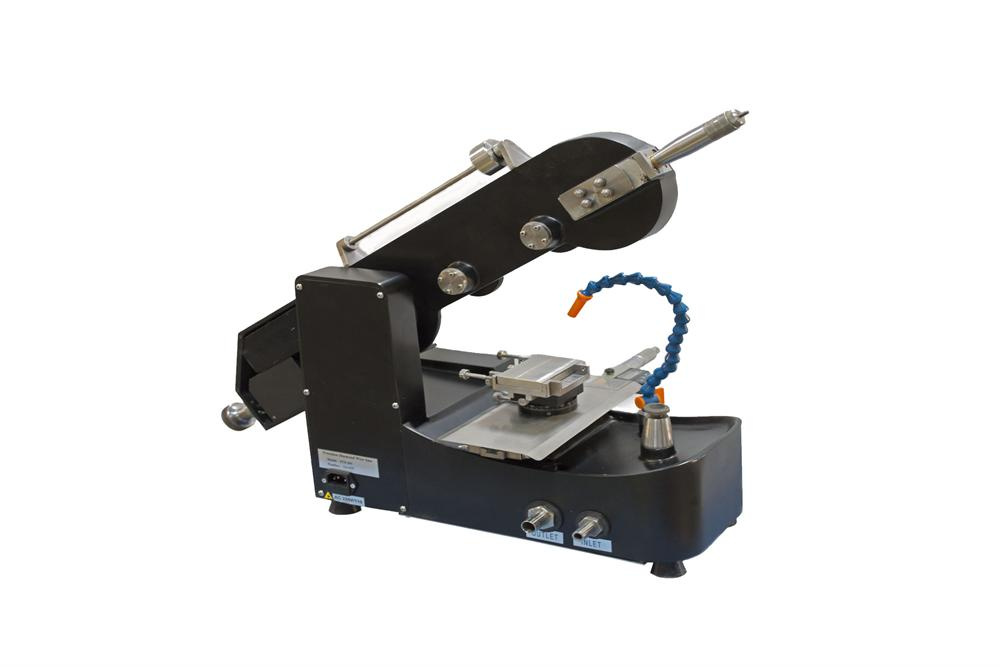

Precision Endless Wire Saw with Digital Micrometer and Two Angle Adjustable Sample Stage - STX-201
Model: | STX-201 Precision Endless Diamond Wire Saw |
Brief Introduction: | STX-201 Precision Endless Diamond Wire Saw is an ideal tool for cutting valuable delicate, fragile, small size materials. Impregnated diamond wire is good for cutting different fragile crystal and substrate. Operating platform can rotate 360°, Y-axis: ±15°quick-change 90° fixture. Cutting wire tension adjustable equipment can achieve precision cutting. |
Technical Parameter: | 1. Stepless speed adjustable: 50-900rpm Cutting wire length: 0.84m(annular)
2. Y, Z-axis indicating value accuracy: 0.01mm
3. Y, Z-axis max travel distance:≤52mm
4. Two dimension vise horizontal /tilt angle:0-360°/±15°
5. Max. cutting diameter and length: 50×50mm |
Specification: | Size:761×295×373mm Weight:25kg |
Standard Accessories: | Diamond annular wire | 2pcs | | Leading wheel | 2pcs | | Water pump | 1pc | | Wax | 4pcs | | Resin ceramic block | 2pcs | | Two dimension vise | 1set | | Cross vise | 1pc | |
|
Optional Accessories : | Diamond impregnated wire 0.25mm diameter(US imported)etc. |
Standard Package: | 1. Power cord
2. Operating platform(horizontal travel distance 25mm, two dimension vise adjustable)
3. A set of quick-change 90° fixture
4. Operation manual |
more information
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.
In 2004, the company passed the ISO9001 quality system certification.
In 2005 we achieved the independent right of import and export.
In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.
We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.
We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
Welcome all friends at home and abroad to our company for visits
