Stx-202A Mini Diamond Wire Saw for Lab Metallographic

Stx-202A Mini Diamond Wire Saw for Lab Metallographic
Price: US $ 99-7999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: Stx-202A

Product Description

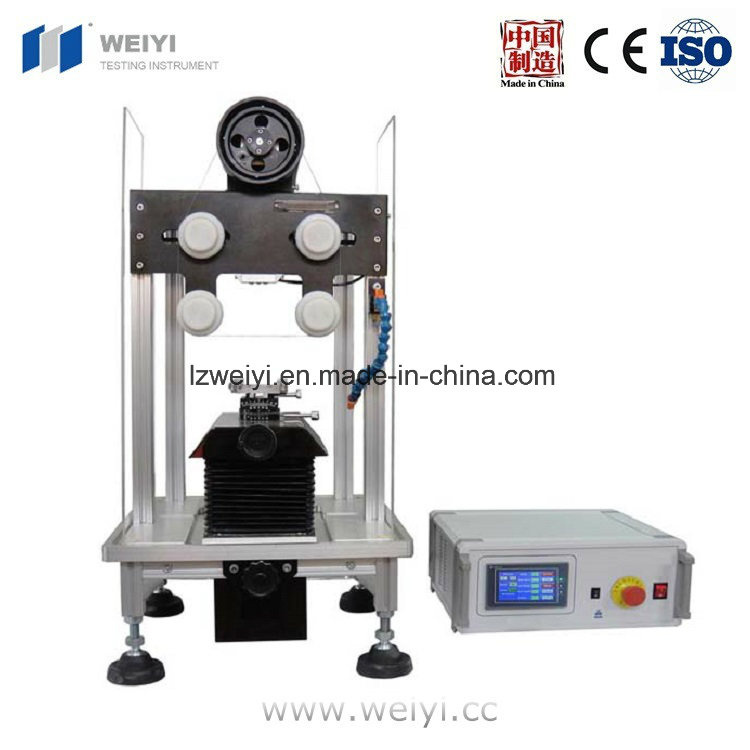

STX-202A (STX-202A is an upgraded version of STX-202 since Mar, 2014 with additional auto-control Y-axis) is a CE certified, small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm in thickness. It is designed to provide a smooth cutting for many kinds of materials, especially for  fragile crystals and TEM or IC sample by using  0.28mm diameter x 15 meter long diamond impregnated wire. It is ideal cutting tool for material research, TEM sample preparation, and  IC failure analysis.
SPECIFICATION:
Power110 - 240V AC  50/60Hz, for universal power
200W Max.
Structure

Heavy-duty aluminum alloy structure with compact size
automatically controlled Y axis by digital panel
single wire swing cutting with adjustable wire length from 5-15mm (broken wire still can be used)
Transparant plastic plates is included to provent Coolant splashing
Add a priming cup behind the forming tube (New design)
Stage traveling distanceZ axis: 50mm,   automatically controlled by digital panel
Y axis: 50mm,  automatically controlled by digital panel
Sample stage                  Two dimension sample stage built in:  360° degree horizontal rotating and +/-10° tilting

Traveling position accuracy+/- 0.01 mm
Controller & Touch ScreenThe saw wire moves along the Z-axis to implement cutting according to user defined program which specifying the cutting length, feed speed, back, speed, and spooler spinning speed.
Cutting SpeedFeed Speed: 0.01 mm/min to 40 mm/min adjustable
Back Speed: 1 mm/min to 100 mm/min adjustable
Diamond wire≤ 15 meters used for each installation
0.30mm dia x 65 meter length Diamond Wire is included for immediate use
A Diamond Blade Dressing Stone is included for keeping the wire sharp.
Optional:
o For slicing or dicing very brittle crystal, you may order 0.12 mm dia. Diamond Wire. Note that 0.12mm dia. Wire is very easy to broken, please reduce feeding rate to minimum.
o For longer wire life, please use LubeCool -150 Smart Solid Lubricant and Coolant
o For better lighting, please consider a Fiber Optic Y-shape Dual Light Microscope Illuminator
Wire traveling speed0- 1.5 M/S adjustable
Cutting Depth & ThicknessMax: 50 mm  in diameter or square
Min. 0.1 mm

Water Pump
One  small water recirculating pump is included for cooling diamond wire during cutting
You must use anti-corrosive oil or radiator water as coolant ( buy from any auto store )
Warning:  must clean machine after each cutting , especially using tap water as coolant.   Otherwise the saw may get rusted
Motor Specification3 Amps, Torque=1.8Nm
Product dimensionsSaw: 414mm(L) × 500mm(W) × 750mm(H)
Controller: 340mm(L) x 290mm(W) x 170mm(H)
Crate dimensions27"(L) x 23"W) x 40" (H)
Shipping Weight188 lbs with 48x40x44"
CertificateCE certified
Application NotesThe flow rate of coolent is adjustable by the valve in the blue feeding tubing. Please adjust it properly to improving cutting performance.
Please use correct cutting fluid. Don't use tap water or any other fluid would cause corrosion of machine parts.
Must clean the machine after each use.
WarningsIt is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil based coolant or lubecool lubricant with the water. Do not use tap water directly, rusted component are not part of the warranty.
Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused to the spooler driving mechanism.
For cutting the sticky materials such as non-ferrous alloy, epoxy and plastic, you must sharpen diamond wire frequently. We suggest that cutting sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the wire sharp enough for efficient cutting.
Please clean the machine after the completion of each use.
