| Price: | US $ 99-7999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |

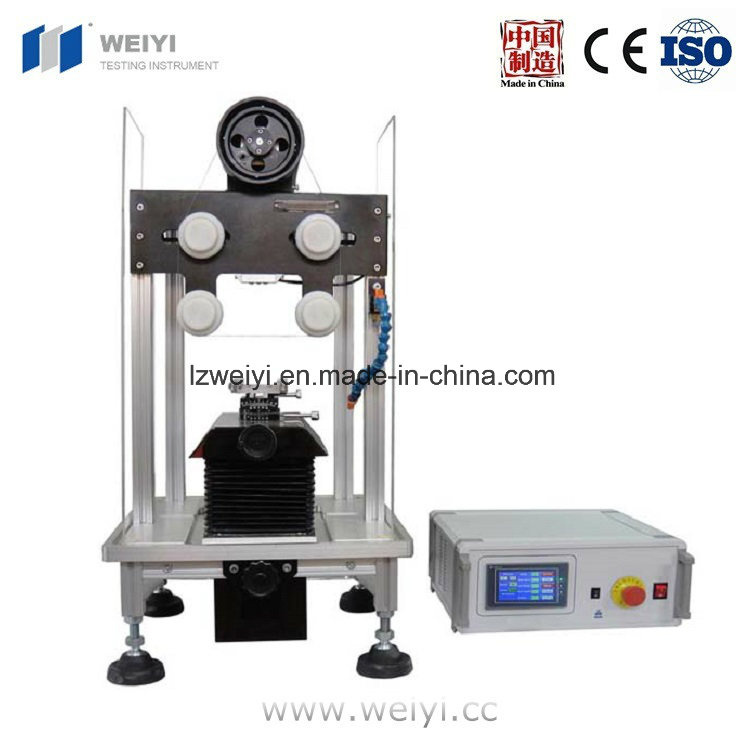

| Prod Model: | STX-202A |
|---|---|
| Used: | No,It Is New |
| Customer: | Physical Aspects |
| Material: | Quality Control |
| Lab: | The University |
| Power | 110 - 240V AC 50/60Hz, for universal power 200W Max. |
| Structure | Heavy-duty aluminum alloy structure with compact size automatically controlled Y axis by digital panel single wire swing cutting with adjustable wire length from 5-15mm (broken wire still can be used) Transparant plastic plates is included to provent Coolant splashing Add a priming cup behind the forming tube (New design) |
| Stage traveling distance | Z axis: 50mm, automatically controlled by digital panel Y axis: 50mm, automatically controlled by digital panel |
| Sample stage | Two dimension sample stage built in: 360° degree horizontal rotating and +/-10° tilting |
| Traveling position accuracy | +/- 0.01 mm |
| Controller & Touch Screen | The saw wire moves along the Z-axis to implement cutting according to user defined program which specifying the cutting length, feed speed, back, speed, and spooler spinning speed. |
| Cutting Speed | Feed Speed: 0.01 mm/min to 40 mm/min adjustable Back Speed: 1 mm/min to 100 mm/min adjustable |
| Diamond wire | ≤ 15 meters used for each installation 0.30mm dia x 65 meter length Diamond Wire is included for immediate use A Diamond Blade Dressing Stone is included for keeping the wire sharp. Optional: o For slicing or dicing very brittle crystal, you may order 0.12 mm dia. Diamond Wire. Note that 0.12mm dia. Wire is very easy to broken, please reduce feeding rate to minimum. o For longer wire life, please use LubeCool -150 Smart Solid Lubricant and Coolant o For better lighting, please consider a Fiber Optic Y-shape Dual Light Microscope Illuminator |
| Wire traveling speed | 0- 1.5 M/S adjustable |
| Cutting Depth & Thickness | Max: 50 mm in diameter or square Min. 0.1 mm |
Water Pump | One small water recirculating pump is included for cooling diamond wire during cutting You must use anti-corrosive oil or radiator water as coolant ( buy from any auto store ) Warning: must clean machine after each cutting , especially using tap water as coolant. Otherwise the saw may get rusted |
| Motor Specification | 3 Amps, Torque=1.8Nm |
| Product dimensions | Saw: 414mm(L) × 500mm(W) × 750mm(H) Controller: 340mm(L) x 290mm(W) x 170mm(H) |
| Crate dimensions | 27"(L) x 23"W) x 40" (H) |
| Shipping Weight | 188 lbs with 48x40x44" |
| Certificate | CE certified |
| Application Notes | The flow rate of coolent is adjustable by the valve in the blue feeding tubing. Please adjust it properly to improving cutting performance. Please use correct cutting fluid. Don't use tap water or any other fluid would cause corrosion of machine parts. Must clean the machine after each use. |
| Warnings | It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil based coolant or lubecool lubricant with the water. Do not use tap water directly, rusted component are not part of the warranty. Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused to the spooler driving mechanism. For cutting the sticky materials such as non-ferrous alloy, epoxy and plastic, you must sharpen diamond wire frequently. We suggest that cutting sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the wire sharp enough for efficient cutting. Please clean the machine after the completion of each use. |
| company information | Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building . |
| In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets. |
