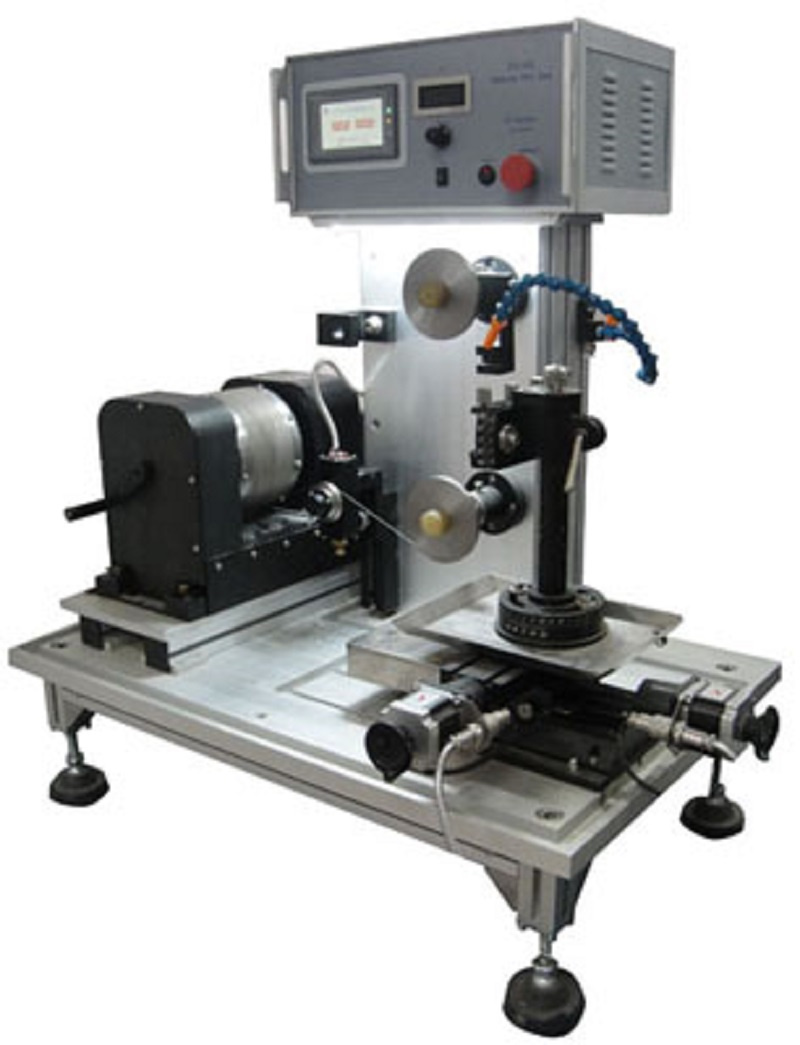

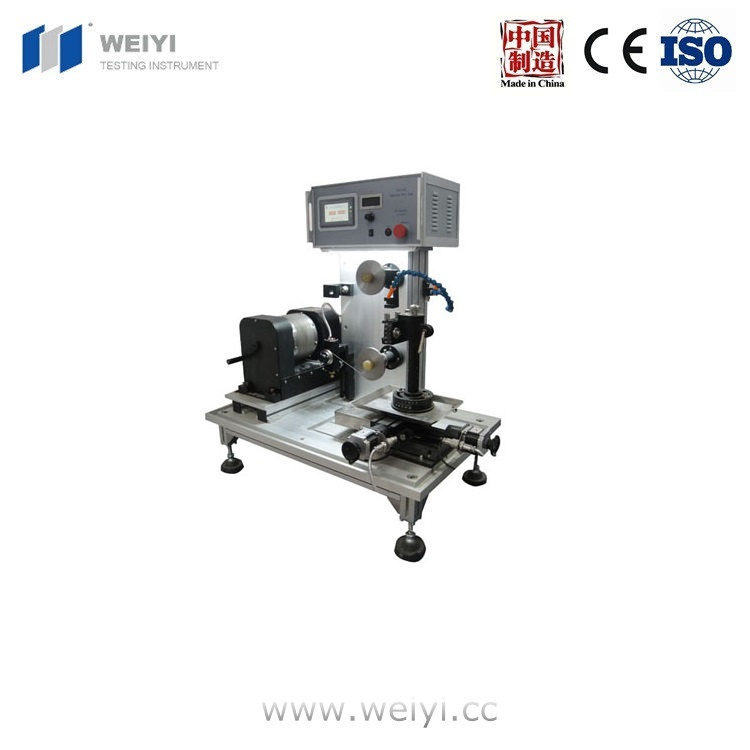

Stx-402 Desktop Diamond Wire Saw for Metallographic Sample
| Price: |
US $ 99-1999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
Model: | STX-402 Desktop Diamond Wire Saw |
Brief Introduction: | STX-402 Desktop Diamond Wire Saw is a specialized researching and manufacturing diamond wire cutting machine, desk-top equipment, used for cutting different hardness crystal, ceramic, especially for processing fragile crystal. Max. cutting dimension is 6 inches. |
Main Feature: | Cutting all kinds of mentals and nonmetalcomposite materials, different hardness crystal, ceramic, especially for processing fragile crystals. Sample holder can adjust two dimension, can ensure accuracy of the cutting crystal orientation. Can use metal wire and abrasive grout for cutting. Diamond wire cutting, better processing quality. |
Technical Parameter: | 1. 30-64m domestic and imported 0.25-0.45 diameter mini diamond wire back and forth cutting, wire length adjustable.
2. Stepper motor feed automatic cut, cutting speed is adjustable and depends on different materials, can improve the cutting quality, increase acceptable life of mini diamond wire.
3. Equip with two dimension adjustable horizontal and vertical rotary angle accuracy:+/-10sample holder, convenient to adjust crystal cutting crystal orientation.
4. Cutting or slicing all kinds of materials, especially for very brittle crystals, such as SrTiO3, ZnO, LiNbO3 and GaAs etc, slicing the success rate can reach as much as 99%.
5. X-axis travel distance:≤110mm Y-axis travel distance:≤110mm
6. Max. cutting diameter and length:80×100mm
7. Diamond wire length:≤80m Diamond wire diameter:≤0.45mm Accuracy:0.01mm |
Specification: | Size:810mmx 700mmx910mm Weight:110kg |
Standard Accessories: | 1 | Diamond wire | 2pcs | | 2 | Tension wheel | 1pc | | 3 | Leading wheel | 2pcs | | 4 | Water pump | 1pc | | 5 | Wax | 4pcs | | 6 | Resin ceramic block | 2pcs | |
|
Optional Accessories : | 1. Diamond wire:Φ0.14mm, 0.20mm, 0.30mm, 0.40mm, 0.45mm 2. Cool Lubricant |
More Information
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.
In 2004, the company passed the ISO9001 quality system certification.
In 2005 we achieved the independent right of import and export.
In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.
We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.
We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
