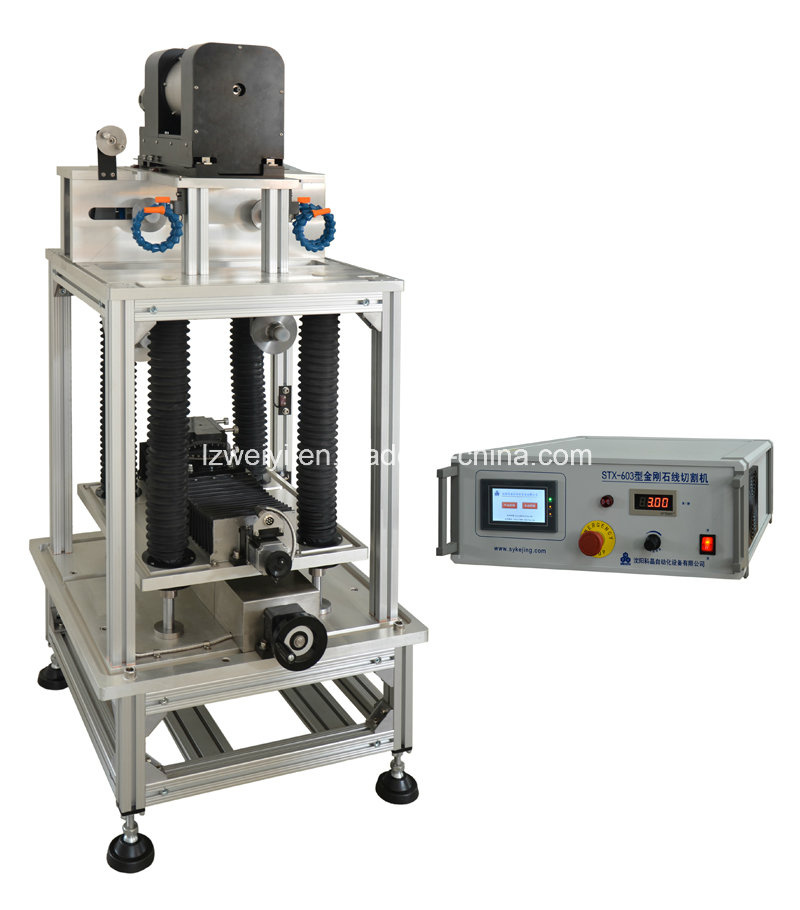

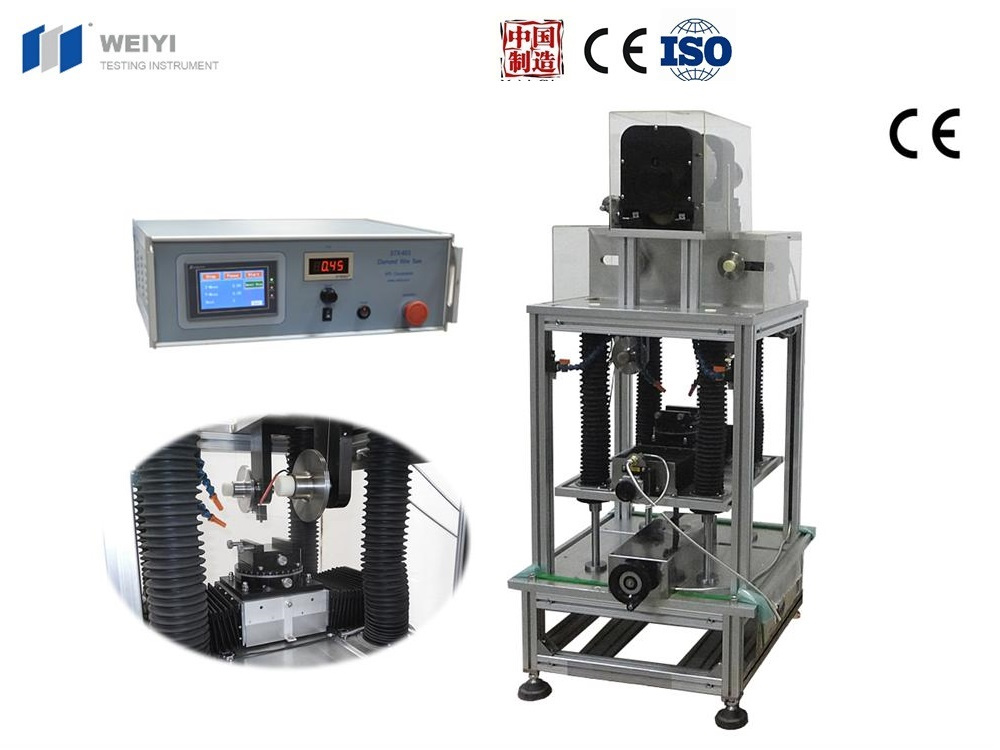

Stx-603 Precision Diamond Wire Saw for Lab Sample
| Price: |
US $ 99-7999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description
Model: | STX-603 Precision Diamond Wire Saw |
Brief Introduction: | STX-603 Precision Diamond Wire Saw is a CE certified cutting saw and designed for material researchers to precision cut materials, such as crystal, ceramic, glass, fire proof material, rock, mineral, architectural material, metal, plastic, PCB board, etc. Especially for precision cutting ultrathin samples, the final thin can reach to 0.1mm. Product sells to research institutes, universities and research department of famous companies, small and medium-sized companies for the relevant material analysis. |
Product Usage: | Precision cutting analytical material samples, such as crystal, ceramic, glass, fire proof material, rock, mineral, architectural material, metal, plastic, PCB board, etc. |
Main Feature: | 1. Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample,especially for processing fragile material. 2. Cutting by diamond wire, convenient to operate, good quality. 3. Heavy-duty aluminum alloy structure with compact size. |
Technical Parameter: | 1 | Wire traveling speed | 0~3m/s(adjustable) | 2 | Diamond wire length | ≤80m | 3 | Diamond wire diameter | ≤0.45mm | 4 | Z-axis operating platform max travel distance | ≤165mm | | | Y-axis operating platform max travel distance | ≤180mm | 5 | Y-axis traveling position accuracy | 0.01mm | 6 | Two dimension adjustable operating platform | Horizontal rotating :360°, Two dimension vise:(+/-)10°, position accuracy:5' | 7 | Max. cutting diameter and length | Ø150mm×150mm |
|
Specification: | 1. Size:617mmx 620mm x 1451mm 2. Net weight:110kg |
Standard Accessories: | Diamond wire | 2pcs | | Tension wheel | 2pcs | | Leading wheel | 2pcs | | Water pump | 1pc | | Wax | 4pcs | | Resin ceramic block | 2pcs | |
|
Optional Accessories : | 1. Diamond wire:Φ0.14mm, 0.20mm, 0.30mm, 0.40mm,0.45mm
2. Cutting coolant Circulating Tank with Pump
3. Cool Lubricant |
Standard Package: | Carton, suitable for long-distance transport |
More Information
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.
In 2004, the company passed the ISO9001 quality system certification.
In 2005 we achieved the independent right of import and export.
In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.
We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.
We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
Welcome all friends at home and abroad to our company for visits
