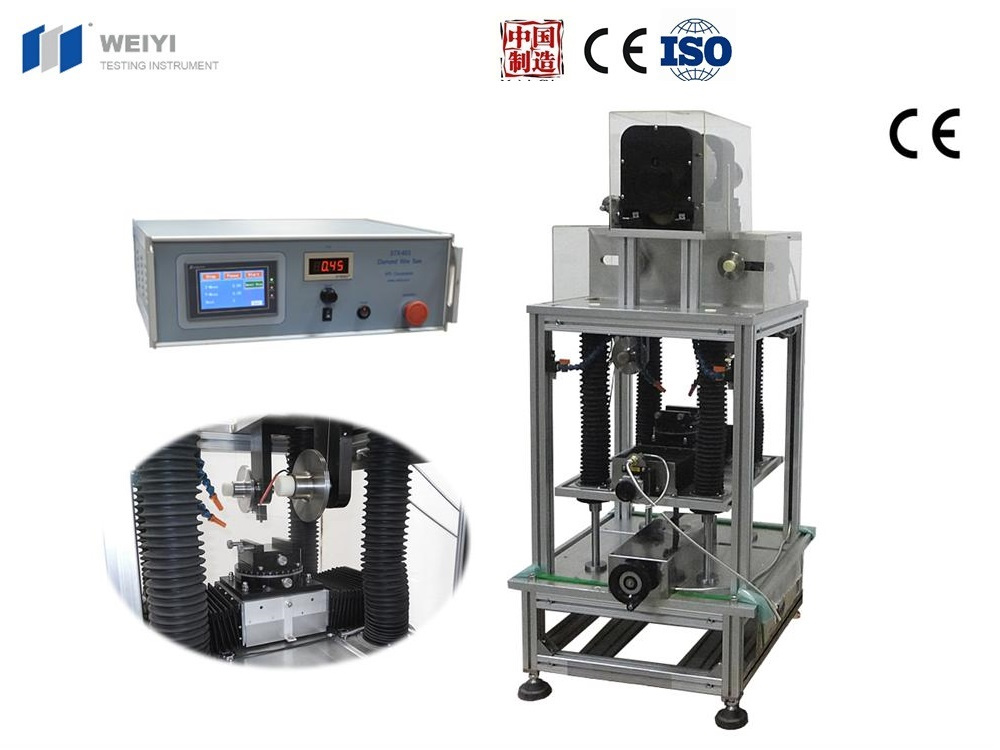

STX-603 Precision Diamond Wire Saw is a CE certified cutting saw and designed for material researchers to precision cut materials, such as crystal, ceramic, glass, fire proof material, rock, mineral, architectural material, metal, plastic, PCB board, etc. Especially for precision cutting ultrathin samples, the final thin can reach to 0.1mm. Product sells to research institutes, universities and research department of famous companies, small and medium-sized companies for the relevant material analysis.
Product
Usage:
Precision cutting analytical material samples, such as crystal, ceramic, glass, fire proof material, rock, mineral, architectural material, metal, plastic, PCB board, etc.
Main
Feature:
1. Cutting different hardness of crystal, ceramic, glass, fire proof material, rock sample,especially for processing fragile material.
2. Cutting by diamond wire, convenient to operate, good quality.
3. Heavy-duty aluminum alloy structure with compact size.
Technical
Parameter:
1
Wire traveling speed
0~3m/s(adjustable)
2
Diamond wire length
≤80m
3
Diamond wire diameter
≤0.45mm
4
Z-axis operating platform max travel distance
≤165mm
Y-axis operating platform max travel distance
≤180mm
5
Y-axis traveling position accuracy
0.01mm
6
Two dimension adjustable operating platform
Horizontal rotating :360°, Two dimension vise:(+/-)10°, position accuracy:5'
7
Max. cutting diameter and length
Ø150mm×150mm
Specification:
1. Size:617mmx 620mm x 1451mm
2. Net weight:110kg
Standard
Accessories:
Diamond wire
2pcs
Tension wheel
2pcs
Leading wheel
2pcs
Water pump
1pc
Wax
4pcs
Resin ceramic block
2pcs
Optional
Accessories :
1. Diamond wire:Φ0.14mm, 0.20mm, 0.30mm, 0.40mm,0.45mm 2. Cutting coolant Circulating Tank with Pump 3. Cool Lubricant
Standard
Package:
Carton, suitable for long-distance transport
