Submerged Arc Welding Flux (SAW) Powder Which Replace Japan-Made Nb-70m Flux
| Price: |
US $ 400-450/Ton |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
sj604 |
| Size: |
10-60mesh |
| OEM: |
Accpete |
| Accompanied Wire: |
308L,309L,316L,347L Stailess Steel Wire |
| Applications: |
High-Alloy Heat-Resistance Steel |
| Color: |
Blue Gray to Dark Gray |
| Suitable For: |
Surfacing/Hardfacing/Cladding |
| Brand: |
Panding |
| Free Sample: |
Offered |
| Key Word: |
Welding Flux |
| Steel: |
Stailess Steel |
| State: |
Solid |
| PH: |
Alkaline |
| Type: |
Inorganic |
| Chemical Composition: |
Sio2+TiO2=15-20 |
| Function: |
for Welding Stailess Steel Wire |
| Manufacturing Method: |
Sintering |
Product Description
Agglomerared Welding Flux SJ604 for hard-facing by single-way spiral welding, swaying welding and strip cladding.Technical Data Sheet:
1)Specifications:
EN760 SA CS 1 55 DC H52)Characteristics:
LH-SJ604 is an agglomerated fluoride-basic type flux. Basicity: 1.8- 2.0 ( BIIW).
Grain size: 10 to 60 mesh
LH-SJ604 is a kind of agglomerated flux specially developed for hard-facing/ cladding with the flux-cored wire or strip. The specific gravity in bulk pack is about 0.9. The raw materials of the flux are of high purity and the content of S and P is lower than 0.02%
When welding with flux-cored welding wires of N<0.012%, LH-sj604 possesses the following
features: it has a good appearance of weld and smooth clean surface, without slag inclusions, without pores, and it has less loss of alloy elements, keeping the welding layers to have properties of erosion resistance, anti-aging and abrasion resistance. It may replace Japan-made NB-70m flux.
3)Applications:
LH-SJ604 is designed for hard-facing by single-way spiral welding, swaying welding and strip cladding.4)Chemical Composition(%)
| SiO2+TiO2 | Al2O3+MnO | CaO+MgO | CaF2 | S | P |
| 15-20 | 25-30 | 28-35 | 10-15 | ≤0.02 | ≤0.02 |
5)Chemical Components of the Deposited Metal, with flux-cored welding wire 414N{M} of Sitaili| Item | C | Mn | Si | S | P | Cr | Mo | Ni | V | N | HRC |
| WIRE 414N | 0.08 | 1.0 | 0.60 | | | 13.5 | 1.0 | 4.3 | | 0.11 | |
| ALL WELD | 0.05 | 0.95 | 0.84 | 0.01
9 | 0.02
0 | 13.38 | 0.87 | 3.81 | 0.24 | 0.07
0 | 44 |
6)Chemical Components of the Deposited Metal, with flux-cored welding wire DIAMOND 323:
| C | Mn | Si | S | P | Cr | Mo | Nb | Ni |
0.25-0.
4 | 1.2-1
.5 |
≤0.6 |
≤0.02 |
≤0.02 |
11-13 | 0.9-1.
2 | 0.2-0
.4 | 2.0-3.
0 |
7)Cautions:
The welding flux must be baked for 2 hours at the temperature of 300-350 centigrade before welding. After welding, the used flux should be screened with 10-40 mesh screen to remove small slags and fine powder. Direct current is a better choice in welding, and parameter when matched with fluxcored welding wire 3.2mm suggested is: Ampere 350 to 550 A, voltage 28 to 34 V, and welding speed 25 to35 M/H.
Packing Details:Bag:25 KGS/Kraft Bag With Plastic Lining InsidePallet:40 Bags(1 Ton)/Plywood PalletContainer:20-24 Tons/ContainerOEM Packing Design Can Be Accept According To Your Requirement

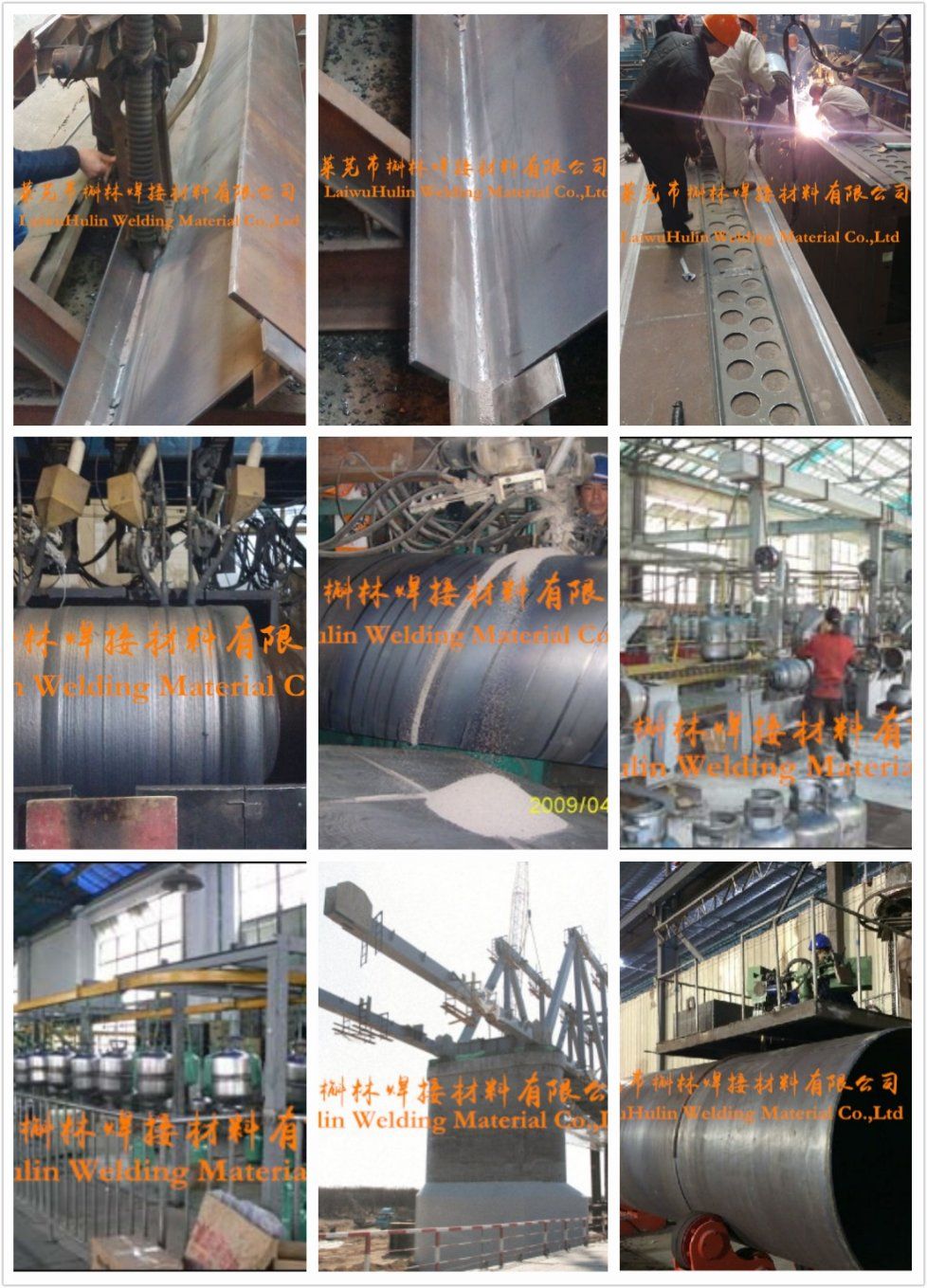

Our service1)Prime quality+Competitive price+Thoughtful Service=100% Satisfication 2)We can research and produce customerized fluxes according to your different demands. 3)SAW Welding Flux Expert- One Stop Solution For Submerged Arc Welding consumables.APLICATION:

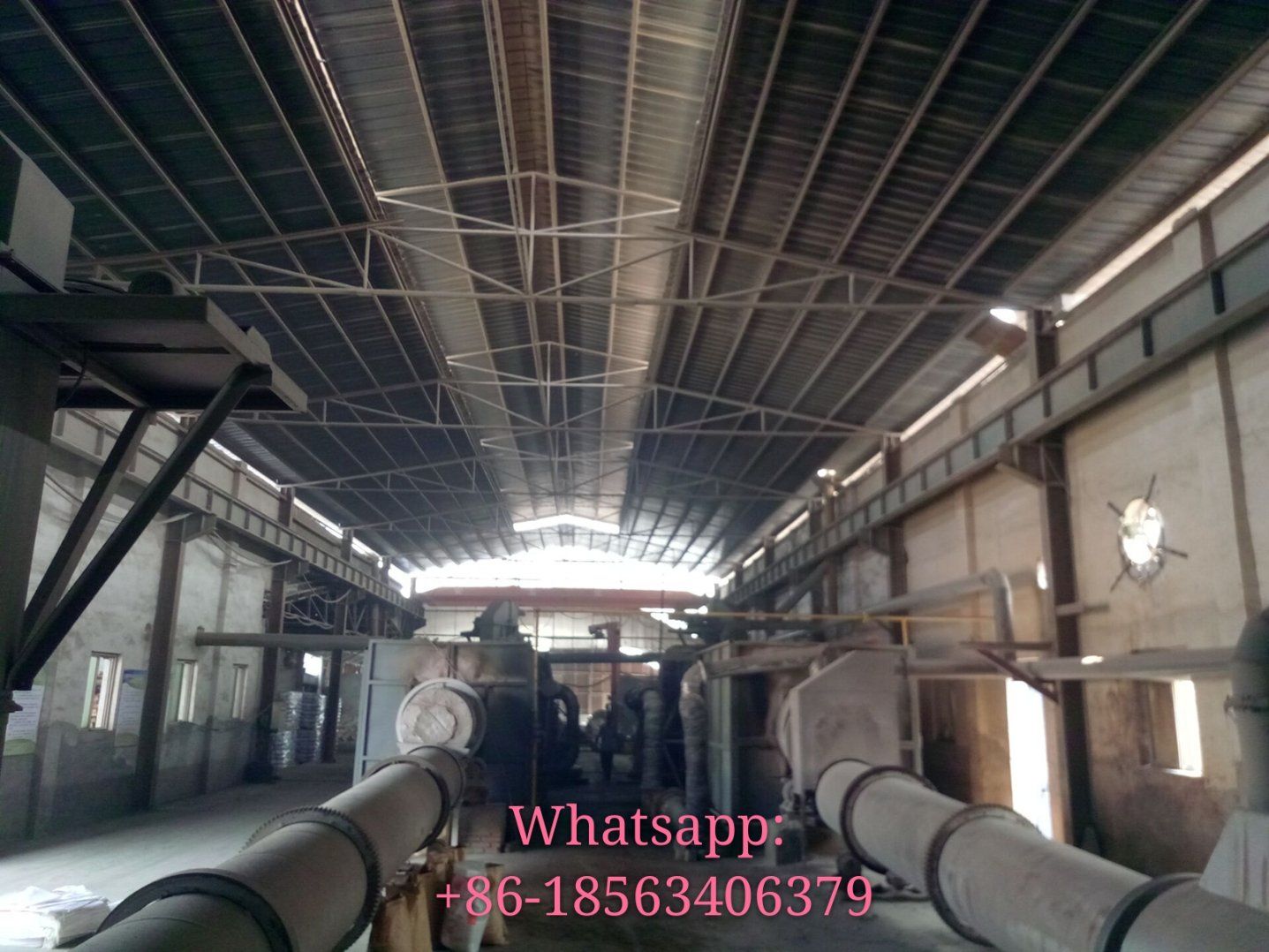

Production Line:
Customer Visit:
Packaging & Shipping:

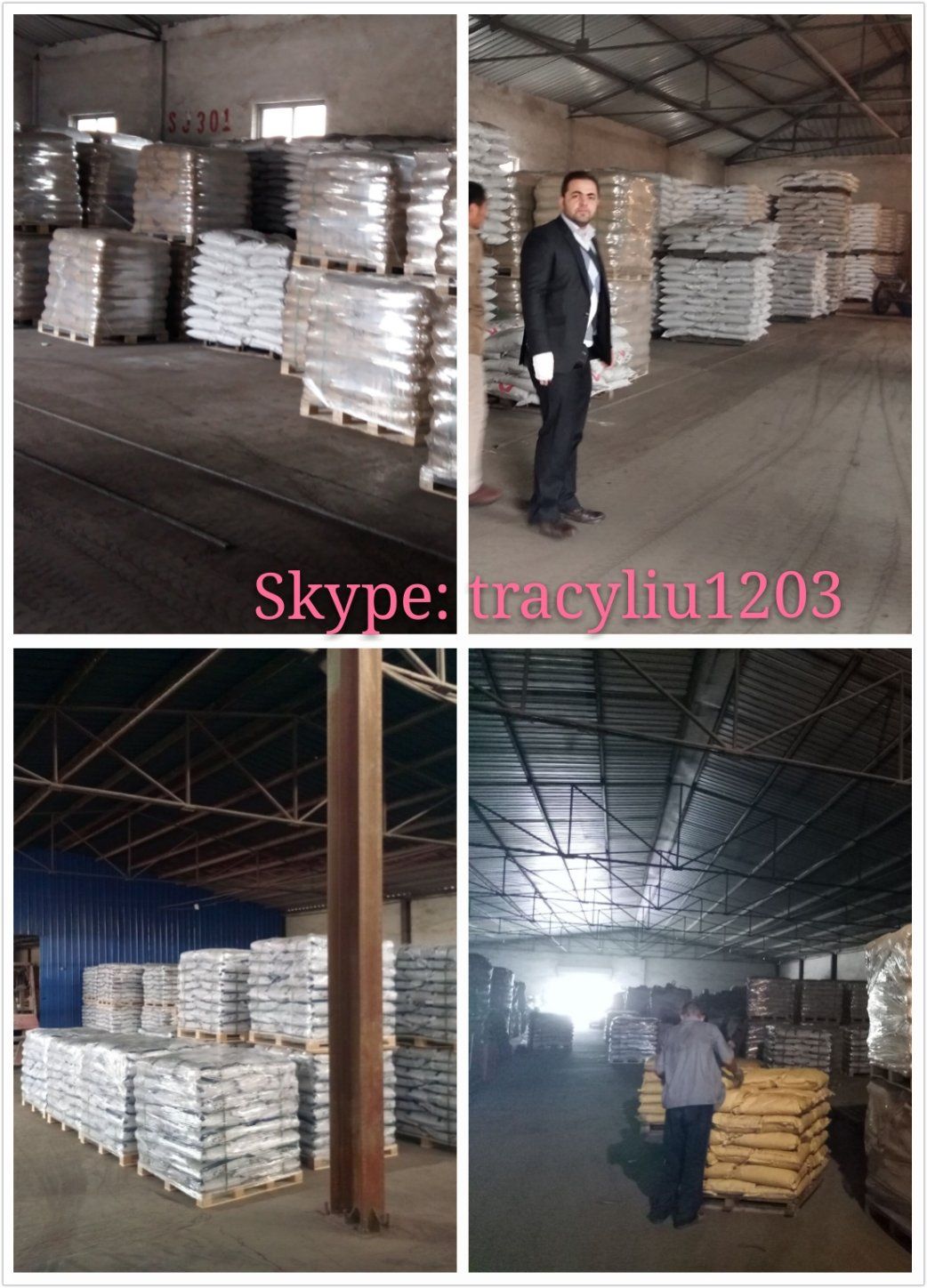

Warehouse:
Factory Introduction:LAIWU HULIN WELDING MATERIALS CO.,LTD. is top three original factory of Submerged ARC welding flux in China. Factory was founded in 1994, quality systerm: ISO9001-2008.Main products: SJ101,SJ101G,SJ301,SJ50,SJ601.HJ431,HJ107,HJ260 etc.Application: Spiral steel pipe,API pipe, Structural steel, LPC Gas Cylinder, Pressure vessel, Boiler, Bridges etc.Yearly capacity:30000mtOEM & buyer label is ok. Technical support can be offered.FAQ:Q. 1 Can you provide free sample?A: Total free sample(including freight cost) can be offeredQ. 2 What is your delivery time?A: Within 7 days after receiving deposit.Q: 3 Is your price competitive with other companies?A: Our goal is to give the best price with same quality and best quality with the same price. We do everything we can to reduce your cost.Q. 4 How about OEM?A: OEM IS OK.Q. 5 Why we should choose your company?A: Firstly, we are ORIGINAL factory. We can guarantee delivery time and provide special requirements for customers.Secondly, we have professional foreign trade team with high efficiency communications and professional solutions. Thirdly, we have special team work for after sales services 24*7 to help you slove any kind of problemContact us:
