Sunbow 2: 1 Adhesive Lined Heat Shrink End Caps for Sealing

Sunbow 2: 1 Adhesive Lined Heat Shrink End Caps for Sealing
Price: US $ 0.2-18.22/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SB-WRSFM
Working Temp: -45~+105 C
Shrink Temp: 110~130c
Shrink Ratio: 2:1
Standard Color: Black
Cable Size: 6~240mm
Length: 22~270mm
Application: Cables etc
Type: Insulation Sleeve
Chemistry: Organic Insulation
Thermal Rating: A 105
Maximum Voltage: <10KV
Material: Polyolefin
Certification: Ts16949
Color: All Colors
Brand: Sunbow

Product Description

Model Number: SB-WRSFM
Heat shrink end caps are a simple yet effective method for sealing cable ends, pipe, conduit or other similar objects.

Features
2:1 shrink ratio
Superior resistance to weathering
Resistant to common fluids
Standard adhesive liner provides coated hot melt adhesive resists continuous operating temperature
Shrink temperature: start at 110ºC, and fully recovered at 130ºC

 Dimension
    SizeSize after recovery(mm)Size as supplied (mm)Cable sizes(mm)
Inner DiameterWall thicknessInner DiameterWall thicknesslength Outer Diameter
Φ 11 ≤6.51.1±0.1 ≥110.7±0.2   ≥22Φ6-9
Φ 16 ≤8.02.5±0.1 ≥161.2±0.2   ≥70Φ9-14
Φ 20 ≤8.02.5±0.1 ≥201.2±0.2   ≥70Φ9-17
Φ 25 ≤112.5±0.1 ≥251.2±0.2   ≥80Φ12-22
Φ 32 ≤172.6±0.1 ≥321.5±0.2   ≥90Φ17-27
Φ 40 ≤152.8±0.1 ≥401.5±0.2   ≥90Φ20-35
Φ 55 ≤252.8±0.1 ≥551.5±0.2≥125Φ28-45
Φ 75 ≤303.2±0.1 ≥751.8±0.2≥145Φ40-65
 Φ 100 ≤423.5±0.1 ≥1001.8±0.2≥140Φ50-90
 Φ 120 ≤593.5±0.1 ≥1201.8±0.2≥155Φ70-110
 Φ 140 ≤634.0±0.1  ≥1402.0±0.2≥180Φ90-130
 Φ 250 ≤944.0±0.1  ≥2502.0±0.2≥270Φ120-240

Technical Data
PropertyTest MethodStandard Value
Operating temperatureIEC 216-45ºC to+105ºC
Tensile strengthASTM-D 2671≥13MPa
Elongation at breakASTM-D 2671≥300%
Tensile strength after agingASTM-D-2671/120ºC,168hrs≥10MPa
Elongation at break after agingASTM-D-2671/120ºC,168hrs≥240%
Dielectric strengthIEC 243≥15kV/mm
Volume resistanceASTM-D-2303≥1×1013Ohm.cm
Dielectric constantIEC 2503.0
Radial shrinkage-≥50%
EccentricityASTM-D-2671≤35%
Low Temperature FlexibilityASTM-D-2671-40ºC, 4hrs, no cracking
Minimum shrink temperature-90ºC
Minimum fully recovered
temperature
-130ºC

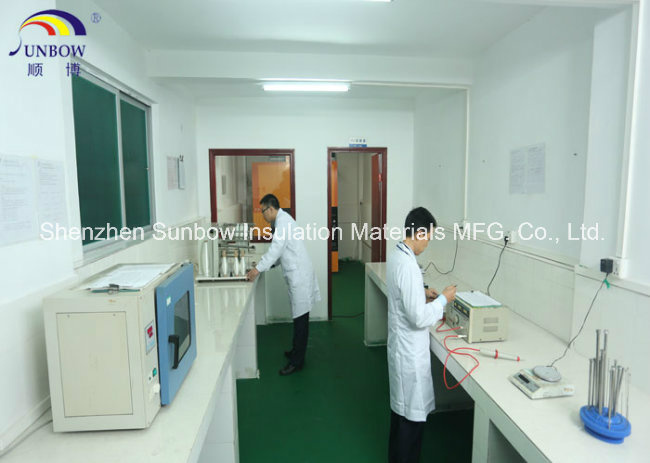

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.

Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

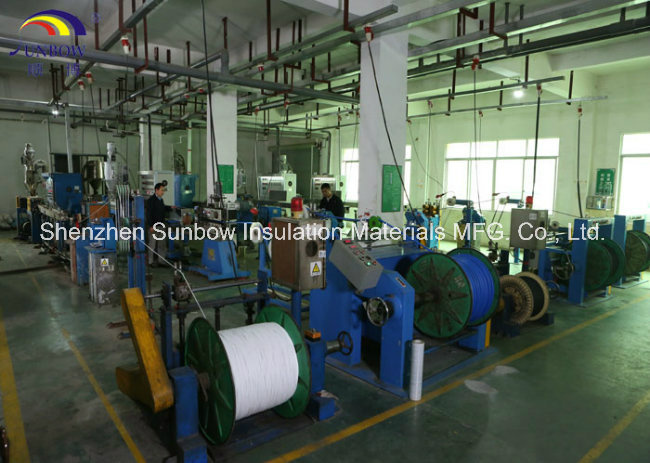

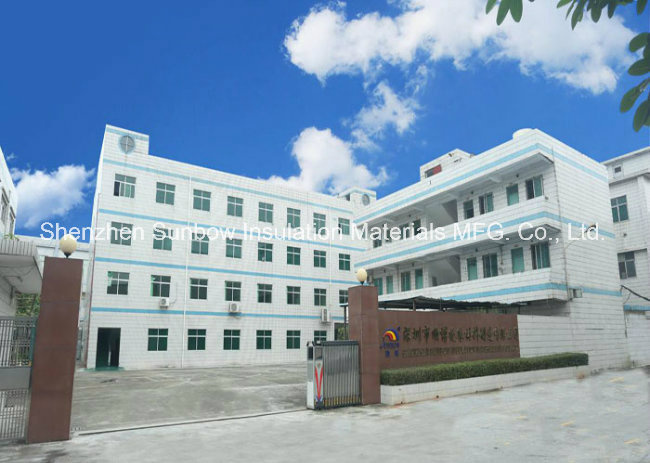

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.

Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.

We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
