| Prod Model: |
SY-DSB-012(Diamond Saw Blade) |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
300 - 3500 |
| Core Thick(mm): |
2.2/2.4 - 11 |
| Segment Size(mm): |
40*3.0/3.2*12/15 - 24*14.5/13.5*20 |
| Seg No(PCS): |
21/24 - 180 |
| Certification: |
SGS, ISO9001:2000, BV |
| Company Website: |
HTTP://Www.Sunnytools.Biz |
| Slot Type: |
Norrow Slot |
| Delivery Detail: |
7 - 15 Days |
| Core Type: |
Silent or Normal |
| Saw Blade External Diameter: |
250-3500mm |
Product Description

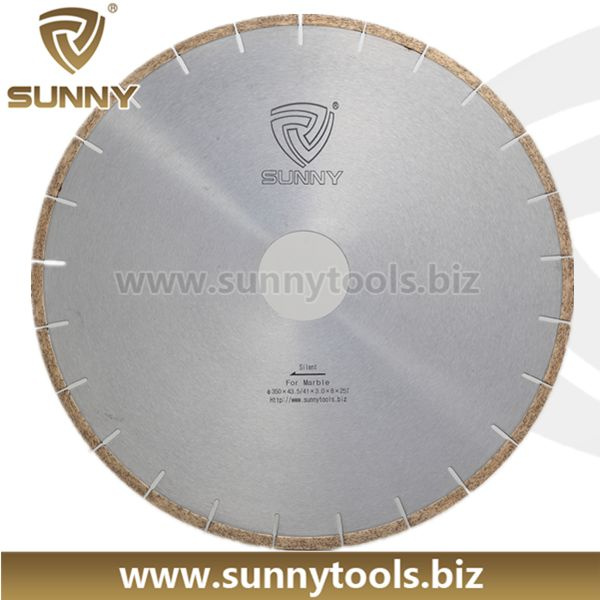

Diamond Blade, Diamond cutting Disc
Silver welding, used for Triming&cutting slab edge, suitable for Granite, sandstone, kinds of hard stone with Quartz with advantages of smooth cutting, less chips, long life and stable performance.
Feature
Unique slant design of segment side face improves the sharpness and cutting efficiency. Besides, the slant slot allows ideal debris removal and better cooling that will minimize cutting friction and noise, reduce frictional heat gain
Good cutting result, this special design will not allow easy edge collapse, break, tapered slab etc.
Advantage
1. Special design of segment
2. For Granite Cutting
3. Fast Cutting Speed
4. Factory Price
5. SGS, ISO9001: 2000, BV Certification
Diamond saw blade, Cutting Disc for Marble
About Sunny Diamond Blade
· Sunny diamond tools use High-grade diamond, Metal powder, Make different formulary for different stone.
· We design the segment bond according to your different stone hardness, abrasiveness, machine parameter to bring premium cutting and maximum output
Description
Suitable for cutting all kinds of marble rough blocks and slabs. Suitable for cutting various hard and brittle non-metallic materials, such as semi precious-marble, semiprecious-granite enamel ceramic, concrete, asphalt and refractory. It can cut steadily and accurately with smooth and no damaged edge.
Safety Precaution
1. Be sure electrical cord is unplugged during blade installation or removal.
2. The blade should be mounted with the arrow pointing in the direction of rotation.
3. Never work without a safety guard.
4. Never work without safety glasses
5. Never hold the material being cut in your hand, or secure it using with in your hand, or secure it with your leg or foot during sawing.
6. Make sure that you are using the proper blade specification for the material being cut.
7. Make sure the bore of the saw blade is correctly matched to the diameter of the blade mount.
Italy, Russia, Ukraine, India, Egypt, South Africa etc.
| Diameter(mm) | Core thick | Segment Size | Seg No(pc) |
| (mm) | LxWxH (mm) |
| φ300/350 | 2.2/2.4 | 40*3.0/3.2*12/15 | 21/24 |
| φ400 | 2.6/2.8 | 40*3.4/3.6*12/15 | 28 |
| φ500 | 2.8/3.0 | 40*4.0/4.2*12/15 | 36 |
| φ600 | 3.6 | 40*4.6*12/15 | 42 |
| φ700 | 4 | 40*5.2*15 | 42 |
| φ800 | 4.5 | 40*6.0*15 | 46/57 |
| Other Specifications Are Available Upon Request |
| |
| Diamond Segmented Circular Saw Blades for Block Cutting of Granite, Sandstone, Slate,marble,limestone,ect., Suitable for Bridge Cutting Machine and Single Arm Machine. |
|
| Diameter(mm) | Core thick | Segment Size | Seg No(pc) |
| (mm) | LxWxH (mm) |
| φ900 | 5 | 24*6.6/6.0*15 | 64 |
| φ1000 | 5.5 | 24*7.0/6.4*15 | 70 |
| φ1200 | 6 | 24*8.0/7.4*15 | 80 |
| φ1300 | 6 | 24*8.4/7.8*15 | 88 |
| φ1600 | 7.2 | 24*9.0/8.4*15 | 108 |
| φ1800 | 8 | 24*9.8/9.2*15 | 120 |
| φ2000 | 8 | 24*10.5/9.5*15 | 128 |
| φ2200 | 9 | 24*11.5/10.5*15 | 132 |
| φ2500 | 9 | 24*11.5/10.5*15 | 140 |
| φ3000 | 10 | 24*13.5/12.5*20 | 160 |
| φ3500 | 11 | 24*14.5/13.5*20 | 180 |
Sunny is an ISO, BV and SGS certified company, have 21 years manufacturing experience in diamond tools.
Our Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration rollers, Fickerts, Frankfurt, Cup wheel, Profiling wheel, Polishing pad, Brush etc)
Drilling Tools (Finger bit, Core drill etc)
Welcome to visit our company website: http://www.sunnytools.biz
Looking forward to hearing from you.
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
