| Prod Model: |
SYZH-DS-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
for Granite |
| Advantage: |
Quality and Price |
| Segment Shape: |
W Shape |
| Diameter(mm): |
300 - 800 |
| Segment Height(mm): |
12/15 |
| Inch: |
12" -32" |
| Core Thickness(mm): |
2.0/2.2 - 4.5 |
| Segment Number(PCS): |
21 -46/57 |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Delivery Detail: |
7 - 15 Days |
Product Description
Sunny Superhard Tools use High-Grade diamond, Metal powder, Make different formula for different stone. The Diamond Segments with various dimensions and shapes, for cutting granite, marble, sandstone, concrete, ceramic, asphalt, etc. Include diamond segments for single blade, multi-blade, core drill, etc.
Sunny design the segment bond according to your stone feature.
Specification
Used for Granite cutting.
Design the segment bond according to your different stone hardness, abrasiveness, machine parameter to bring premium cutting and maximum output.
Features

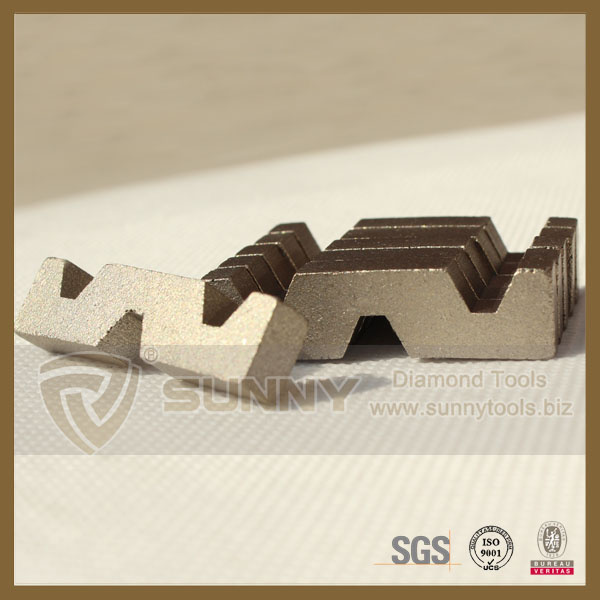

Special "W" shape of the segment are designed according to its scientific structure in:
1. Quick diamond open and keep sharp in high efficiency cutting.
2. Bring better colling and debris removal.
3. Bring smooth cutting without chipping of the edge of stone.
Advantage
1. Original manufacturer
2. High efficiency& no chipping
3. Competitive price
4. ISO9001 & OEM acceptable
Quality control
(1). We test the hardness of the saw blade to check its quality
(2). We check the flatness degree to see if it if up to standard.
(3)We also do some cutting test to check the effect of using.
Company Introduction
We are the professional manufacturer for diamond tools. The main products are various diamond cutting blades, diamond grinding cup wheels, diamond core bits, diamond rollers and other diamond tools with special shape
We specialize in manufacturing diamond shaped tools that can be produced according to customer requirements. We can develop kinds of diamond tool parts to match machines for customers. The diamond tools specially used for stone, concrete, asphalt, porcelain, tiles, glass and other construction materials.
Our products are exported to more than 60coutries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
[2013080906]
[2013081306]
| Diameter | Inch | Core Thickness | Segment Size | Segment Number |
| φ300 | 12" | 2.0/2.2 | 40x3.0/3.2x10(12)(15) | 21 |
| φ350 | 14" | 2.2/2.4 | 40x3.0/3.2x10(12)(15) | 24 |
| φ400 | 16" | 2.6/2.8 | 40x3.4/3.6x10(12)(15) | 28 |
| φ450 | 18" | 2.8/3.0 | 40x4.0/4.2x10(12)(15)(20) | 32 |
| φ500 | 20" | 2.8/3.0 | 40x4.0/4.2x10(12)(15) | 36 |
| φ600 | 24" | 3.6 | 40x4.6x10(12)(15) | 42 |
| φ700 | 28" | 4.0 | 40x5.2x10(12)(15) | 42 |
| φ800 | 32" | 4.5 | 40x6.0x10(12)(15) | 46/57 |
| Other Specifications Are Available Upon Request |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
