| Prod Model: |
SY-DSW-011(Arix Blade) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
300 - 800 |
| Inch: |
12" - 32" |
| Core Thickness(mm): |
2.2/2.4 - 4.5 |
| Segment Size(mm): |
40X3.0/3.2X10(12) - 40X6.0X10(12) |
| Segment Number(PCS): |
21 - 46/57 |
| Certification: |
SGS, ISO9001:2000, BV |
| Weight(Kg/PC): |
3.65 |
| Slot Type: |
Norrow Slot |
| Core Type: |
Silent or Normal |
| Saw Blade External Diameter: |
250-3500mm |
Product Description

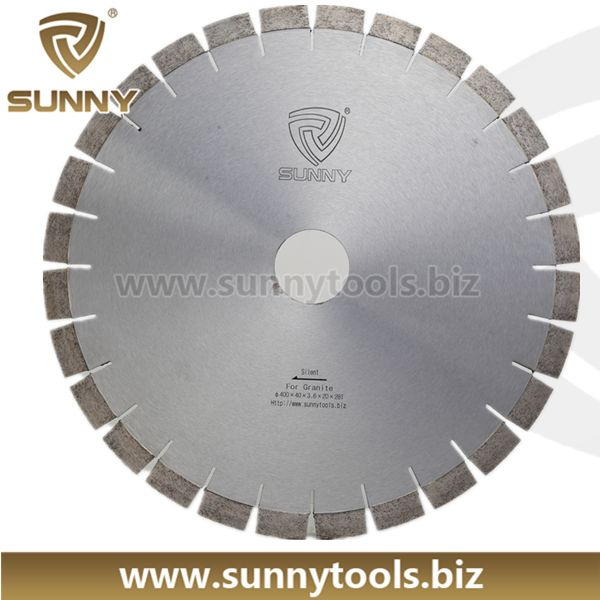

Granite Arix Diamond Saw Blade
Product information
1. Application for granite
2. The segment has completely even distribution of diamond particles within the bond.
3. With feature of cutting efficiency higher 50% and cutting life will be 30%~ 100% more than normal
4. Sharpness is better, professional cutting
Feature
1. Available 12in - 32in Diameter;
2.40%-45% Diamond Concentration Evenly Distributed Gives Maximum Life;
3.1, 200 5, 000 RPM Saws Hand Held up to 72 Horse Power Walk Behinds;
4. Arix Diamond Placement is where Diamond Particles are Evenly Distributed at Certain Distances between each other;
5. Answering the Demand of Customers Asking for Longer Life and Faster Cutting, Overcoming the Sacrifice of one for the other;
6. Maximizes the Efficiency of Diamond Blades as they cut;
7. Strategically Placed Diamonds are in rows,
8. Eliminates Premature Diamond Loss & Destruction;
9. Increases Speed & Life up to 30%;
10. Life Time Operator Error Warranty Available.
Safety Precaution
1. Be sure electrical cord is unplugged during blade installation or removal.
2. The blade should be mounted with the arrow pointing in the direction of rotation.
3. Never work without a safety guard.
4. Never work without safety glasses
5. Never hold the material being cut in your hand, or secure it using with in your hand, or secure it with your leg or foot during sawing.
6. Make sure that you are using the proper blade specification for the material being cut.
7. Make sure the bore of the saw blade is correctly matched to the diameter of the blade mount.
[2013080806]
[2013081306]
| SPECIFICATION | Inch | Core Thickness | Segment Size | Segment Number |
| φ300 | 12" | 2.2/2.4 | 40x3.0/3.2x10(12) | 21 |
| φ350 | 14" | 2.2/2.4 | 40x3.0/3.2x10(12) | 24 |
| φ400 | 16" | 2.6/2.8 | 40x3.4/3.6/3.8x10(12) | 28 |
| φ450 | 18" | 2.8/3.0 | 40x4.0/4.2x10(12) | 32 |
| φ500 | 20" | 2.8/3.0 | 40x4.0/4.2x10(12) | 36 |
| φ600 | 24" | 3.6 | 40x4.6/4.8x10(12) | 42 |
| φ700 | 28" | 4.0 | 40x5.2/5.5x10(12) | 42 |
| φ800 | 32" | 4.5 | 40x6.0x10(12) | 46/57 |
