Sunny U-Shape Stone Granite Block Cutting Diamond Segment
| Price: |
US $ 0.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SY98 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Sunny Tools |
| Cutting For: |
Granite; Marble; Sandstone; Limestone. |
| Steel Core Thickness(mm): |
2.2mm-10.0mm |
| Material: |
Diamond |
| Service: |
OEM;ODM |
| Main Market: |
America, England, Mexico, Brazil, India. |
| Export Area: |
Global |
| Welding Method: |
High-Frequency |
| Cross-Sectional Shape: |
Sandwich |
| Shape: |
U Shape |
Product Description

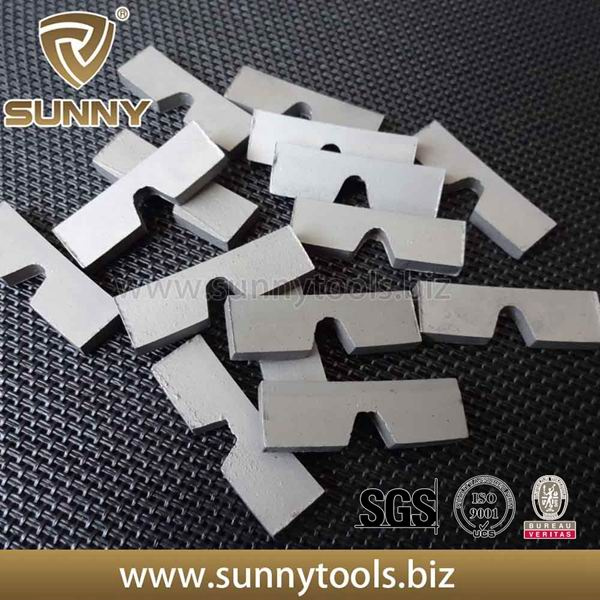

Stone Granite Block Cutting Diamond Segment——Design the segment bond according to your different stone hardness, abrasiveness, machine, parameter to bring premium cutting and maximum output.
| BASIC INFO |
| Brand | SUNNY |
| Product Name | Stone Granite Block Cutting Diamond Segment |
| Item No. | SY-DS-312 |
Diameter
| 300mm-3500mm |
| Material | Diamond |
| Origin | Quanzhou, Fujian, China |
| Features | - Long life & smooth cutting
- Fast & stable cutting
- High efficiency & low energy consumption
|
| Application | Used for marble, limestone cutting |
| Diameter(mm) | Inch | Core Thickness | Segment Size | Teeth | Cutting Material |
| φ250 | 10″ | 2.0/2.2 | 40×3.0×10/12/15 | 17 | Granite Marble Concrete Sandstone Volcanic etc |
| φ300 | 12″ | 2.2/2.4 | 40×3.2×10/12/15 | 21 |
| φ350 | 14″ | 2.2/2.4 | 40×3.2×10/12/15/20 | 24 |
| φ400 | 16″ | 2.6/2.8 | 40×3.6×10/12/15/20 | 28 |
| φ450 | 18″ | 2.8/3.0 | 40×4.2×10/12/15/20 | 32 |
| φ500 | 20″ | 2.8/3.0 | 40×4.2×10/12/15/20 | 36 |
| φ550 | 22″ | 3.0/3.2 | 40×4.6×10/12/15/20 | 38 |
| φ600 | 24″ | 3.6 | 40×4.6×10/12/15/20 | 42 |
| φ700 | 28″ | 4.0 | 40×5.2×10/12/15/20 | 50 |
| φ800 | 32″ | 4.5 | 40×6.0×10/12/15/20 | 46/57 |
| φ900 | 36″ | 5.0 | 24×6.6/6.0×10/12/15/20 | 64 |
| φ1000 | 40″ | 5.5 | 24×7.0/6.4×10/12/15/20 | 70 |
| φ1200 | 48″ | 6.0 | 24×8.0/7.4×10/12/15/20 | 80 |
| φ1300 | 50″ | 6.5 | 24×8.4/7.8×10/12/15/20 | 88 |
| φ1600 | 64″ | 7.2 | 24×9.0/8.4×10/12/15/20 | 108 |
| φ1800 | 72″ | 8.0 | 24×9.8/9.2×10/12/15/20 | 120 |
| φ2000 | 80″ | 8.0 | 24×10.5/9.5×10/12/15/20 | 128/132 |
| φ2200 | 88″ | 9.0 | 24×10.5/9.5×12/15/20 | 132/136 |
| φ2500 | 100″ | 9.0 | 24×10.5/9.5×12/15/20 | 140 |
| φ3000 | 118″ | 10.0 | 24×10.5/9.5×12/15/20 | 160 |
| φ3500 | 138″ | 10.0 | 24×10.5/9.5×12/15/20 | 180 |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
