| Prod Model: |
4A6-2-10 |
| Delivery Time: |
Within 3 Days |
| Payment: |
Western Union /Paypal |
| Tool Material: |
Diamond |
| Size: |
Can Be Customize According to The Drawing |
| Type: |
Stone Taper Carving Bit |
| Use: |
for Stone,Marble Carving |
Product Description

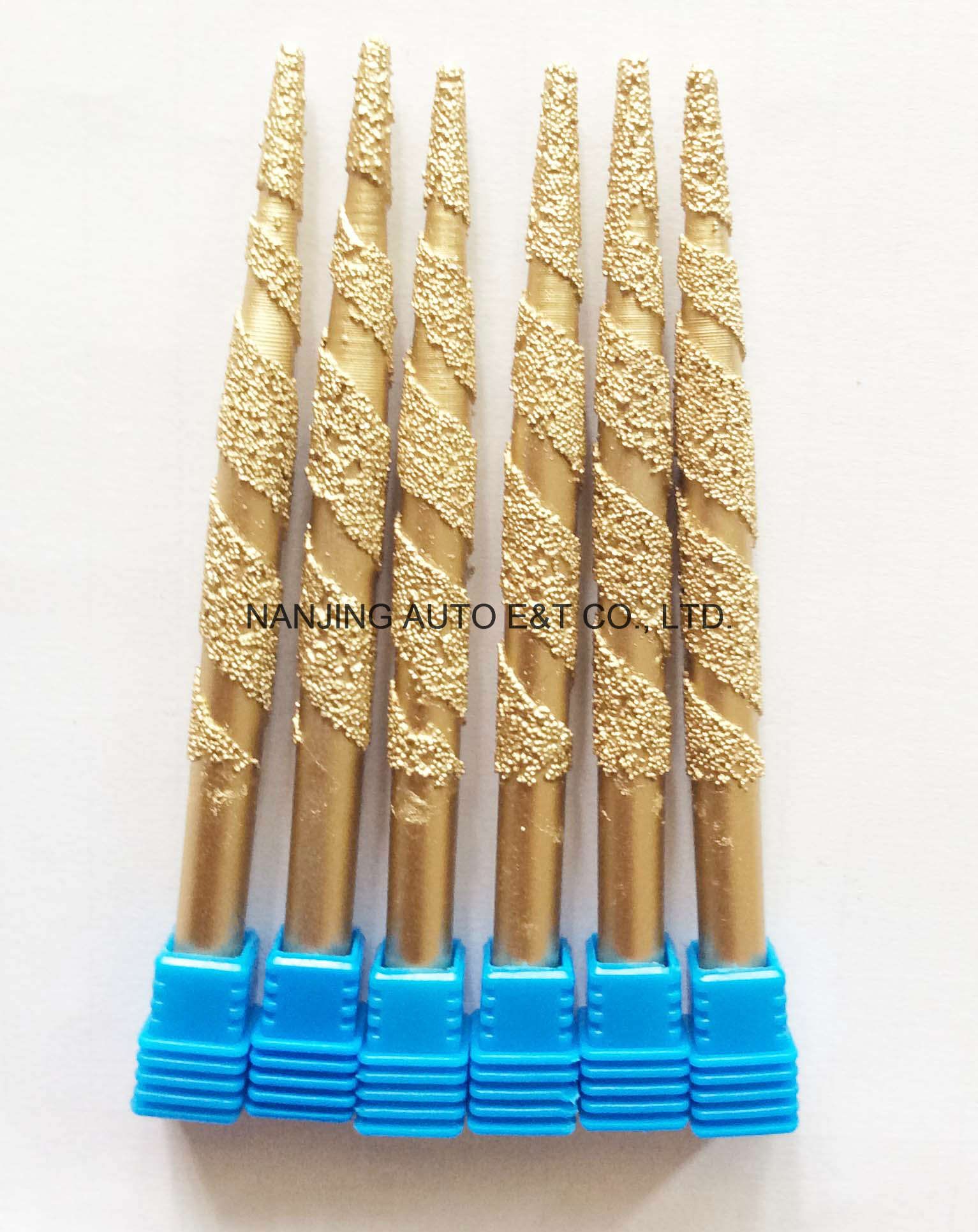

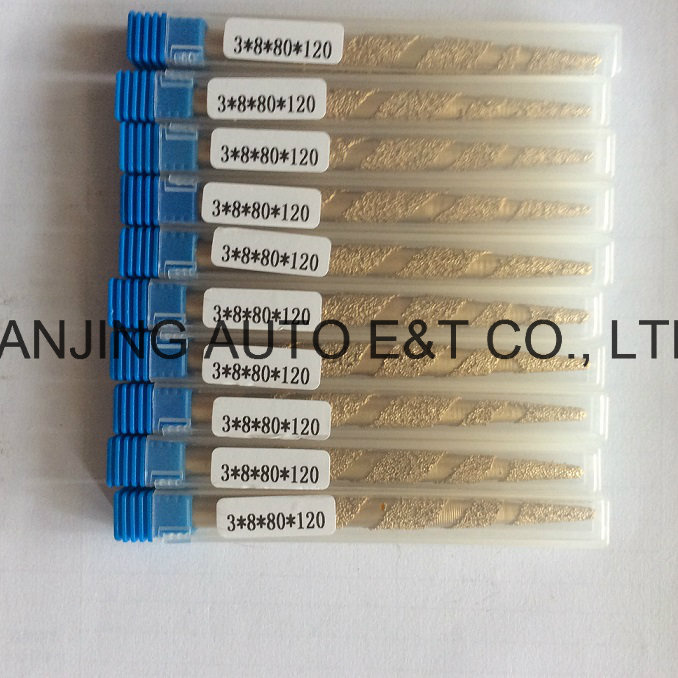

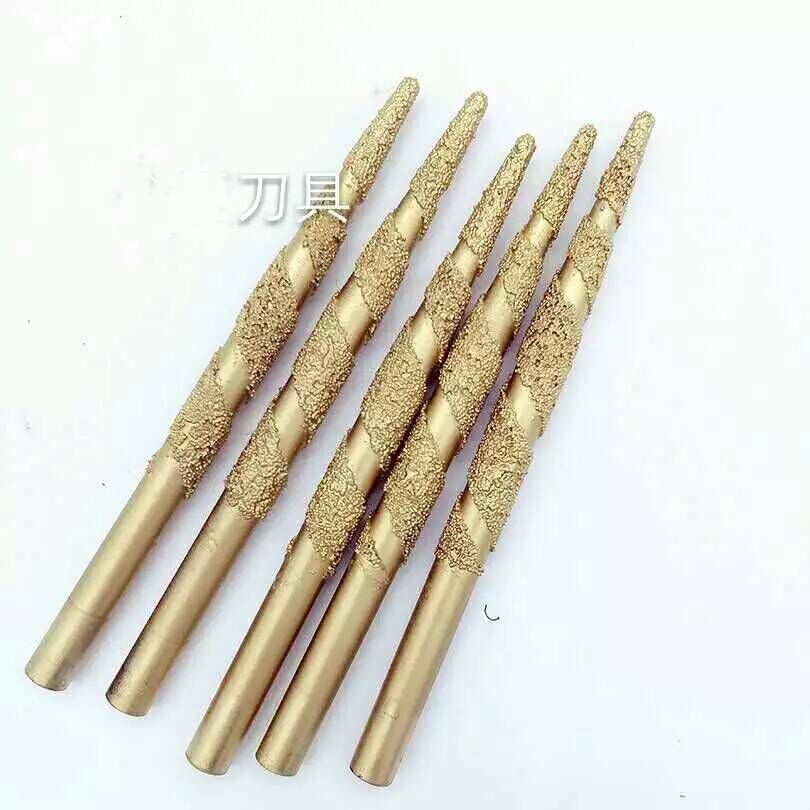

super hard diamond cnc cutter bits for granite
1.Description:
(1) Type: diamond tools;
(2) Shank Diameter:6mm/ 8mm/10mm;
(4) Cutting edge diameter: 3mm-6mm;
(5) Cutting edge length: 20mm/30mm
2. Suitable for:
End milling, carving, line engraving, polishing, slotting, hollow-cutting, 3d embossment, cutting, flat processing etc;
Hard granite, stone, marble, glass, ceramic tiles, brick, jade peeling, etc;
3. Features:
(1) Using high-tech "Metallurgical melt diamond technology" manufacturing
(2) sharpness, high efficiency engraving, head deformation and high precision
4. Specification:
(1) Stone Tools Type: Metallurgical melt diamond tools
(2) Diameter: 8mm/10mm
(3) OVL: Overall Length;CEL: Cutting Edge Length;CED: Cutting Edge Diameter;
| NO. | MODEL | SHK(mm) | CED(mm) | CEL(mm) |
| 1 | 4A6-2-10 | 6 | 2 | 10 |
| 2 | 4A6-3-10 | 6 | 3 | 10 |
| 3 | 4A6-4-10 | 6 | 4 | 10 |
| 4 | 4A6-2-15-10 | 6 | 2 | 15 |
| 5 | 4A6-2-20-10 | 6 | 2 | 20 |
| 6 | 4A6-2-25-10 | 6 | 2 | 25 |
| 7 | 4A6-2-30-10 | 6 | 2 | 30 |
| 8 | 4A8-2-10-10 | 8 | 2 | 10 |
| 9 | 4A8-2-15-10 | 8 | 2 | 15 |
| 10 | 4A8-2-20-10 | 8 | 2 | 20 |
| 11 | 4A8-2-25-10 | 8 | 2 | 25 |
| 12 | 4A8-2-30-10 | 8 | 2 | 30 |
| 13 | 4A8-3-10-10 | 8 | 3 | 10 |
| 14 | 4A8-3-15-10 | 8 | 3 | 15 |
| 15 | 4A8-3-20-10 | 8 | 3 | 20 |
| 16 | 4A8-3-25-10 | 8 | 3 | 25 |
| 17 | 4A8-3-30-10 | 8 | 3 | 30 |
| 18 | 4A8-4-10-10 | 8 | 4 | 10 |
| 19 | 4A8-4-15-10 | 8 | 4 | 15 |
| 20 | 4A8-4-20-10 | 8 | 4 | 20 |
| 21 | 4A8-4-25-10 | 8 | 4 | 25 |
| 22 | 4A8-4-30-10 | 8 | 4 | 30 |
| 23 | 4A8-5-10-10 | 8 | 5 | 10 |
| 24 | 4A8-5-15-10 | 8 | 5 | 15 |
| 25 | 4A8-5-20-10 | 8 | 5 | 20 |
| 26 | 4A8-5-25-10 | 8 | 5 | 25 |
| 27 | 4A8-5-30-10 | 8 | 5 | 30 |
| 28 | 4A8-6-10-10 | 8 | 6 | 10 |
| 29 | 4A8-6-15-10 | 8 | 6 | 15 |
| 30 | 4A8-6-20-10 | 8 | 6 | 20 |
| 31 | 4A8-6-25-10 | 8 | 6 | 25 |
| 32 | 4A8-6-30-10 | 8 | 6 | 30 |
| 33 | 4A10-2-10-10 | 10 | 2 | 10 |
| 34 | 4A10-2-15-10 | 10 | 2 | 15 |
| 35 | 4A10-2-20-10 | 10 | 2 | 20 |
| 36 | 4A10-2-25-10 | 10 | 2 | 25 |
| 37 | 4A10-2-30-10 | 10 | 2 | 30 |
| 38 | 4A10-3-10-10 | 10 | 3 | 10 |
| 39 | 4A10-3-15-10 | 10 | 3 | 15 |
| 40 | 4A10-3-20-10 | 10 | 3 | 20 |
| 41 | 4A10-3-25-10 | 10 | 3 | 25 |
| 42 | 4A10-3-30-10 | 10 | 3 | 30 |
| 43 | 4A10-4-10-10 | 10 | 4 | 10 |
| 44 | 4A10-4-15-10 | 10 | 4 | 15 |
| 45 | 4A10-4-20-10 | 10 | 4 | 20 |
| 46 | 4A10-4-25-10 | 10 | 4 | 25 |
| 47 | 4A10-4-30-10 | 10 | 4 | 30 |
| 48 | 4A10-5-10-10 | 10 | 5 | 10 |
| 49 | 4A10-5-15-10 | 10 | 5 | 15 |
| 50 | 4A10-5-20-10 | 10 | 5 | 20 |
| 51 | 4A10-5-25-10 | 10 | 5 | 25 |
| 52 | 4A10-5-30-10 | 10 | 5 | 30 |
| 53 | 4A10-6-10-10 | 10 | 6 | 10 |
| 54 | 4A10-6-15-10 | 10 | 6 | 15 |
| 55 | 4A10-6-20-10 | 10 | 6 | 20 |
| 56 | 4A10-6-25-10 | 10 | 6 | 25 |
| 57 | 4A10-6-30-10 | 10 | 6 | 30 |
| 58 | 4A10-8-10-10 | 10 | 8 | 10 |
| 59 | 4A10-8-15-10 | 10 | 8 | 15 |
| 60 | 4A10-8-20-10 | 10 | 8 | 20 |
| 61 | 4A10-8-25-10 | 10 | 8 | 25 |
| 62 | 4A10-8-30-10 | 10 | 8 | 30 |
| 63 | 4A12-2-10-10 | 12 | 2 | 10 |
| 64 | 4A12-2-15-10 | 12 | 2 | 15 |
| 65 | 4A12-2-20-10 | 12 | 2 | 20 |
| 66 | 4A12-2-25-10 | 12 | 2 | 25 |
| 67 | 4A12-2-30-10 | 12 | 2 | 30 |
| 68 | 4A12-3-10-10 | 12 | 3 | 10 |
| 69 | 4A12-3-15-10 | 12 | 3 | 15 |
| 70 | 4A12-3-20-10 | 12 | 3 | 20 |
| 71 | 4A12-3-25-10 | 12 | 3 | 25 |
| 72 | 4A12-3-30-10 | 12 | 3 | 30 |
| 73 | 4A12-4-10-10 | 12 | 4 | 10 |
| 74 | 4A12-4-15-10 | 12 | 4 | 15 |
| 75 | 4A12-4-20-10 | 12 | 4 | 20 |
| 76 | 4A12-4-25-10 | 12 | 4 | 25 |
| 77 | 4A12-4-30-10 | 12 | 4 | 30 |
| 78 | 4A12-5-10-10 | 12 | 5 | 10 |
| 79 | 4A12-5-15-10 | 12 | 5 | 15 |
| 80 | 4A12-5-20-10 | 12 | 5 | 20 |
| 81 | 4A12-5-25-10 | 12 | 5 | 25 |
| 82 | 4A12-5-30-10 | 12 | 5 | 30 |
| 83 | 4A12-6-10-10 | 12 | 6 | 10 |
| 84 | 4A12-6-15-10 | 12 | 6 | 15 |
| 85 | 4A12-6-20-10 | 12 | 6 | 20 |
| 86 | 4A12-6-25-10 | 12 | 6 | 25 |
| 87 | 4A12-6-30-10 | 12 | 6 | 30 |
| 88 | 4A12-8-10-10 | 12 | 8 | 10 |
| 89 | 4A12-8-15-10 | 12 | 8 | 15 |
| 90 | 4A12-8-20-10 | 12 | 8 | 20 |
| 91 | 4A12-8-25-10 | 12 | 8 | 25 |
| 92 | 4A12-8-30-10 | 12 | 8 | 30 |
| 93 | 4A12-10-10-10 | 12 | 10 | 10 |
| 94 | 4A12-10-15-10 | 12 | 10 | 15 |
| 95 | 4A12-10-20-10 | 12 | 10 | 20 |
| 96 | 4A12-10-25-10 | 12 | 10 | 25 |
| 97 | 4A12-10-30-10 | 12 | 10 | 30
|
Welcome to contact us !
NANJING AUTO E&T Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. Our CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.
Our company produce CNC routers which are sold in various markets of Europe and America. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
