| Prod Model: |
HXSAW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Comtinuous, Segmented, Turbo |
| Usage: |
Stone Cutting, Ceramic Tiles |
| Manufacturing Arts: |
Sinter |
| Kind: |
Handheld Saw |
| Saw Blade External Diameter: |
105mm-180mm |
Product Description

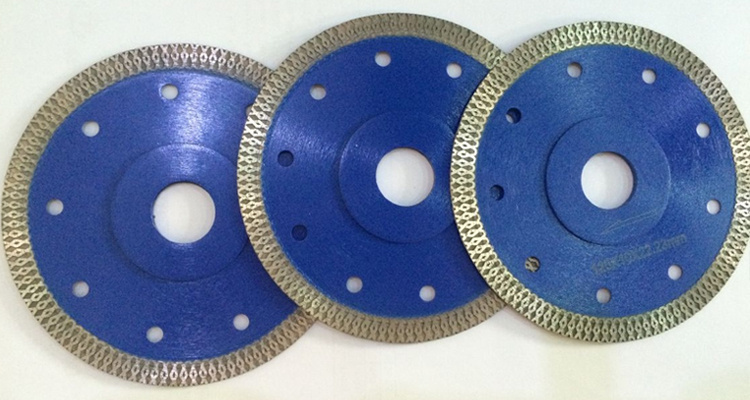

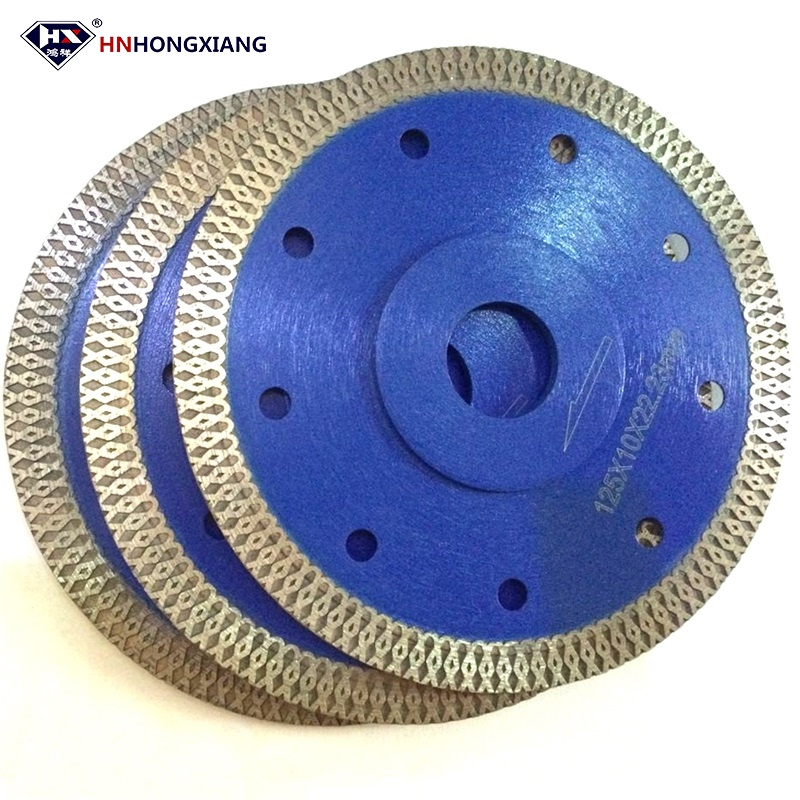

Diamond segmented saw blade for ceramic and stone, 105-400mm
1. Usage
Used for Masonry, Special for cutting Stone, marble,granite,Ceramic tile, Wall bricks etc
2. Features
1). Sharp cutting edge
2). Reliable and good stability
3). Well accepted for economical price and good quality
4). Original manufacturer
5). Work without water, but best cutting result with water
3. Available diameter
105mm--110mm--114/115mm--120mm--125mm
----------------------------------------------------------
150mm--180mm--200mm--230mm
----------------------------------------------
250mm---280mm--300mm--350mm--400mm
--------------------------------------------------------
Hole size and thickness are common size, and also can be customized. 4.Note
Universal wet cutting blades. Hand-held cutting machine,Desktop cutting machine,Professional cutting machine
Max:75m/s
Water:≤125mm 1L;≥350mm,3-5L/min;
5.Service
1. Sample service.
2. OEM service.
3. Custom-made service 6.Brief introduction of office and factory
1. China manufacturer founded in 1990.
2. Experienced engineers and skilled workers.
3. Exported to more than 52 countries.
4. ISO9001: 2008 Certification.
| Segmented Saw Blade |
| Outer Diameter | Arbor | Segment |
| Inches | Mm | Size | Number |
| 4'' | 105 | 16/20/22.23 | 35×1.8×7/10 | 8/9/16 |
| 4.3'' | 110 | 16/20/22.23 | 32×1.9×7/10 | 8/9/12/16 |
| 4.5'' | 115 | 20/22.23 | 38×2.0×7/10 | 8 |
| 5'' | 125 | 20/22.23 | 37×2.0×7/10 | 9 |
| 6'' | 150 | 20/22.23 | 34×2.0×7/10 | 12 |
| 7'' | 180 | 22.23/25.4 | 35×2.2×7/10 | 14 |
| 8'' | 200 | 22.23/25.4 | 39×2.4×7/10 | 14 |
| 9'' | 230 | 22.23/25.4 | 34×2.4×7.2/10 | 16/18 |
| 10'' | 250 | 22.23/25.4 | 37×3.0×7.5/10 | 18 |
| 12'' | 300 | 20/22.23/25.4/50 | 35×3.2×7.5/10 | 22 |
| 14'' | 350 | 22.23/25.4/50 | 40×3.2×7.5/10 | 24 |
| 16'' | 400 | 22.23/25.4/50 | 40×3.6×7.5/10 | 28 |
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
