Supler Stainless Steel Soft Seated PTFE Peek Seat Insert Top Entry Side Entry Double Block and Bleed Floating Flange Ball Valve
| Price: |
US $ 0.95-1/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Q41 |
| Body: |
Split Body or Integral Body |
| Ball: |
Trunnion Mounted Ball, Double Block & Bleed |
| Stem: |
Blowout-Proof |
| Seat: |
Self Relieving Seatss(Single Piston Effect Seat or |
| O Ring: |
Aed O Ring |
| Fire Safe Design: |
External Leakage Prevention, Internal Leakage Prev |
| Ball Seat Alignment: |
Mechanical Stops Are Equipped on All Valves to Ens |
| Sealing: |
Double Block and Bleed |
| Cryogenic Services: |
Extended Bonnet for Cryogenic Services |
| Special: |
Nace Mr-0175 |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
150-2500lbs |
Product Description

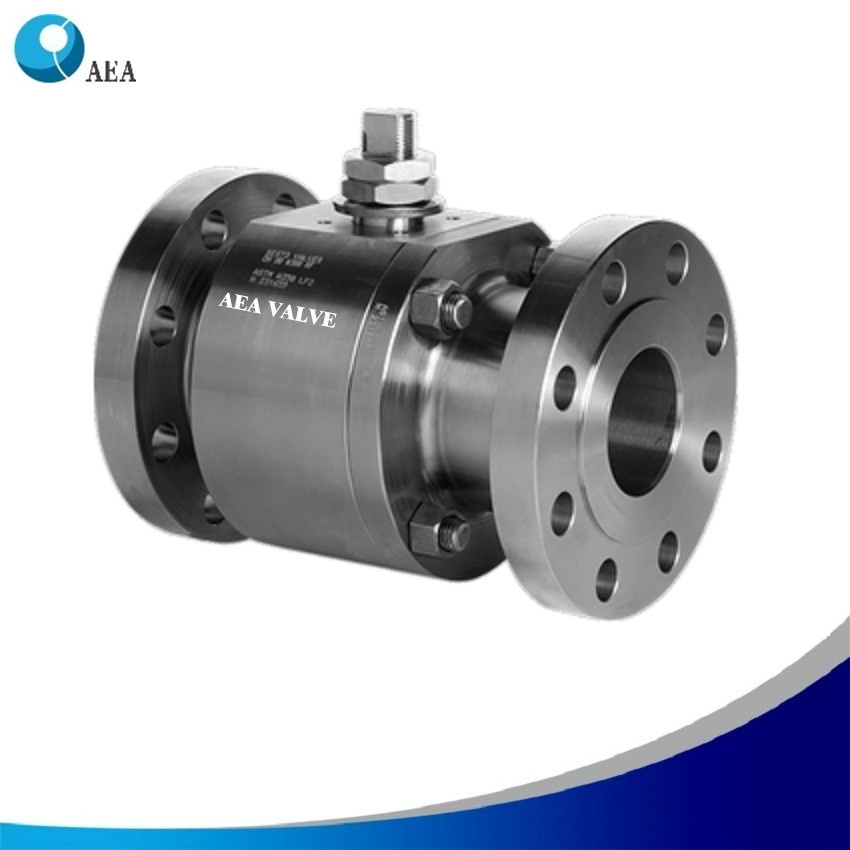

AEA Forged Steel Floating Ball Valves are designed in accordance with ISO17292 featuring 2 pc split body or 3 pc split body, ideal for medium or high pressure services and wide temperature range (-196ºC~ 500ºC) . It can substitute the small size trunnion mounted ball valves to save cost.
Product Range
-Valve size:
1/2" ~ 10" (DN15-DN250)
-Pressure:
ANSI Class 150~2500(PN16-PN420)
-Temperature:
-196ºC~ 500ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
End Connection :RF, RTJ,BW, SW, NPT
Technical Specifications
-Design: ASME 16.34/BS 5351/API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/API 6D/ BS 6755
-Special: NACE MR-01-75
Design Features
-Full port or reduce port
- Fire Safe Design
-Blowout-proof stem
- Anti-Static Device
-Low emission control
-Optional locking device

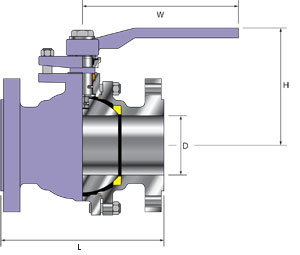

-ISO 5211 top flangeSize and Dimensions:| Class | Dimensions(mm) |
| NPS(inch) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 |
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| 150LB | L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 356 | 394 | 457 | 533 |
| H | 59 | 63 | 75 | 86 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 |
| W | 130 | 130 | 160 | 220 | 220 | 260 | 320 | 320 | 400 | 700 | 1100 | 1100 | * |
| 300LB | L | 140 | 152 | 165 | 178 | 190 | 216 | 241 | 283 | 305 | 381 | 403 | 502 | 568 |
| H | 59 | 63 | 75 | 86 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 |
| W | 130 | 130 | 160 | 220 | 220 | 260 | 320 | 320 | 400 | 850 | 1100 | * | * |
| 600LB | L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | - |
| H | 59 | 63 | 75 | 95 | 107 | 162 | 205 | 226 | 240 | 305 | 353 | 374 | - |
| W | 130 | 130 | 160 | 220 | 230 | 230 | 400 | 400 | 500 | 850 | * | * | - |
| * Gear |
| Why Choose us? |
| 1. Factory: |
| AEA VALVE, a specialist manufacturer, established since 2008 and professional production of industrial valves over 10 years. |
| 2. Regional Sale: |
| We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc. |
| 3. Low MOQ: |
| Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well. |
| 4. OEM or Customize: |
| OEM Service or Customized size is Available. |
| 5. We can make the products with the client's demand standard or the custom requirement. |
| 6. Complete Solution: |
| We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you. |
| 7. High Quality: |
| We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by. |
| 8. Quick Delivery: |
| We have the large stock for some hot products. |
| 9. Competitive Price: |
| 10. We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer. |
| 11. Quality control: |
| All the products are calibrated with real working condition, and tested before shipping as qualified product. |
| 12. Problem solve: |
| If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you. |
| 13. Integrity: All the warranty and guarantee from us will be put into come true |
| 14.Online Service: any inquiry, please contact with email: . We will reply you within 12 hours. |

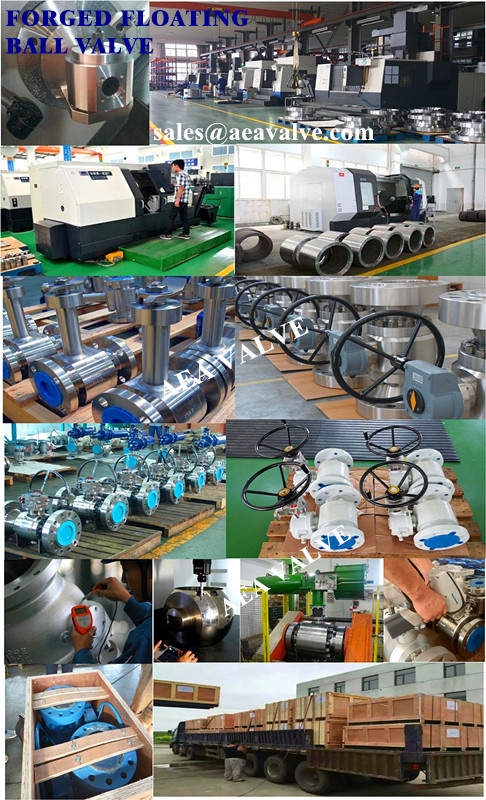

AEA Valves is an internationally renowned brand of industrial valves certified to ISO 9001, CE, API and Ad-Merkblatt with manufacturing locations in China. With a total built up area in-excess of 20, 000 sq. Mtrs presently, AEA specializes in manufacturing Gate, Globe, Check, Ball, Butterfly & Plug valves and is used world-wide by Oil & Gas, Power, Chemical, Petrochemical & other Industries. Modern production methods as well as continuous process improvement result in highly efficient production in accordance with the highest international Standard. AEA has invested in the development of new products, quality assurance and protection against harmful emissions in order to assist customers in safely controlling their fluids. This is supported by numerous references from satisfied customers. AEA strives to be
A " one-stop" world-wide supplier for all valve requirements, be it for applications requiring Gate, Globe, Check, Ball, Butterfly or Plug valves. With a track record of supply spanning over twenty years, AEA has developed an enviable reputation for quality & reliability of product at competitive prices.
