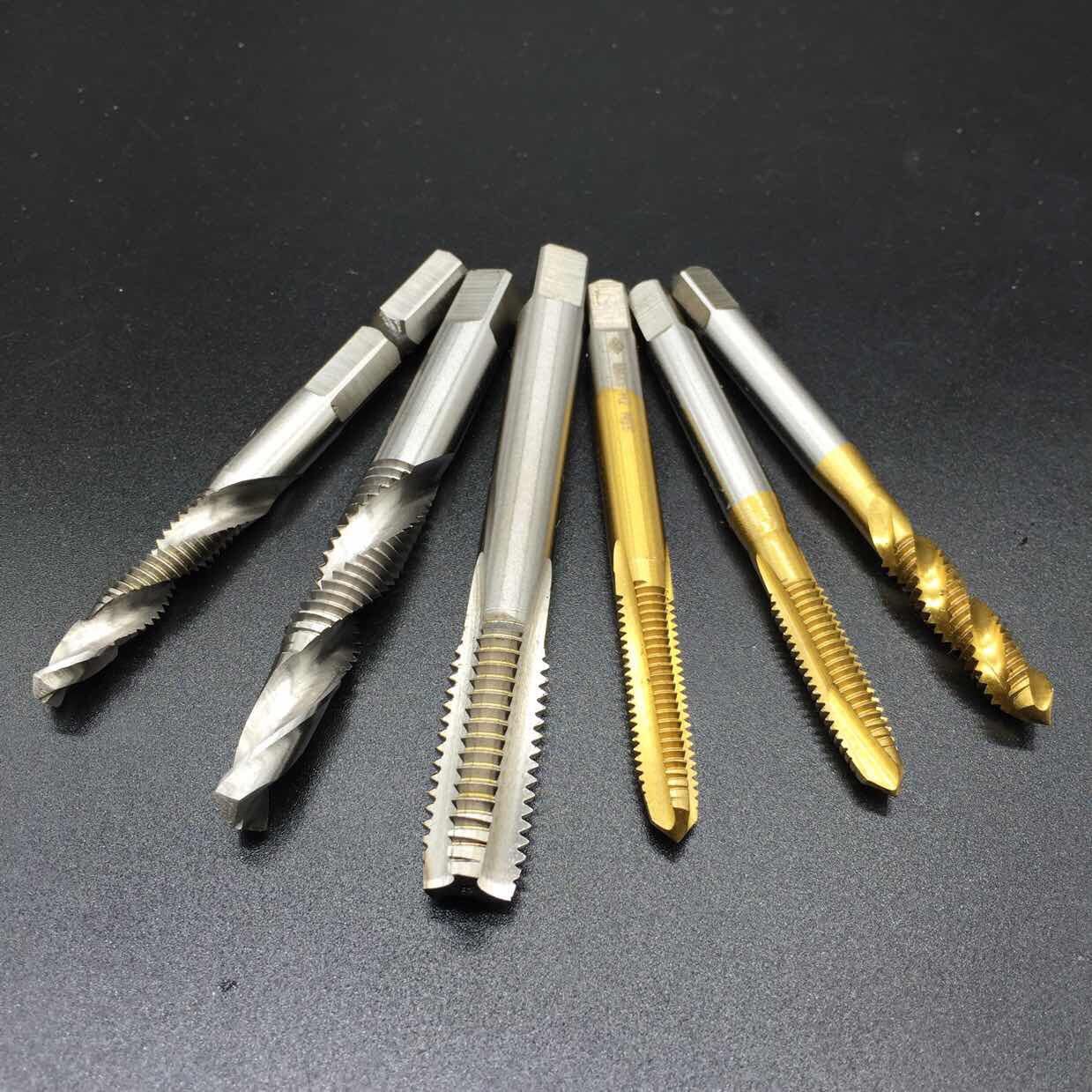

Surgical Screw Taps, HSS Machine
| Price: |
US $ 0.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
ZB811 |
| Type Of Tap: |
Spiral Fluting Tap |
| Type Of Die: |
Round Die |
| Material: |
High-speed Steel |
| Standard: |
American |
| Application: |
Manual |
| Brand: |
Zb |
Product Description
Product Description
Specifications
1. High speed steel Material.
2. Strict heat treatment
3. Precisely Processing.
DIN374 Straight Flute HSS Thread Taps(Fine Teeth)
Specification:
1. Standard:
DIN374(Metric Size/UNF), Fine Teeth
Straight Flute
2. Material: HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),
HSS 6542(W6Mo5Cr4V2), M35 (W6Mo5Cr4V2Co5)
3. Hardness:
HSS4241: HRC59-61, HSS4341: HRC63-64, HSS 6542: 64-65, HSS M35: HRC 66-67
4. Surface
Finishing:
Bright finishing; Tin-coated; Or customization
5. Application:
For drilling internal threads.
Machining in the material of cast iron and common steel
(hole depth can reach to 1.5d)
6. Size: M3*0.35 To M36*1.5
1/4-28"UNF To 1-1/2"-12UNF
7. Thread standard type:
M: Metric thread
UNC: Unity coarse tooth thread
UNF: Unity fine tooth thread
| Size | Overall Length | Thread length | Model No. |
| M3 x 0.35 | 56 | 10 | 311-7200 |
| M3.5 x 0.35 | 56 | 10 | 311-7201 |
| M4 x 0.35 | 63 | 10 | 311-7202 |
| M4 x 0.5 | 63 | 10 | 311-7203 |
| M5 x 0.5 | 70 | 12 | 311-7204 |
| M6 x 0.5 | 80 | 14 | 311-7205 |
| M6 x 0.75 | 80 | 14 | 311-7206 |
| M7 x 0.75 | 80 | 14 | 311-7207 |
| M8 x 0.5 | 80 | 19 | 311-7208 |
| M8 x 1 | 80 | 19 | 311-7209 |
| M9 x 1 | 90 | 22 | 311-7210 |
| M10 x 0.5 | 90 | 22 | 311-7211 |
| M10 x 0.75 | 90 | 20 | 311-7212 |
| M10 x 1 | 90 | 20 | 311-7213 |
| M10 x 1.25 | 90 | 20 | 311-7214 |
| M11 x 1 | 100 | 24 | 311-7215 |
| M11 x 1.25 | 90 | 20 | 311-7216 |
| M12 x 0.75 | 90 | 20 | 311-7217 |
| M12 x 1 | 100 | 22 | 311-7218 |
| M12 x 1.25 | 100 | 22 | 311-7219 |
| M12 x 1.5 | 100 | 22 | 311-7220 |
| M13 x 1 | 100 | 22 | 311-7221 |
| M13 x 1.5 | 100 | 22 | 311-7222 |
| M14 x 0.75 | 100 | 22 | 311-7223 |
| M14 x 1 | 100 | 22 | 311-7224 |
| M14 x 1.25 | 100 | 22 | 311-7225 |
| M14 x 1.5 | 100 | 22 | 311-7226 |
| M16 x 1 | 100 | 22 | 311-7227 |
| M16 x 1.25 | 100 | 22 | 311-7228 |
| M16 x 1.5 | 100 | 22 | 311-7229 |
| M18 x 1 | 100 | 22 | 311-7230 |
| M18 x 1.25 | 110 | 25 | 311-7231 |
| M18 x 1.5 | 110 | 25 | 311-7232 |
| M18 x 2 | 125 | 34 | 311-7233 |
| M20 x 1 | 125 | 25 | 311-7234 |
| M20 x 1.5 | 125 | 25 | 311-7235 |
| M20 x 2 | 140 | 34 | 311-7236 |
| M22 x 1 | 125 | 25 | 311-7237 |
| M22 x 1.5 | 125 | 25 | 311-7238 |
| M22 x 2 | 140 | 34 | 311-7239 |
| M24 x 1 | 140 | 28 | 311-7240 |
| M24 x 1.5 | 140 | 28 | 311-7241 |
| M24 x 2 | 140 | 28 | 311-7242 |
| M26 x 1.5 | 140 | 28 | 311-7243 |
| M27 x 2 | 140 | 28 | 311-7244 |
| M28 x 1.5 | 140 | 28 | 311-7245 |
| M30 x 1.5 | 150 | 28 | 311-7246 |
| M30 x 2 | 150 | 28 | 311-7247 |
| M32 x 1.5 | 150 | 28 | 311-7248 |
| M35 x 1.5 | 170 | 30 | 311-7249 |
| M36 x 1.5 | 170 | 30 | 311-7250 |
| M38 x 1.5 | 170 | 30 | 311-7251 |
| M40 x 1.5 | 170 | 30 | 311-7252 |
| M42 x 1.5 | 170 | 30 | 311-7253 |
| M45 x 1.5 | 180 | 32 | 311-7254 |
| M48 x 1.5 | 190 | 32 | 311-7255 |
| M50 x 1.5 | 190 | 32 | 311-7256 |
| M52 x 1.5 | 190 | 32 | 311-7257 |
