| Prod Model: |
XGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Can Be Ordered |
| Fail Load: |
70-90kn |
| Connection: |
Male |
| Material: |
Aluminium |
| Usage: |
Heavy Duty Clamp |
| Structure: |
Suspension Clamp |
| Standard: |
Standard |

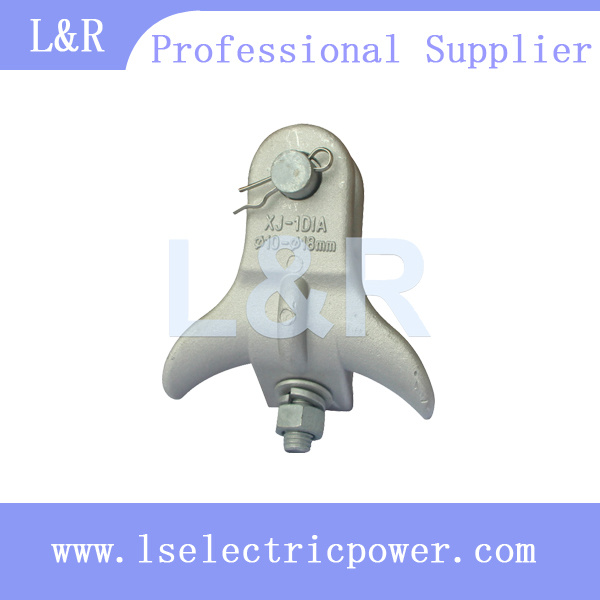

Product Description
Material:Metal
Usage:Heavy Duty Clamp
Packing:Export Standard Package
Standard:IEC STANDARD
Origin:Zhejiang, China
Brand:According to Clients' Requirements
The clamp body and keepers are aluminium alloy, cotter-pin is stainless steel, the other parts are hotdip galvanizek steel.
Payment: TT; L/C
Lead time: 10-15 days against deposit
Fail Load:70-90Kn
Surface Treatment: Galvanized Sheet
Connection:male
The clamp body and keepers are aluminium alloy, cotter-pin is stainless steel. The other Parts are hot-dip galvanizde steel.
Catalog
No. |
Applicable Conductor(mm) | Dimensions(mm) |
Rated failure
Load(kn) |
Weight
kg |
| H | C | M | R | L |
| XGF-5X | 23.7-27.6 | 135 | 20 | 16 | 16 | 300 | 60 | 3.5 |
| XGF-5X/GH | 23.7-27.6 | 150 | 18 | 16 | 17 | 300 | 70 | 4.8 |
| XGF-6X | 36.0-43.0 | 180 | 20 | 18 | 22 | 300 | 90 | 4.8 |
Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.
