| Prod Model: |
SX-80A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Sx-80A |
| Weight: |
2800kg |
| Steel Wire Guage: |
1.9-2.0mm (Option: 2.5mm) |
| Convolution: |
5-6 Turns |
| Size: |
8cbm |
| Voltage: |
380V/220V 50Hz/60Hz |
| Spring End Ring: |
60-65mm |
| Power(W): |
10kVA |
| Capacity: |
80 Springs/Minute (Adjustable) |
| Spring Height: |
150-160mm (Option:190-210) |
| Material: |
Steel |
| Usage: |
Mattress |
| Load Type: |
Bend |
| Shape: |
Coil |
| Function: |
Coiler |
| Extension Spring Classification: |
Mattress Spring |
| Compression Spring Shape: |
Lfk(Unknotted) |
| Diameter Coil Spring: |
Adjustable |
Product Description

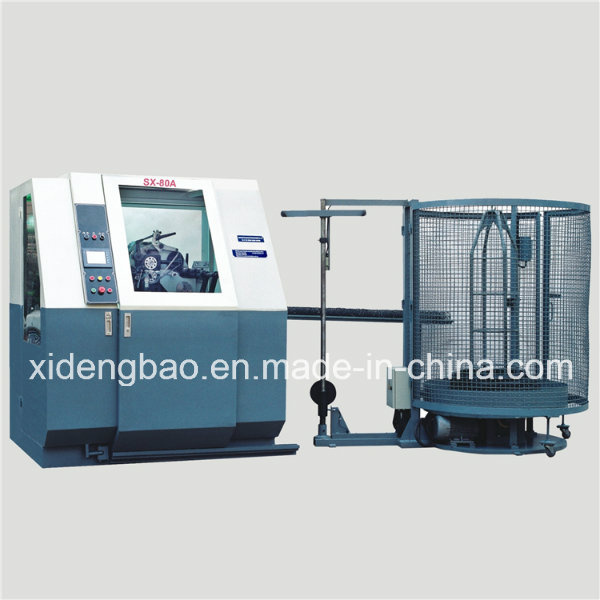

SX-80A High Speed LFK Spring Coiling Machine Product Description:
SX-80A High Speed LFK Spring Coiling Machine is an auto machine in making LFK mattress springs, lt combines coiling, end coil shaping ,heating and outputting total procedures in one machine.
SX-80A is our newest pivotal model for making LFK mattress spring units. The speed is at 80 springs one minute,The coiler SXF-80A utilizes a fully integrated computerized Programmable logic controller (PLC) and servo control system. All machine functions include wire feeding length, coil shaping, heat treatment, lubrication and self-protecting are automatically controlled.
Both the electrical parts and the structure of the machine are up to the CE. so that it is more safe and user-friendly.
Technical characteristics:
1. High capacity with minimum space requirements - up to 38'000 LFK Springs / 8 hours.
2. Rapid change-over.
3. Easy operation and short training period thanks to clearly structured concept with integrated control unit.
4. Works without compressed air.
5. Top quality and easy of use.
6. Easy maintain with low noisy.
Technical Specification:
| Spring Type | LFK |
| Production Speed | 80 Springs/Minute (adjustable) |
| Spring End Ring | 60-65mm |
| Steel Sire Gauge | 1.9-2.0mm |
| Spring Height | 150-160mm |
| Convolution | 5-6 turns |
| Main Drive Power | 4KVA |
| Swift Frame Power | 2.2KVA |
| Heat Treatment | 10KVA |
| Power Requirement | 380V/220V 50HZ/60HZ |
| Machine weight | 2800KG |

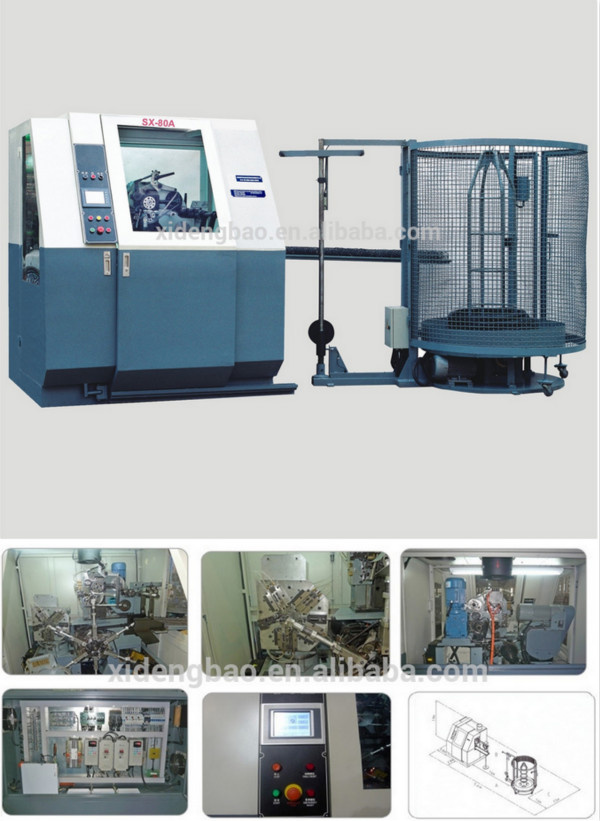

Product Pictures:
